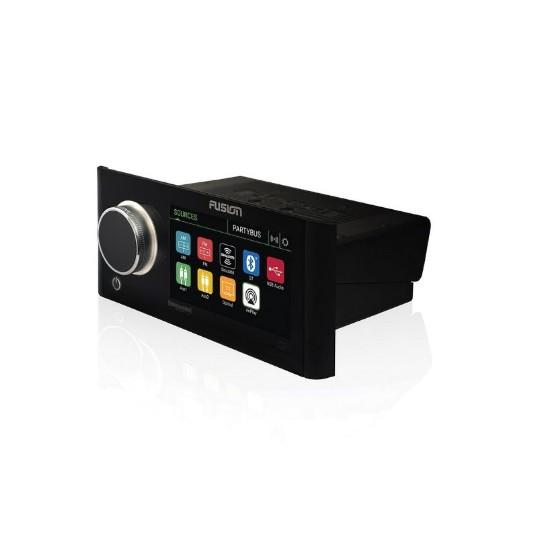

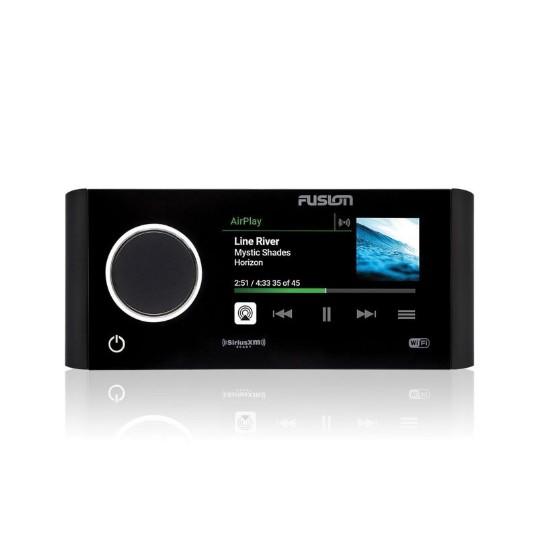

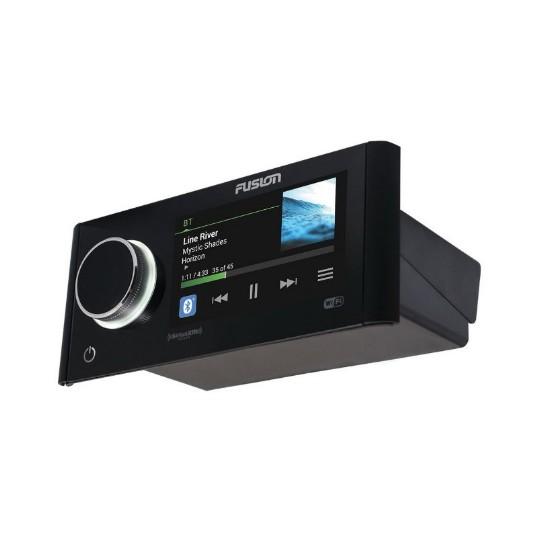

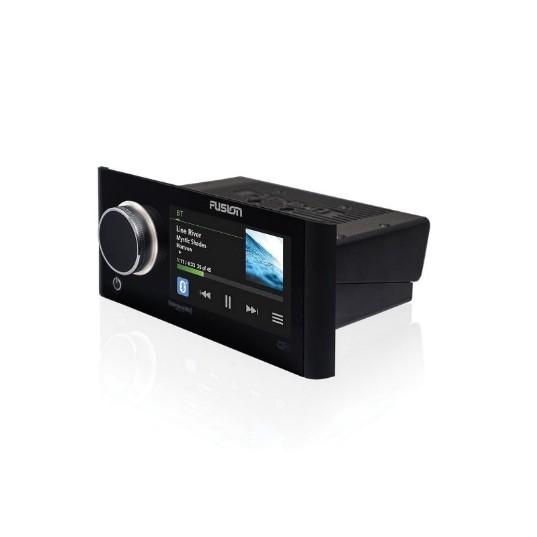

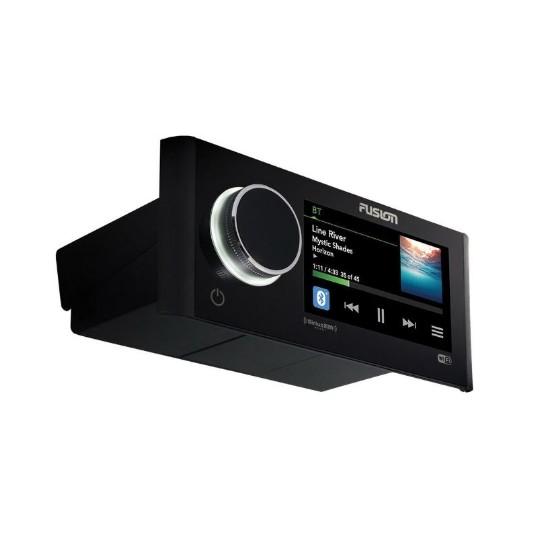

FUSION Apollo MS-RA770 Marine Stereo with Built-in WiFi
The FUSION Apollo MS-RA770 is a 4.3-inch touchscreen marine stereo with built-in Wi-Fi, Apple AirPlay 2, and a Fusion-Link Wired NMEA 2000 certified connection — the first marine stereo to combine a touchscreen with onboard Wi-Fi audio streaming. Marine technicians and boat owners install the unit at helm dash positions on power and sail vessels requiring multi-zone audio control.
Technical Specifications
| Display | 4.3 in optically bonded capacitive touchscreen glass LCD |
|---|---|
| Peak Power Output | 280 W |
| Amplifier Class | Class-D (internal) |
| Audio Zones | Up to 4 independent zones |
| Bluetooth Range | 30 ft (10 m) |
| Water Resistance | IPX6 and IPX7 rated front panel |
| Weight | 4 lbs (1.81 kg) |
| Dimensions | 7.56 x 3.23 x 4.7 in (192 x 82 x 119 mm) |
| Included Accessories | Mounting gasket, four 8-gauge self-tapping screws, two screw covers, power and speaker wiring harness, auxiliary-in / line-out / subwoofer-out wiring harnesses, 6 ft (2 m) NMEA 2000 drop cable, dust cover |
Compatibility & Applications
- Wires to NMEA 2000 networks as a Fusion-Link certified product for MFD audio control.
- Pairs with compatible Garmin chartplotters and fishfinders for on-screen track and volume management.
- Connects to Fusion NRX series wired remote controls over a powered NMEA 2000 network for zone-level control.
- Pairs wirelessly with additional Fusion PartyBus-enabled stereos for synchronized multi-unit audio across a vessel.
- Mounts flush at helm dash positions on center consoles, sportfish boats, sailboats, and yachts requiring a front-panel installation.
- Accepts SiriusXM via optional Connect vehicle tuner (USA), DAB+ (Europe and Australia), AM/FM, USB, AUX ×2, digital optical, UPnP, and MTP sources.
When connected to a NMEA 2000 network with a speed sensor, the MS-RA770 automatically adjusts output volume relative to vessel speed using speed over ground, speed through water, engine RPM, or wind speed as the source signal — a hardware-level integration not present on non-networked marine stereos. The front panel carries both IPX6 and IPX7 ratings and has been tested against salt fog, UV, temperature variation, and vibration.
