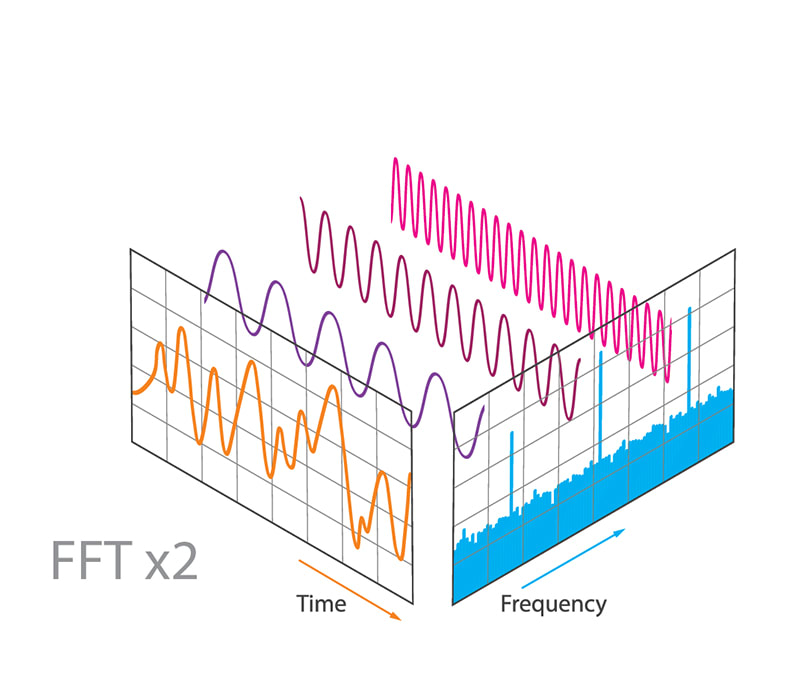

Conduct dual FFT measurements of up to 5 simultaneous transfer functions with precise displays of magnitude (frequency response), phase, impulse response (delay) and coherence (noise immunity).

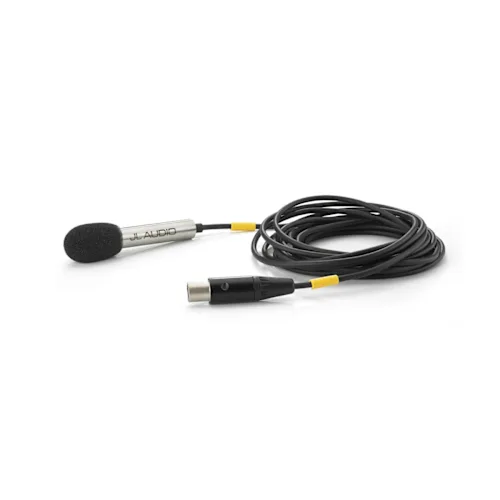

Up to 5 included microphones can be multiplexed to conduct single FFT measurements of level and frequency response (real-time audio (RTA) and spectrograph).

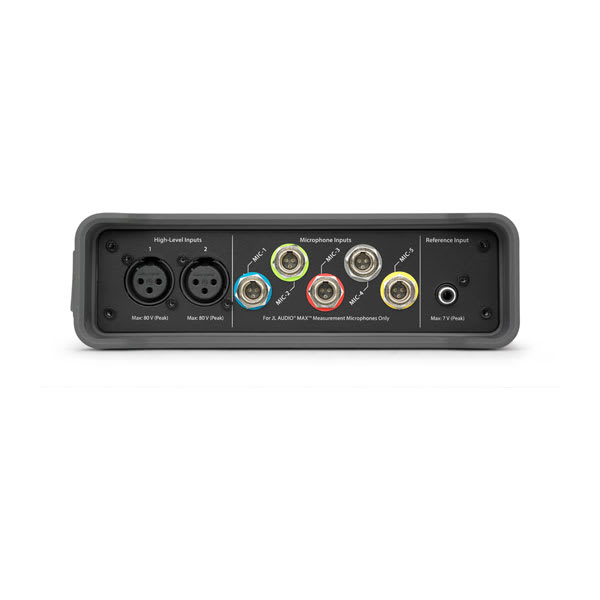

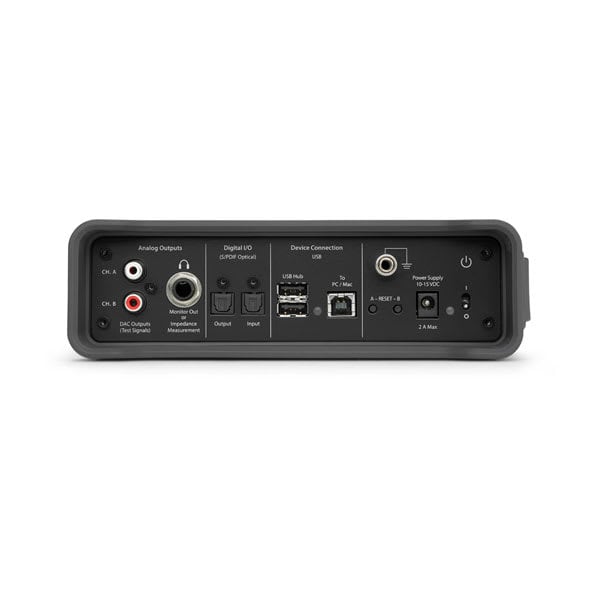

Put it all together with the inputs you need — including up to 5 microphones plus high-level analog signals (up to 80 volts), low-level analog signals (up to 7 volts) and optical digital signals (S/PDIF).

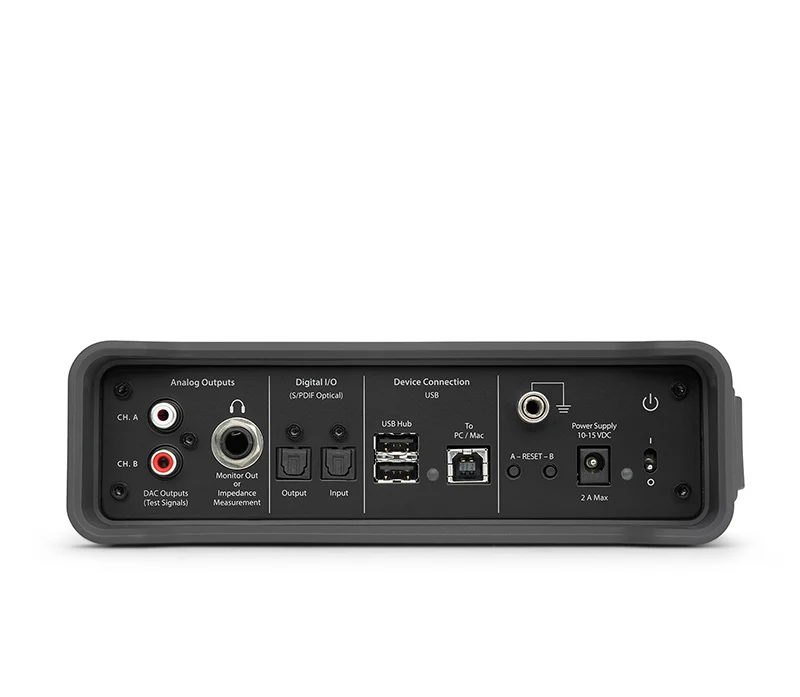

Built-in digital-to-analog conversion feeds analog line level outputs and headphone outputs plus optical digital output (S/PDIF).

For VXi and MVi amplifier users, the MAX audio measurement system offers full integration of amp DSP controls to streamline setup of measurements with one computer and one software application: TüN 4.

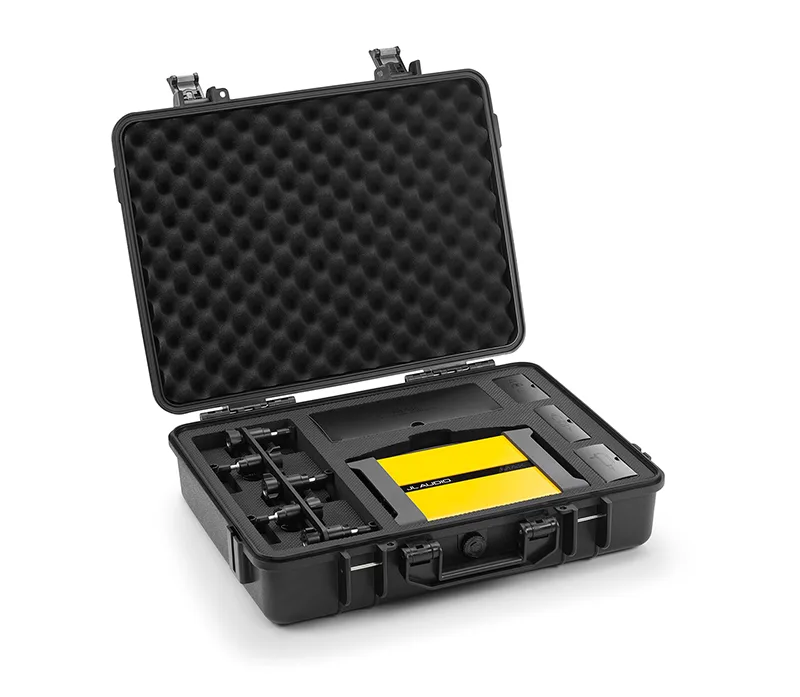

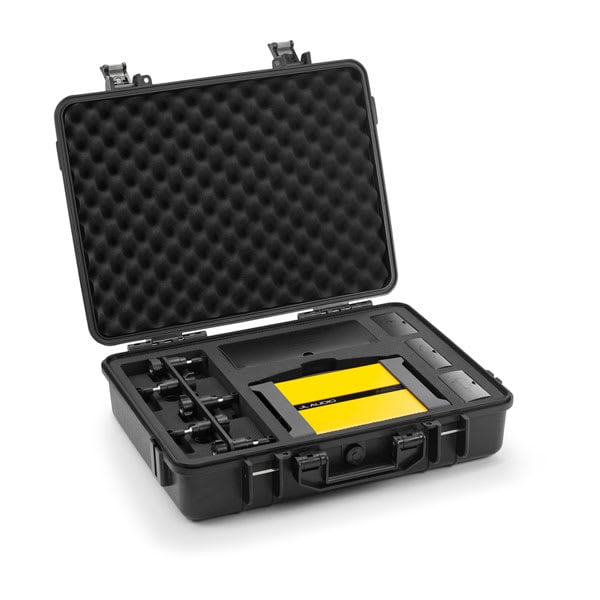

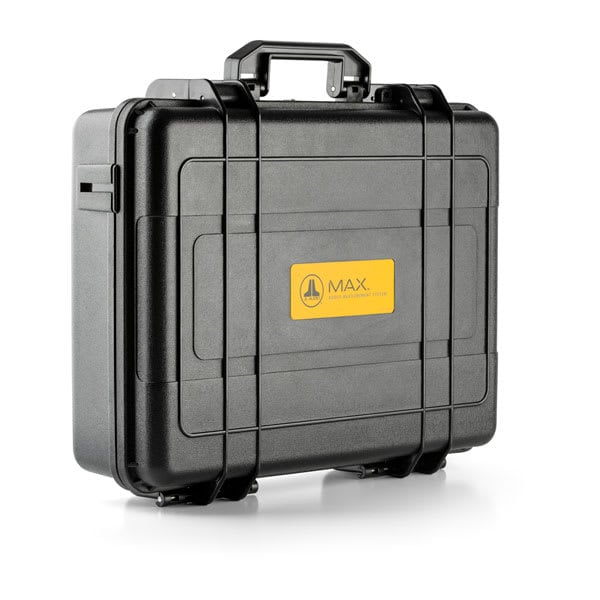

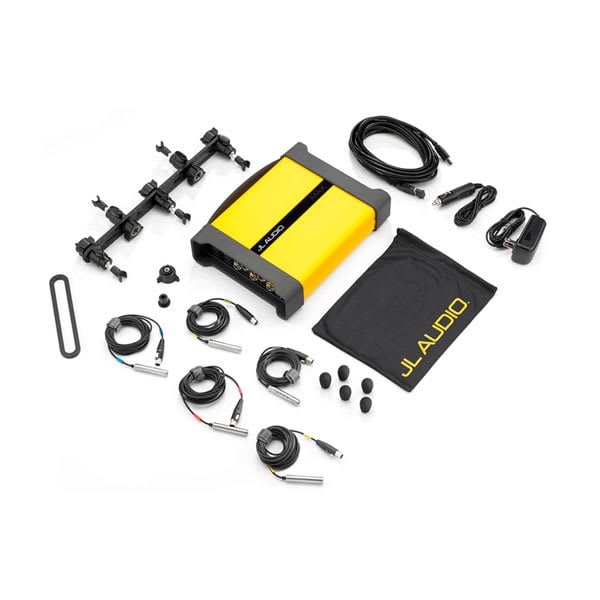

All hardware, mounting accessories and cables fit in a lockable, water-resistant hard case. An optional probe kit for impedance and electrical measurement is sold separately.

Set VXi/MVi channel delays in a flash — far more accurately than any other method.

To simplify EQ, this feature sets VXi/MVi parametric EQs to your selected target in seconds.

Perform precise manual EQ adjustments with real-time visual feedback.

MAX provides an input signal for testing — plus WAV file playback capability.

Test room modes for subwoofer placements, and adjust crossover and phase controls.

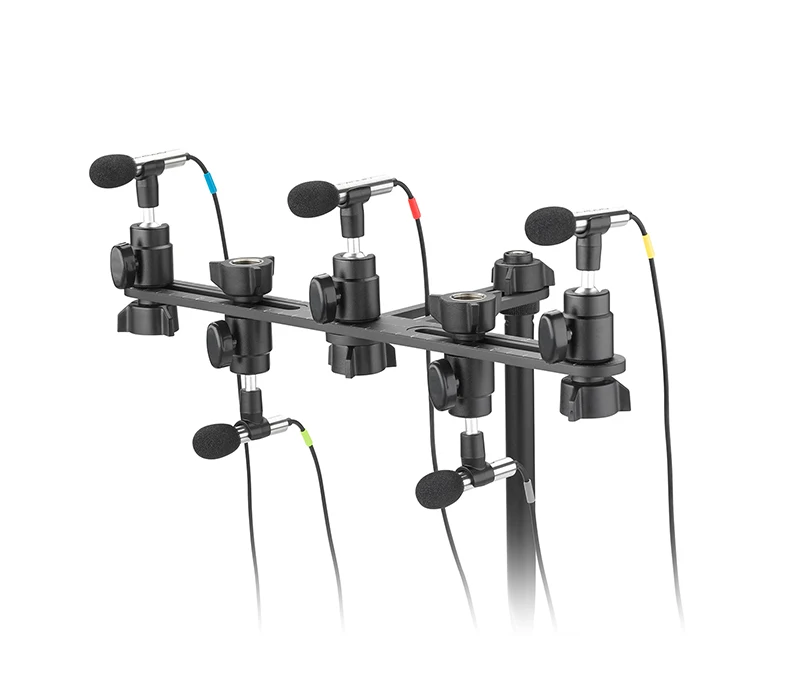

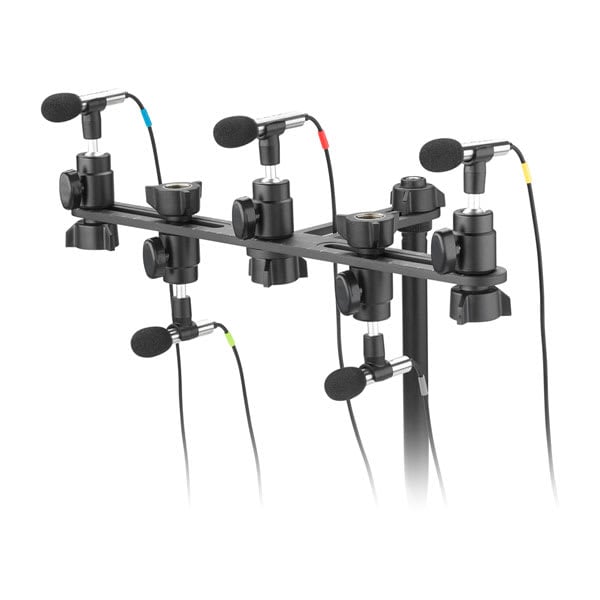

Mic array and TüN software work to streamline tuning of car audio DSP products.

Evaluate individual or multiple zones in an audio installation for frequency response and level.

RTA measurements can be captured for later viewing and data analysis.
