AIRMAR® SS60 – Fishing & Sonar | Marine Overhauling Florida
Click to enlarge

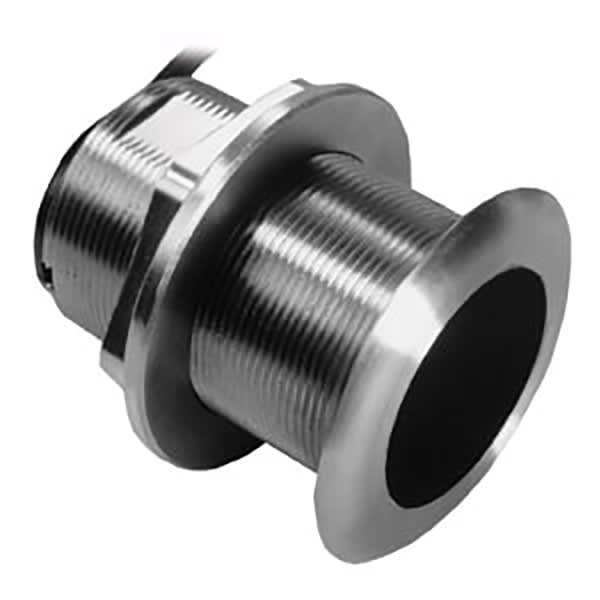

AIRMAR® SS60

SKU: N/A

The AIRMAR® SS60 (0° Tilt) stainless steel transducer is excellent for fiberglass and wood hulls and has a depth of 800 to 1,200 ft.

$529.99

Option
★★★★★ 5.0 rated on Google (21 reviews) · ✓ 30-day returns · ✓ Secure payment by Stripe

We sell it. We install it.

Professional marine electronics installation available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing
  • Ships from Pompano Beach, FL, United States.
  • Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
  • Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
  • Product images and specifications are supplied by the manufacturer.
Shipping & returns policy
Compare
Add to wishlist
0 People watching this product now!

Payment Methods:

The AIRMAR SS60 is a stainless steel thru-hull transducer with Airmar’s Tilted Element design, which corrects for hull deadrise up to 24 degrees. It is a 600 W, 50/200 kHz dual-frequency transducer with depth and fast-response water temperature sensing, and its low-profile housing extends only 5 mm (3/16 in) below the hull.

  • Frequency: 50/200 kHz
  • Power: 600 W
  • Beamwidth: 45°/12°
  • Maximum depth: 366 m (1200 ft) low frequency, 213 m (700 ft) high frequency
  • Housing: Stainless steel, all hull materials
  • Maximum deadrise: Up to 24°
  • Weight: 1.4 kg (3 lb)

Technical Specifications

Weight 3.00 lbs
Weight3 lbs
Dimensions3.3 × 3.75 × 2.7 in
Power Output600 W
Frequency50/200 kHz
Depth Range800–1,200 ft (243–366 m)
Mounting StyleThru-hull
Cable Length10 m (32.8 ft)
Tilt Angle0°
MaterialStainless Steel
Operating Temperature Range-4 to 158 °F (-20 to 70 °C)
IP RatingIP68
CertificationsCE
Country of OriginUSA
Warranty2 years
Option0° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin, 20° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin, 12° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “AIRMAR® SS60”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

Description

The AIRMAR SS60 is a stainless steel thru-hull transducer with Airmar’s Tilted Element design, which corrects for hull deadrise up to 24 degrees. It is a 600 W, 50/200 kHz dual-frequency transducer with depth and fast-response water temperature sensing, and its low-profile housing extends only 5 mm (3/16 in) below the hull.

  • Frequency: 50/200 kHz
  • Power: 600 W
  • Beamwidth: 45°/12°
  • Maximum depth: 366 m (1200 ft) low frequency, 213 m (700 ft) high frequency
  • Housing: Stainless steel, all hull materials
  • Maximum deadrise: Up to 24°
  • Weight: 1.4 kg (3 lb)

Technical Specifications

Weight 3.00 lbs

Specification

Overview

Weight3 lbs
Dimensions3.3 × 3.75 × 2.7 in
Power Output600 W
Frequency50/200 kHz
Depth Range800–1,200 ft (243–366 m)
Mounting StyleThru-hull
Cable Length10 m (32.8 ft)
Tilt Angle0°
MaterialStainless Steel
Operating Temperature Range-4 to 158 °F (-20 to 70 °C)
IP RatingIP68
CertificationsCE
Country of OriginUSA
Warranty2 years
Option0° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin, 20° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin, 12° Tilt Thru-Hull 600W, 50/200kHz Transducer – 8-Pin
