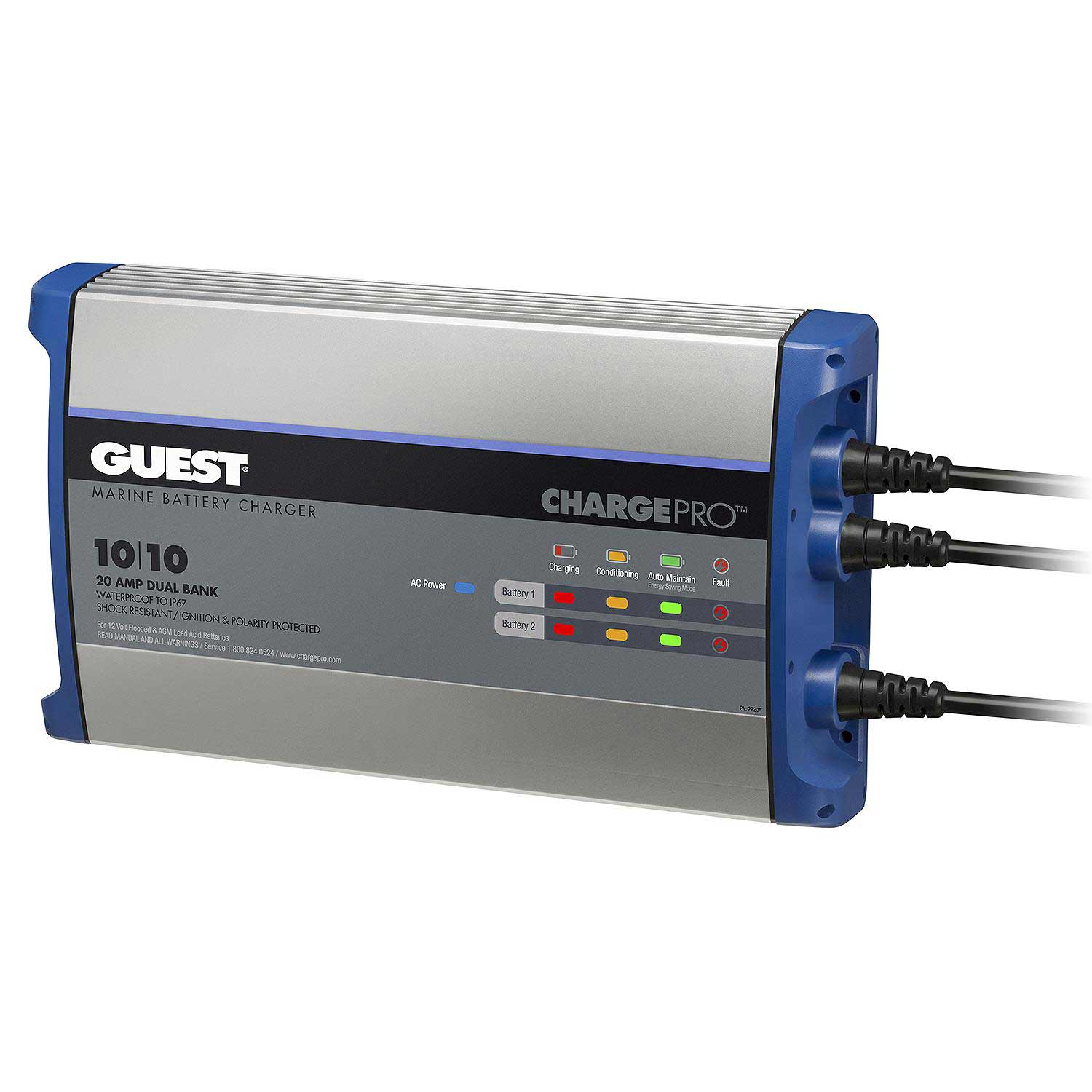

ChargePro™ Onboard Battery Chargers maximize individual battery performance, extend battery life and display battery status.
New technology: ChargePro™ Onboard Battery Chargers are new from the inside out, and deliver the latest battery maintenance technology, with leading advancements in digital charging technology, waterproof design and construction.

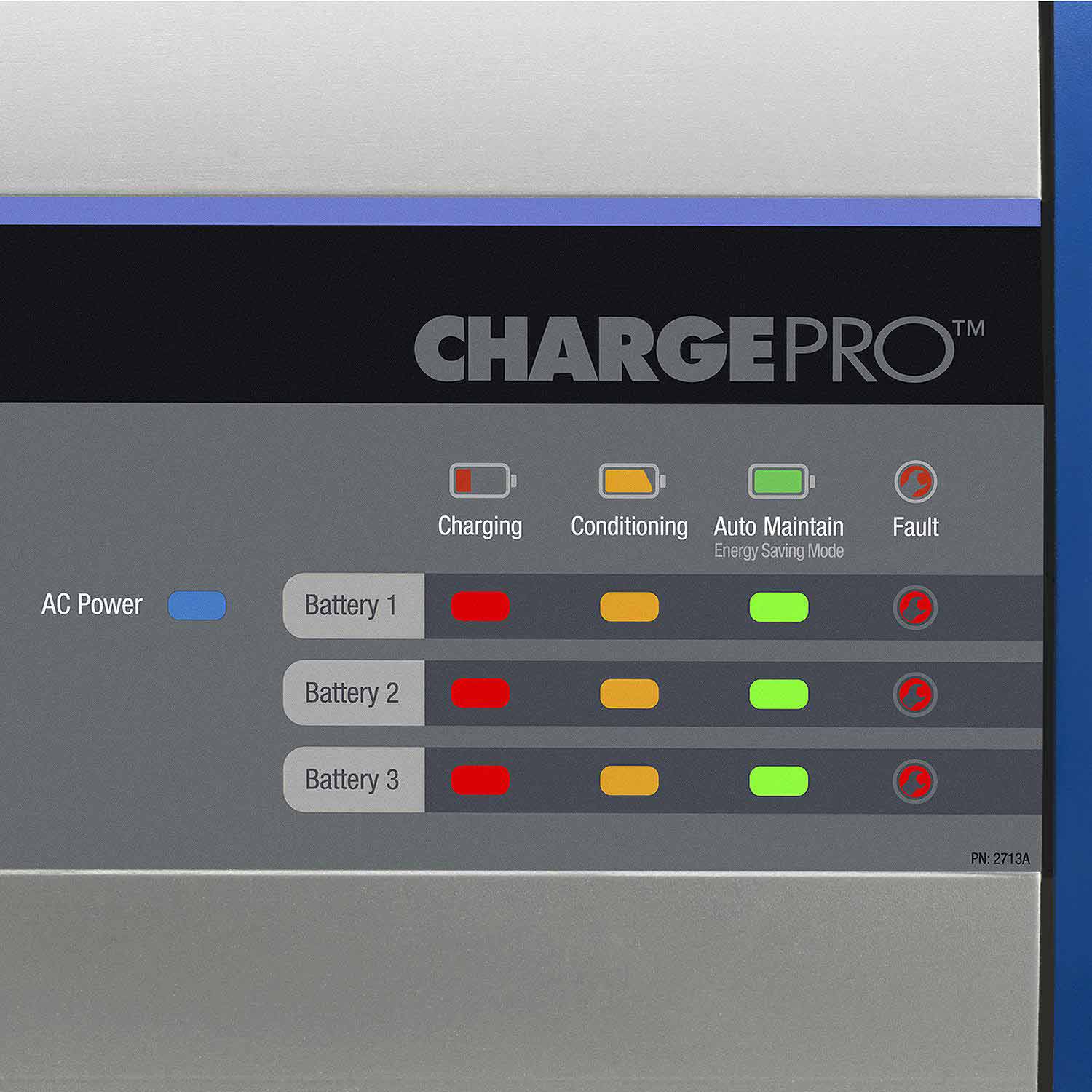

Individual sensing and control for every bank: Every Guest charger has individual dedicated battery charging, sensing and control for each bank, with easy-to-read graphics that indicate the status of each battery bank through the charging process.
Total waterproofing: ChargePro’s low profile flangeless extruded aluminum housing is sealed by gaskets with heavy duty end caps for 100 percent waterproof performance meeting the IP67 standards. This new construction design delivers an increase in charging and enhanced thermal management performance.
Light weight: The new ChargePro Series is up to 40% lighter while increasing durability and ease of installation over prior generations of the older technology epoxy filled plastic body chargers.
Key Features
- Two outputs, 10/10 amps per out
- All high frequency, digital charging technology
- Dedicated battery charging, sensing and control per bank
- 100 percent Waterproof (IP67) and shock resistant for all fresh and saltwater applications
- For all 12/24 volt flooded and AGM lead acid batteries
- Two-year warranty
Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
Technical Specifications
| Weight | 8.00 lbs |
|---|---|
| Dimensions (L × W × H) | 12.90 × 7.50 × 2.40 in |
From Our Pompano Beach Team
A 2-bank onboard charger like the ChargePro is the simplest way to keep a starting and a trolling battery topped off between trips — wired once, waterproof, with ignition and reverse-polarity protection. See more onboard battery chargers.
Frequently Asked Questions
What batteries does the ChargePro 20A 2-bank work with?
It maintains two 12V banks at 10 amps each and displays charge status per bank. Check your battery chemistry settings before first use or ask our team.
Can you install an onboard charger on my boat?
Yes — our marine electrical installation team in Pompano Beach, FL handles mounting, cabling and safe wiring to ABYC practices.
Is it really waterproof?
Yes, it is built for permanent onboard mounting in the bilge or battery compartment. Order online and we ship across the U.S., or pick it up at our store at 1831 NW 33rd St, Pompano Beach, FL. Need help deciding? Contact us.
