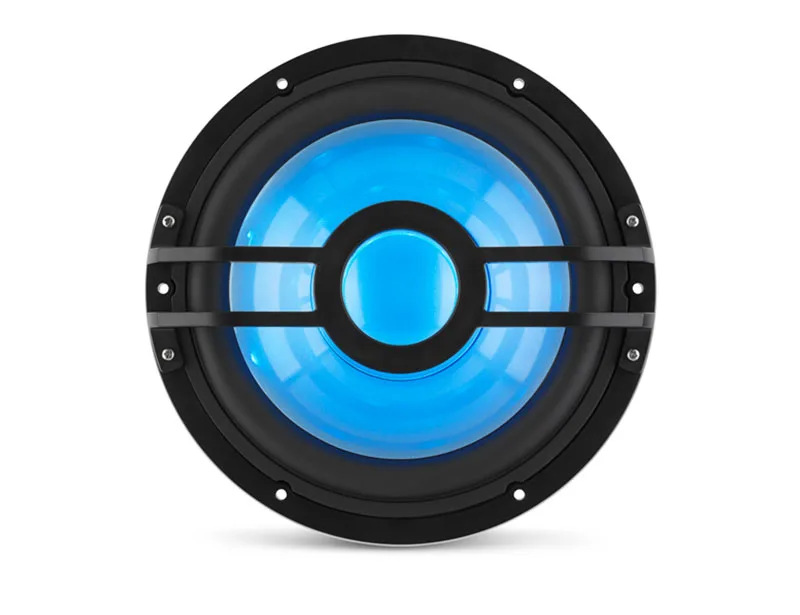

Clarion® CMSP Marine Subwoofer
$229.99
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
BIG BASS RESPONSE IN A COLORFUL PACKAGE
Get powerful bass with a splash of color on this 10-inch marine subwoofer.
MARINE SUBWOOFER
This 10-inch subwoofer features an injection molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.
RGB LED LIGHTING
Enhance your audio entertainment experience with bright and even LED illumination in a wide range of colors.
EXTRAORDINARY PERFORMANCE
A long-excursion, high-power handling design delivers low distortion and excellent low-frequency capability.
SALT AND SUN PROTECTED
Clarion subwoofers meet or exceed ASTM standards for salt-fog exposure as well as UV exposure. They feature marine-grade materials and finishes with corrosion-resistant connections and circuit boards.

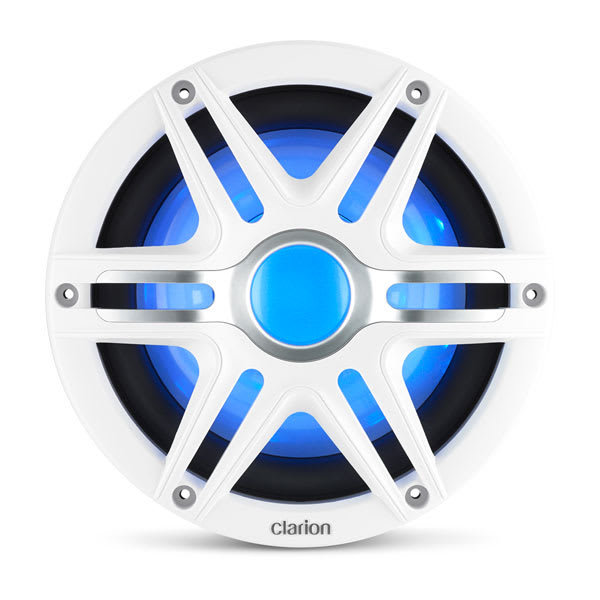

OPTIONAL GRILLE
Complete the look with an optional grille. Choose a white or metallic gray sport grille to match CMSP marine speakers.
Additional information
| Sizes | 10" |
|---|---|
| Color | Black |
| Physical dimensions (Diameter) | 10.57" (269 mm) (without grille) |
| Physical dimensions (Depth) | 5.16" (131mm) |
| Weight | 10.69 lbs (4.85 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 250 W |
| LED lighting | yes – RGB |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 220 mA |
| Cone material | Injection-molded, polypropylene |
| Mounting depth clearance | 5.16" (131 mm) |
| Mounting hole | 8.75" (222 mm) |
| Bolt hole circle | 9.72" (247 mm) |
| Free Air Resonance (FS) | 2 Ω: 44.81 Hz4 Ω: 47.15 Hz |
| Electrical “Q” (Qes) | 2 Ω: 0.8324 Ω: 1.005 |
| Mechanical “Q” (Qms) | 2 Ω: 11.4104 Ω: 11.532 |
| Total “Q” (Qts) | 2 Ω: 0.7754 Ω: 0.925 |
| Equivalent Compliance (Vas) | 2 Ω: 0.87 cu ft (24.77 L)4 Ω: 0.88 cu ft (24.93 L) |
| Effective piston area (SD) | 2 Ω: 48.67 in² (0.0314 m²)4 Ω: 48.67 in² (0.0314 m²) |
| DC resistance (RE) | 2 Ω: 2.180 Ω4 Ω: 4.080 Ω |
| Brand | Garmin |
General
| Sizes | 10" |
|---|---|
| Color | Black |
| Physical dimensions (Diameter) | 10.57" (269 mm) (without grille) |
| Physical dimensions (Depth) | 5.16" (131mm) |
| Weight | 10.69 lbs (4.85 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 250 W |
| LED lighting | yes - RGB |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 220 mA |
| Cone material | Injection-molded, polypropylene |
| Mounting depth clearance | 5.16" (131 mm) |
| Mounting hole | 8.75" (222 mm) |
| Bolt hole circle | 9.72" (247 mm) |
| Free Air Resonance (FS) | 2 Ω: 44.81 Hz4 Ω: 47.15 Hz |
| Electrical “Q” (Qes) | 2 Ω: 0.8324 Ω: 1.005 |
| Mechanical “Q” (Qms) | 2 Ω: 11.4104 Ω: 11.532 |
| Total “Q” (Qts) | 2 Ω: 0.7754 Ω: 0.925 |
| Equivalent Compliance (Vas) | 2 Ω: 0.87 cu ft (24.77 L)4 Ω: 0.88 cu ft (24.93 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 2 Ω: 0.39" (10 mm)4 Ω: 0.39" (10 mm) |
| Effective piston area (SD) | 2 Ω: 48.67 in² (0.0314 m²)4 Ω: 48.67 in² (0.0314 m²) |
| DC resistance (RE) | 2 Ω: 2.180 Ω4 Ω: 4.080 Ω |
- One 10" Marine subwoofer
- 6" waterproof 4-pin LED harness
- Six 1-3/8" stainless steel screws
- One 0.250" female crimpable connectors
- One 0.185" female crimpable connectors
- Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
