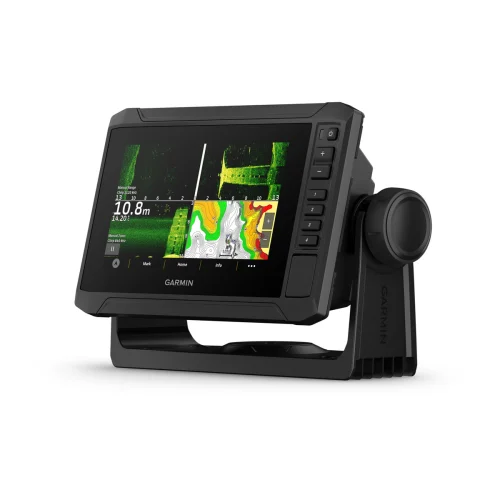

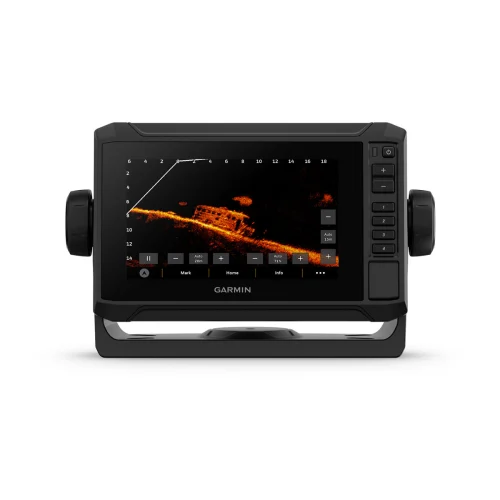

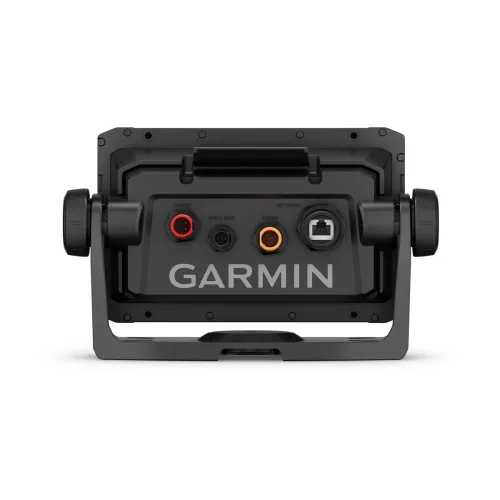

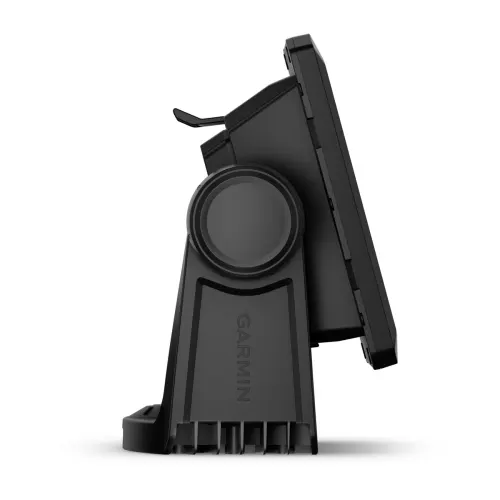

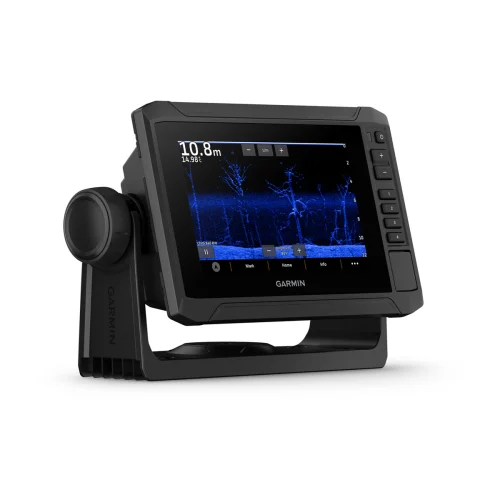

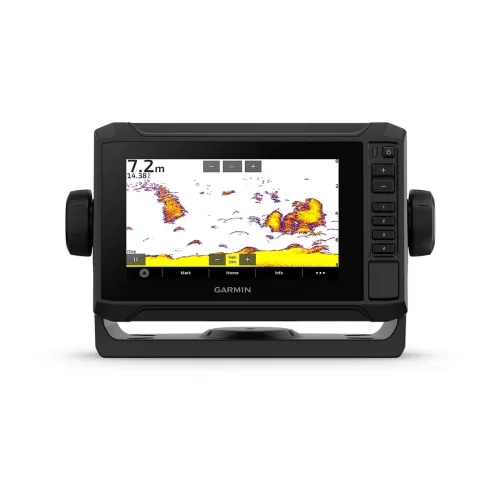

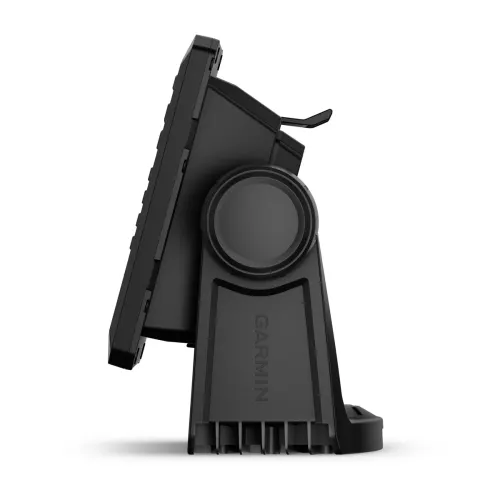

The Garmin ECHOMAP UHD2 6 in sv is a touchscreen chartplotter and fishfinder with Ultra High-Definition ClearVü and SideVü scanning sonar built in. Garmin part number 010-02679-00 is the 62sv without transducer, with a worldwide basemap; the 63sv and 64sv versions come with Garmin Navionics+ inland or coastal charts.
- Display: 6 in, 800 x 480 pixels, touchscreen with keyed assist
- Built-in sonar: CHIRP traditional plus Ultra High-Definition ClearVü and SideVü (transducer sold separately on the 62sv without transducer)
- Live sonar: supports LiveScope
- Trolling motor: wireless connection to Garmin Force trolling motors
- Memory card: 1 microSD slot, 32 GB max
- Connectivity: NMEA 2000, Garmin Marine Network, Wi-Fi with the ActiveCaptain app
- GPS: multi-band, up to 5,000 waypoints
- Power input: 9 to 18 V DC
- Water rating: IPX7
Garmin’s installation instructions note that the ECHOMAP UHD2 sv is not compatible with Garmin radar devices.
Technical Specifications
| Weight | 2.20 lbs |
|---|---|
| Dimensions (L × W × H) | 8.56 × 5.62 × 3.19 in |
