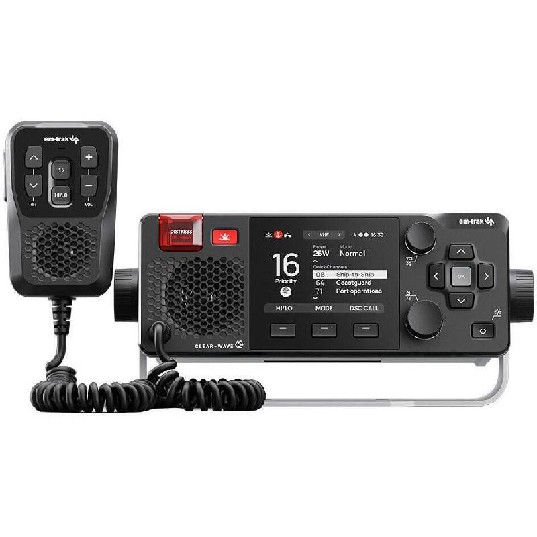

The X100 defines a new horizon of functionality, performance, and convenience in marine radio communications and navigation safety. Integrated DSC/VHF radio and high-powered AIS Class B combine with a range of innovative functionalities that make your boating safer and more convenient.
Features:
- Certified Class DVHF/DSC marine radio with a full feature globally certified Class D VHF/ DSC radio
- Ruggedized, water and weather-proof
- CLEAR-WAVE digital audio processing
- The full-color direct-sunlight visible display
- WiFi and Bluetooth
- NMEA2000 and NMEA0183
- Integrated GPS (external antenna optional, sold separately)
- High-powered AIS that receives and transmits. Integrated navigation alerts allow you to go silent and stop transmitting when you want
- Integrated zero-loss VHF antenna splitter – only one antenna is required for both AIS and VHF
- Ergonomic intuitive controls and UI
- Flush, desktop, ceiling mounting options
- Powerful and free CONNECT-X app – wirelessly connect up to 10 mobile devices and turn them into full-function mobile radio command mics allowing you to manage communication, navigation, and emergency functions from anywhere onboard
- Respond immediately to emergencies with instant MOB alerts and recovery locations, as well as CPA, anchor drift, and inbound DSC messages
- Maintain full control over VHF communications from any location on the vessel
- Privately intercom crew and PA throughout the vessel and loudhail other vessels nearby
- Enable the MOB function and be alerted to any connected device that leaves the boat
Specifications:
- Dimensions (W x H x D): 9.8″ x 3.3″ x 6.4″ (249 x 84 x 162 mm)
- Weight: 1.5 lbs (700 g)
- RF Frequency range:
- TX: 156.025-161.425 MHz
- RX: 156.300-161.925 MHz
- DSC: 156.525 MHz
- AIS 1, 2: 161.975, 162.025 MHz
- Usable Channels: INT, USA, CAN, ATIS
- Power Supply: 9.6 – 31.2V DC
- Operating Temperature Range: -13° to 154° F (-25° to 68° C)
- Antenna Impedance: 50 Ohms
- Transmitter Output Power: VHF: 25W, 1W AIS: 5W
- Audio Output Power – Internal Speaker: 5W producing 81 dB @ 1 m
- External Speaker/Loudhailer: 15W
- NMEA 0183/NMEA 2000: Ed 3.101
- Wireless LAN Standards: IEEE802.11 b/g/n
- Authentication and Encryption: WEP (64/128 bit), WPAPSK (TKIP), WPA2-PSK (AES)
- Bluetooth: 4.2 classic and low energy (BLE)
- AIS Class B SOTDMA Certification: I EC 62287-2:2017
- DSC/VHF Certification: EN 301025 v2.2.1 and IEC 62238
- NMEA Certification: IEC 61162-1 and IEC 61162-3
- Environmental Certification: IEC 60945 “Exposed” + IEC 60529 IP66
Technical Specifications
| Weight | 1.54 lbs |
|---|---|
| Dimensions (L × W × H) | 9.84 × 3.31 × 6.38 in |
