Fusion® Signature Series 3 Marine Speakers

SKU: 010-02432-00
In Stock

$369.99

  Ask a Question

Fusion Signature Series 3 Marine Speakers deliver unparalleled performance – even when exposed to harsh marine environments.

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Equipment + Installation chat with an expert

We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat

Available for Store Pickup!

Guaranteed Fitment.

Always the correct part

Installation

Easy Returns.

Quick & Hassle Free

Category:
Brand:

Description

EXPERIENCE THE POWER OF MUSIC

Pushing the boundaries of what is possible on the water, the new revamped Signature Series 3 marine speakers deliver unparalleled performance — even when exposed to harsh marine environments.

Experience industry-first marine speakers with CRGBW LED lighting1.
Enjoy greater sound definition and higher output with CURV® Cone Technology.
The silk dome tweeter provides a smooth upper frequency response and increased efficiency.
With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3.
The speakers are available in 6.5”, 7.7” and 8.8” designs with both classic and sports style grilles.
Engineered to last season after season, the speakers include a supported 3-year warranty.

DESIGNED AND ENGINEERED TO
TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion®, the Signature Series 3 speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY
WITH ISO12216

Tested to international standards for pressure and watertightness, the Signature Series 3 speakers are designed and built to the highest industry standards for quality and robustness.

THE FINEST MATERIALS AND ACOUSTIC ENGINEERING

The Signature Series 3 speakers incorporate premium materials and marine-specific design elements. This communicates not only their premium aesthetics but also their ability to reproduce high-quality audio while out on the water.

CURV CONE TECHNOLOGY

CURV is a woven fiber composite that is heat pressed to form a lighter and stronger cone. This delivers greater sound definition and higher output while providing increased protection from marine conditions.

SILK DOME TWEETER

The silk dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.

LARGE-DIAMETER VOICE COIL

Delivering an increase in real power and efficiency, the large-diameter voice coil provides a signature sound exclusive to the Signature Series 3 speakers.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide full protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

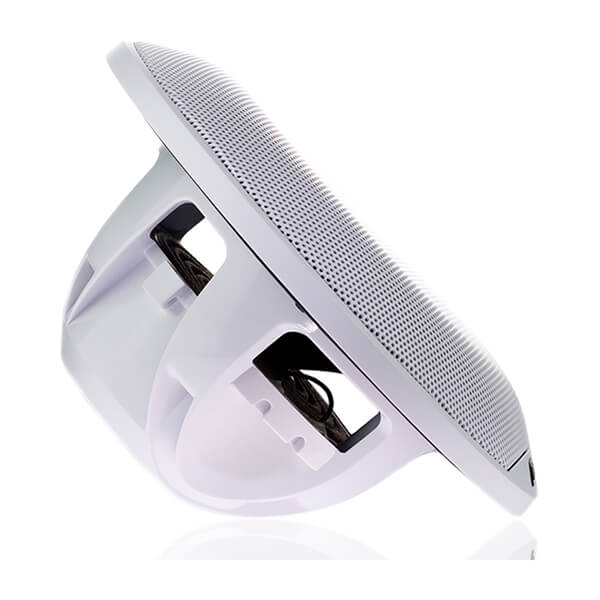

HIGH-GRADE BASKET CONSTRUCTION

The basket is constructed using high-grade engineered plastics to deliver unprecedented durability when exposed to the marine environment.

PREMIUM CRGBW LED LIGHTING

Industry-first marine speakers with CRGBW (cool white, red, green, blue, warm white) illuminate an unprecedented spectrum of colors — from premium pastels to vibrant hues — to enhance your audio entertainment experience.

CONTROLLING THE CRGBW LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-CRGBWRC wireless remote control (sold separately) or from a Garmin multifunction display via OneHelm™ integrated digital switching (lighting partner controller required).

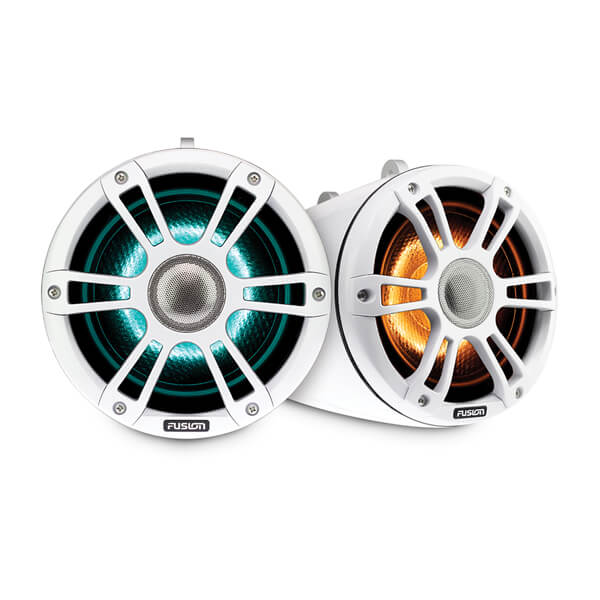

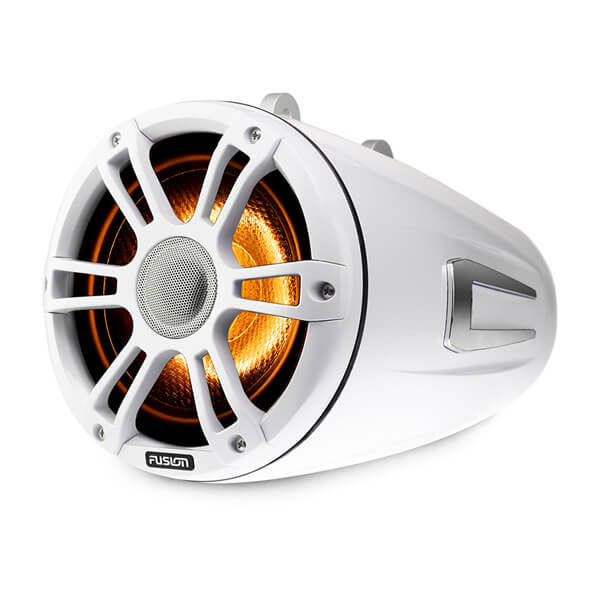

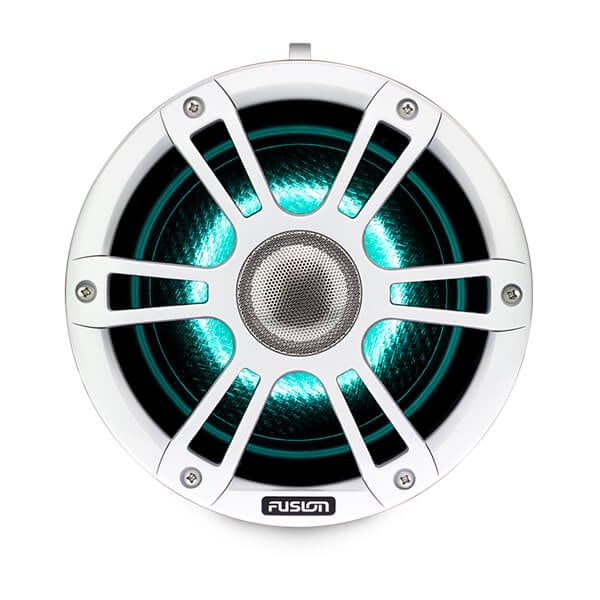

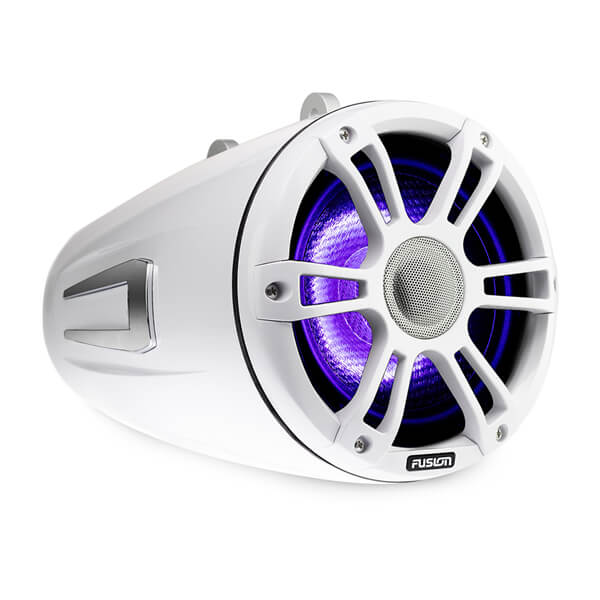

SPORTS WHITE SPEAKERS

The Signature Series 3 sports white speakers are available in 6.5”, 7.7” and 8.8” sizes and feature industry-first CRGBW LED lighting options.

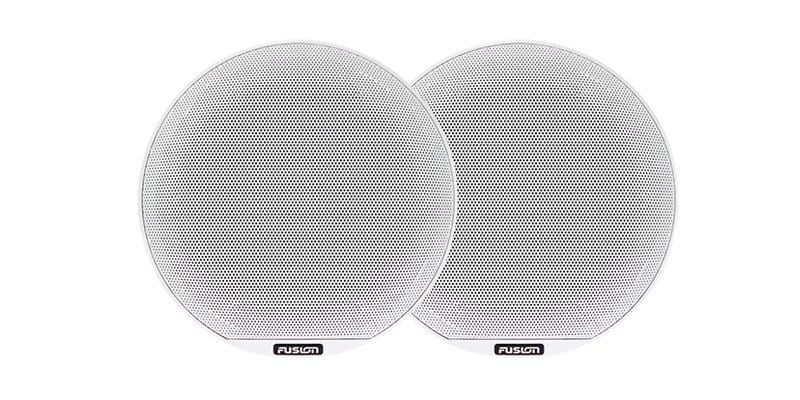

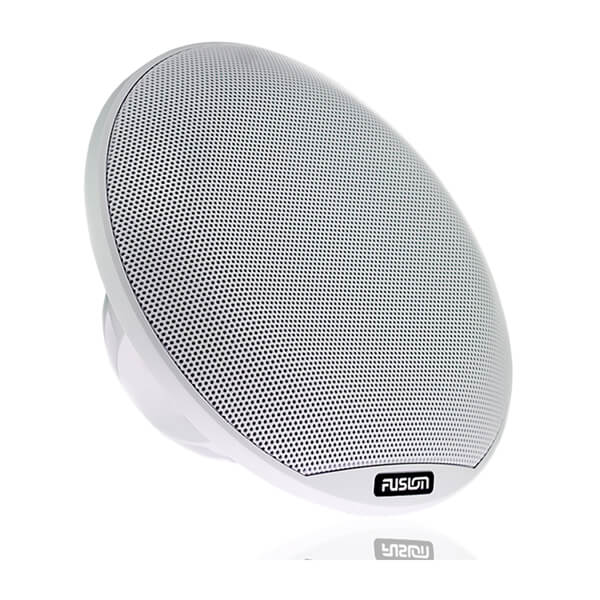

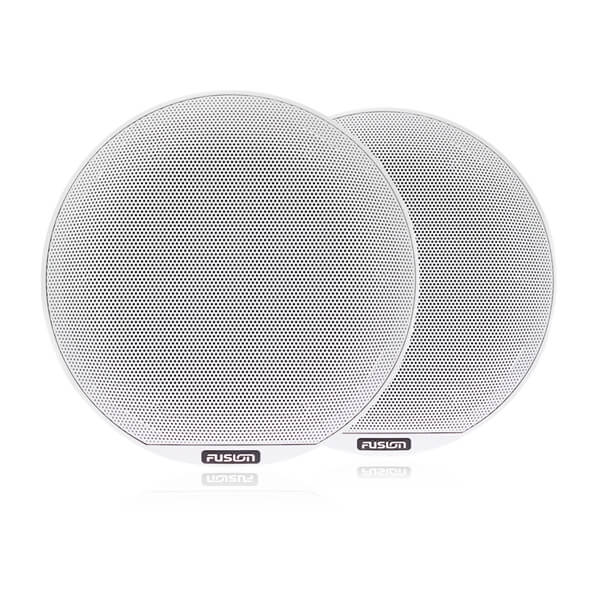

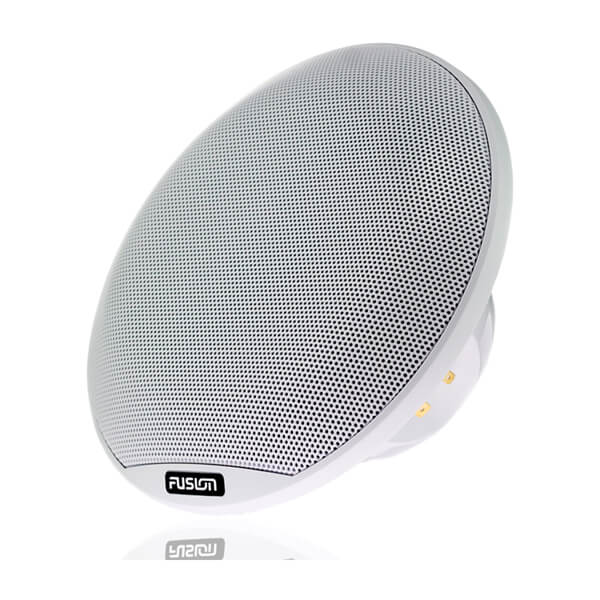

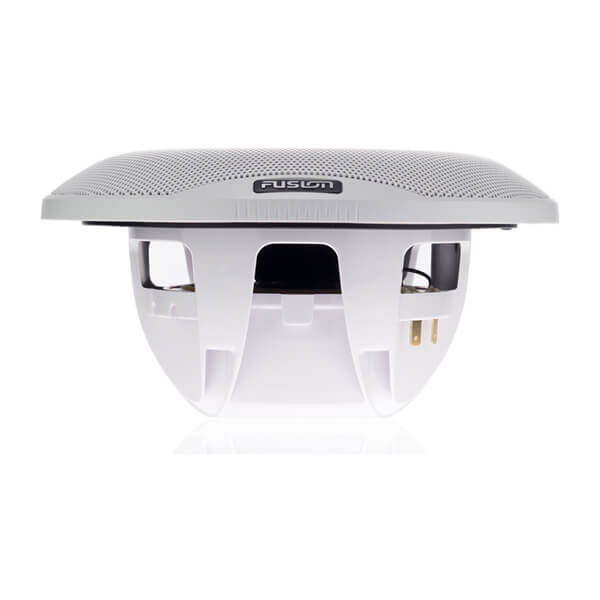

CLASSIC WHITE SPEAKERS

The Signature Series 3 classic speakers are available in 6.5”, 7.7” and 8.8” sizes and feature a timeless, elegantly styled perforated metal grille to blend with the aesthetics of your boat.

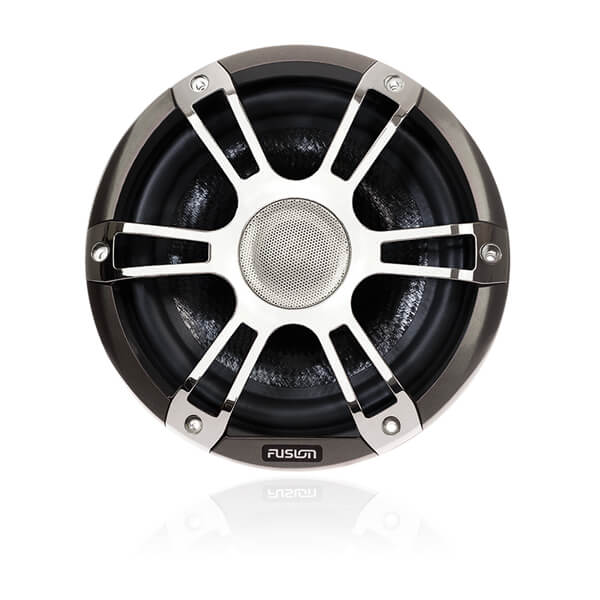

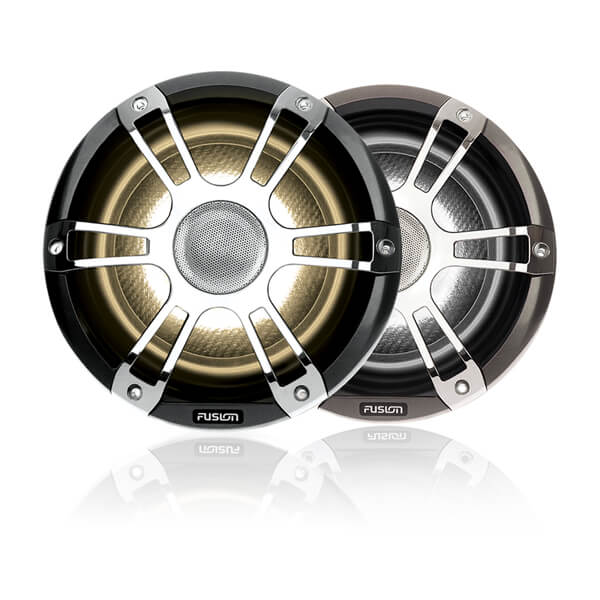

SPORTS CHROME SPEAKERS

The Signature Series 3 sports chrome speakers are available in 6.5”, 7.7” and 8.8” sizes and feature industry-first CRGBW LED lighting options.

Additional information

Physical dimensions (Diameter x Depth)

8.8" classic speaker: 9.75" x 5.19" (247 x 131.5 mm) 8.8" sports speaker: 8.82" x 5.24" (224 x 133 mm) 7.7" classic speaker: 8.66" x 4.31" (220 x 109.5 mm) 7.7" sports speaker: 7.72" x 4.31" (196 x 111 mm) 6.5" classic speaker: 7.87" x 4.06" (200 x 103 mm) 6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm)

Water and dust rating

IP65

Configuration

coaxial

Speaker size

SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8" SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7" SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5"

Peak power (Watts)

8.8" speaker: 330 W 7.7" speaker: 280 W 6.5" speaker: 230 W

RMS power (Watts)

8.8" speaker: 130 W 7.7" speaker: 100 W 6.5" speaker: 75 W

Sensitivity (1 W / 1 m)

8.8" speaker: 91 dB 7.7" speaker: 91 dB 6.5" speaker: 90 dB

Frequency response

8.8" speaker: 50 Hz – 20 kHz 7.7" speaker: 60 Hz – 22 kHz 6.5" speaker: 70 Hz – 22 kHz

Nominal impedance

4 ohms

LED lighting

yes – CRGBW (sports-style only)

LED Supply Voltage

10.8-16 VDC (sports-style only)

LED load current @ 14.4 VDC

300 mA (sports-style only)

Operating temperature range

32° to 122° F (0° to 50° C)

Voice coil diameter

8.8" speaker: 1.5" 7.7" speaker: 1.4" 6.5" speaker: 1.2"

Cone material

CURV cone with rubber surround

Tweeter type

Silk dome

Compass-safe distance

8.8" speaker: 162" (412 cm) 7.7" speaker: 141" (358 cm) 6.5" speaker: 122" (310 cm)

Warranty

3 years

Mounting diameter clearance

8.8" speaker: 7.44" (188 mm) 7.7" speaker: 6.14" (156 mm) 6.5" speaker: 5.35" (136 mm)

Mounting depth clearance

8.8" speaker: 4.13" (106 mm) 7.7" speaker: 3.39" (86 mm) 6.5" speaker: 3.11" (79 mm)

Port diameter

3" (76 mm)

Port length

8.8" speaker: 6.7" (170 mm) 7.7" speaker: 6.3" (160 mm) 6.5" speaker: 6.4" (162 mm)

Brand

Garmin

Reviews

There are no reviews yet.

Be the first to review “Fusion® Signature Series 3 Marine Speakers”

Your email address will not be published. Required fields are marked *

General

Physical dimensions (Diameter x Depth)8.8" classic speaker: 9.75" x 5.19" (247 x 131.5 mm) 8.8" sports speaker: 8.82" x 5.24" (224 x 133 mm) 7.7" classic speaker: 8.66" x 4.31" (220 x 109.5 mm) 7.7" sports speaker: 7.72" x 4.31" (196 x 111 mm) 6.5" classic speaker: 7.87" x 4.06" (200 x 103 mm) 6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm)
Water and dust ratingIP65
Configurationcoaxial
Speaker sizeSG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8" SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7" SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5"
Peak power (Watts)8.8" speaker: 330 W 7.7" speaker: 280 W 6.5" speaker: 230 W
RMS power (Watts)8.8" speaker: 130 W 7.7" speaker: 100 W 6.5" speaker: 75 W
Sensitivity (1 W / 1 m)8.8" speaker: 91 dB 7.7" speaker: 91 dB 6.5" speaker: 90 dB
Frequency response8.8" speaker: 50 Hz - 20 kHz 7.7" speaker: 60 Hz - 22 kHz 6.5" speaker: 70 Hz - 22 kHz
Nominal impedance4 ohms
Recommended amplifier power (RMS)8.8" speaker: 25 140 W/Ch 7.7" speaker: 25-120 W/Ch 6.5" speaker: 30-90 W/Ch
LED lightingyes - CRGBW (sports-style only)
LED Supply Voltage10.8-16 VDC (sports-style only)
LED load current @ 14.4 VDC300 mA (sports-style only)
Operating temperature range32° to 122° F (0° to 50° C)
Voice coil diameter8.8" speaker: 1.5" 7.7" speaker: 1.4" 6.5" speaker: 1.2"
Cone materialCURV cone with rubber surround
Tweeter typeSilk dome
Compass-safe distance8.8" speaker: 162" (412 cm) 7.7" speaker: 141" (358 cm) 6.5" speaker: 122" (310 cm)
Warranty3 years
Mounting diameter clearance8.8" speaker: 7.44" (188 mm) 7.7" speaker: 6.14" (156 mm) 6.5" speaker: 5.35" (136 mm)
Mounting depth clearance8.8" speaker: 4.13" (106 mm) 7.7" speaker: 3.39" (86 mm) 6.5" speaker: 3.11" (79 mm)
Sealed enclosure volume (fully filled with absorption material)8.8" speaker: 0.78 cubic ft (22 L) 7.7" speaker: 0.71 cubic ft (20 L) 6.5" speaker: 0.64 cubic ft (18 L)
Ported (vented) enclosure volume (lined with absorption material)8.8" speaker: 1.23 cubic ft (35 L) 7.7" speaker: 1.06 cubic ft (30 L) 6.5" speaker: 0.88 cubic ft (25 L)
Port diameter3" (76 mm)
Port length8.8" speaker: 6.7" (170 mm) 7.7" speaker: 6.3" (160 mm) 6.5" speaker: 6.4" (162 mm)
  • One pair of speakers (based on what you select)
  • Documentation
