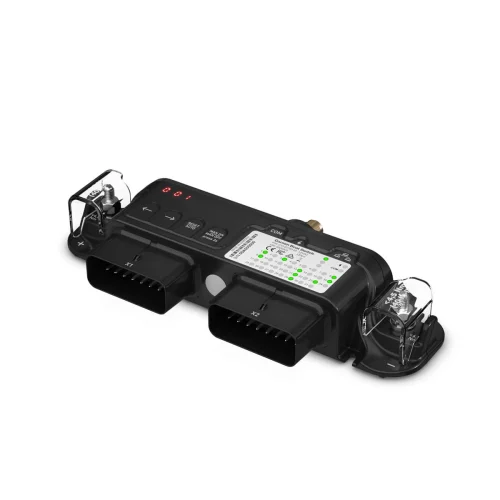

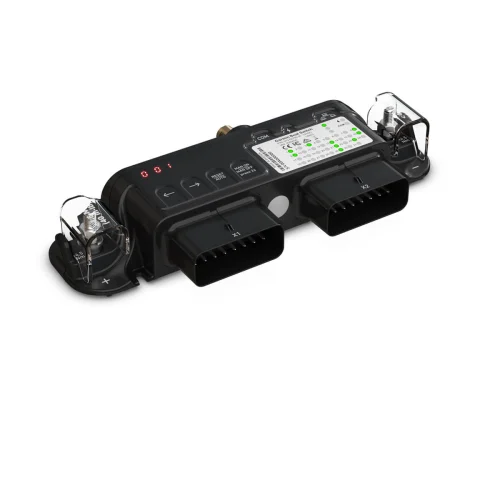

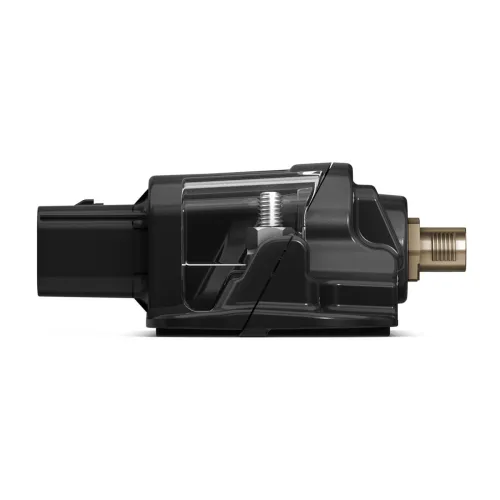

Garmin Boat Switch

SKU: 010-02735-00
In Stock

$999.99

  Ask a Question

Garmin Boat Switch provides an integrated-boat experience with digital switching to operate & monitor onboard electrical functions from your GPSMAP or ECHOMAP.

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Equipment + Installation chat with an expert

We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat

Available for Store Pickup!

Guaranteed Fitment.

Always the correct part

Installation

Easy Returns.

Quick & Hassle Free

Brand:

Description

QUALITY SWITCHING. SIMPLE INSTALLATION.

Get the integrated-boat experience with digital switching that allows you to operate onboard electrical functions right from your GPSMAP® or ECHOMAP™ chartplotter.

Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.
Operate lights, pumps, horn and more. Just tap your compatible chartplotter.
Fill up or empty out? See levels in four tanks — such as fuel, freshwater, graywater, blackwater and livewell.
See system status. Monitor battery voltage, bilge pump operation and more.
Set it up your way. Position and name switches with the easy-to-use interface.
Retrofit into your boat. It requires no special tools or configuration.

ALL-IN-ONE

Replace existing two-element systems — fuse box and switches — for easier control and operation of onboard functions.

DIGITAL CONTROL

Get control and protection of up to 20 circuits via your chartplotter rather than a physical button or switch.

ON/OFF SWITCHES

The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.

DIMMABLE OUTPUTS

Press-and-hold dimmers let you set your preferred brightness on board.

MOMENTARY OUTPUTS

Control horns and more. Simply press and release for desired length of horn beep.

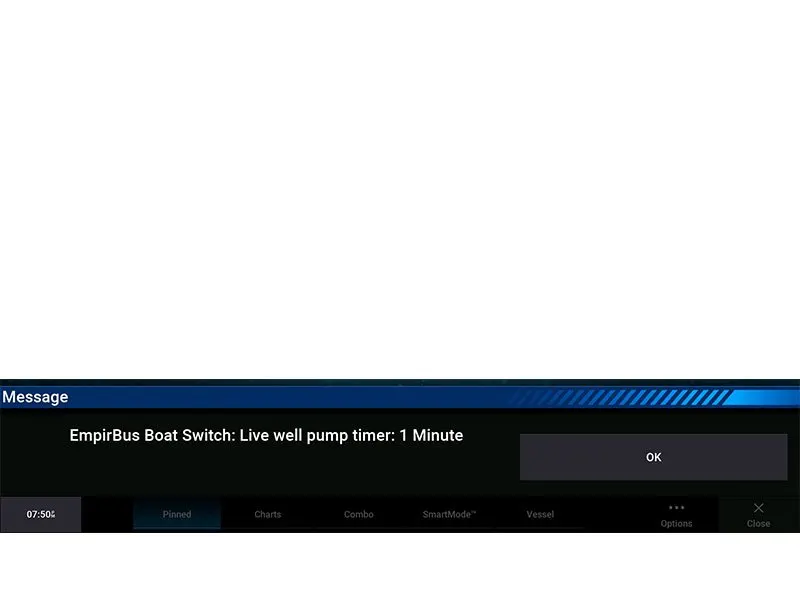

LIVEWELL TIMER

A built-in timer turns the pump to cycle the water to keep fish alive — and keep pumps functioning longer.

MONITOR TANKS

Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, graywater, blackwater and livewell.

ADDITIONAL INPUTS

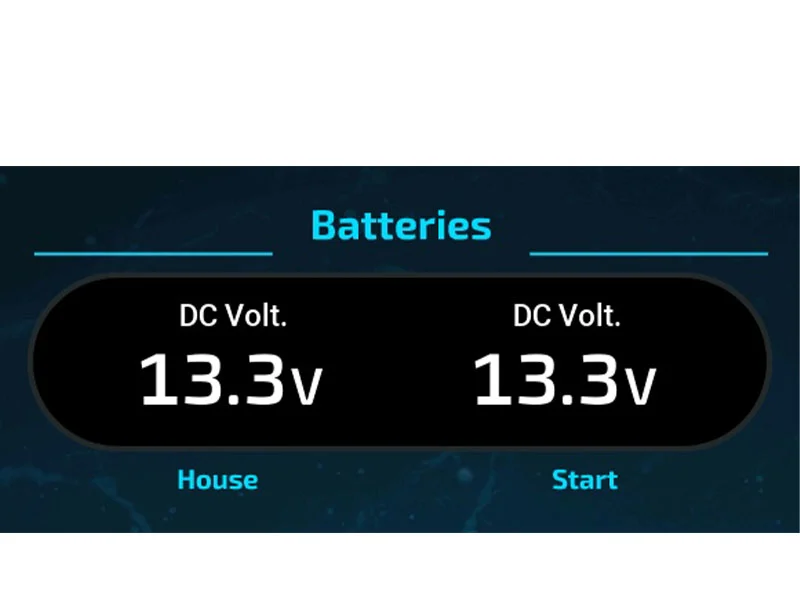

See analog voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.

UPGRADE YOUR BOAT

Retrofit into existing boats without special tools or configuration by using the included 18” flying leads and color-coded channel wires.

Additional information

Dimensions(WxHxD) (unit only)

9.1" x 4.2" x 1.5" (230 x 106 x 38 mm)

Weight (unit only)

14.1 oz (400 g)

Ambient temperature

-20° C to +55° C

Enclosure water rating

IP65

Communication

CAN-bus NMEA 2000® network, LEN-0

High side

13 ch 10A, 7 ch 5A

Ground contact switch input

15

Bilge pump monitor

2

Volt

3 @ 0-16 V +/-1%

Resistance

2 @ 0-1500 ohm +/- 5%

Maximum current

50A

Power off current consumption

60mA

Supply voltage (12V)

9-16VDC

NMEA 2000®

Micro 5-pin M12 male

Channels

Molex MX150 L 16 circuits

Power terminal

M6 bolt

Brand

Garmin

Reviews

There are no reviews yet.

Be the first to review “Garmin Boat Switch”

Your email address will not be published. Required fields are marked *

General

Dimensions(WxHxD) (unit only)9.1" x 4.2" x 1.5" (230 x 106 x 38 mm)
Weight (unit only)14.1 oz (400 g)
Ambient temperature-20° C to +55° C
Enclosure water ratingIP65
CommunicationCAN-bus NMEA 2000® network, LEN-0
High side13 ch 10A, 7 ch 5A
Ground contact switch input15
Bilge pump monitor2
Volt3 @ 0-16 V +/-1%
Resistance2 @ 0-1500 ohm +/- 5%
Maximum current50A
Power off current consumption60mA
Supply voltage (12V)9-16VDC
NMEA 2000®Micro 5-pin M12 male
ChannelsMolex MX150 L 16 circuits
Power terminalM6 bolt
  • Garmin Boat Switch

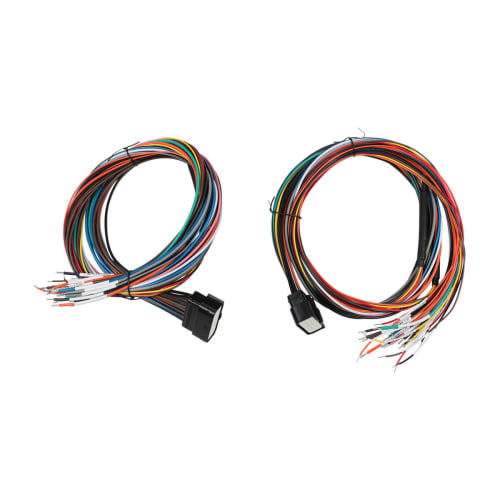

  • Garmin Boat Switch Harness X1
  • Garmin Boat Switch Harness X2
  • Installation instructions
  • Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
