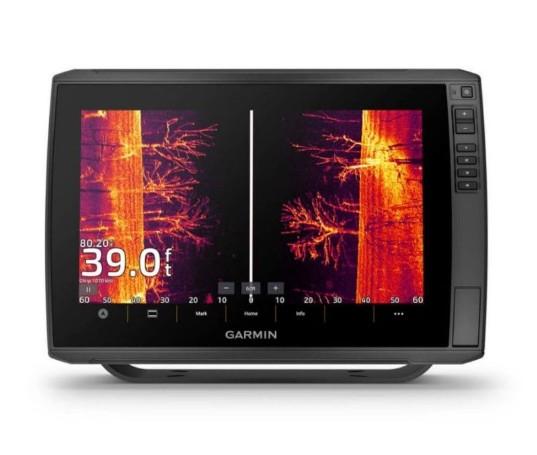

GARMIN ECHOMAP Ultra 2 12″ Chartplotter,126sv with GT56UHD-TM Transducer; Includes Garmin Navionics+| 010-02882-01 – Chartplotters & MFDs | Marine Overhauling Florida

GARMIN ECHOMAP Ultra 2 12″ Chartplotter,126sv with GT56UHD-TM Transducer; Includes Garmin Navionics+| 010-02882-01

Name: Garmin ECHOMAP Ultra 2 12" Chartplotter,126sv with GT56UHD-TM Transducer; Includes Garmin Navionics+| 010-02882-01
Brand: Garmin
SKU: GAREMULTRA2126SV/TM
Price: 3299.99 USD
Availability: InStock

SKU: GAREMULTRA2126SV/TM MFG#: EMULTRA2126SV/TM

GARMIN ECHOMAP Ultra 2 12″ Chartplotter,126sv with GT56UHD-TM Transducer; Includes Garmin Navionics+

$3,299.99

3 in stock

Item

Shipping

Total

Ships from Pompano Beach, FL. Rate shown is for Florida (1-2 business days); other states 1 to 7 business days, exact rate by ZIP at checkout.

★★★★★ 5.0 rated on Google (21 reviews) · ✓ 30-day returns · ✓ Secure payment by Stripe

We sell it. We install it.

Professional marine electronics installation available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing

Ships from Pompano Beach, FL, United States.
Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
Product images and specifications are supplied by the manufacturer.

Shipping & returns policy

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

ECHOMAP or STRIKER? Compare charts, sonar, touchscreen, NMEA 2000 and LiveScope support across Garmin STRIKER and ECHOMAP models in our Garmin STRIKER vs ECHOMAP guide.

General
DIMENSION	13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm)
WEIGHT	5.5 lbs (2.5 kg)
WATERPROOF	IPX7
TOUCHSCREEN	√
DISPLAY TYPE	WXGA, IPS
DISPLAY SIZE	10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
DISPLAY RESOLUTION	1280 x 800 pixels
MOUNTING OPTIONS	Bail or flush
INPUT	Touchscreen with Keyed Assist

Maps & Memory
ACCEPTS DATA CARDS	2 microSD cards
WAYPOINTS	5000
TRACK POINTS	50,000
TRACKS	50 saved tracks
NAVIGATION ROUTES	100

Sensors
GPS	√
GLONASS	√
GALILEO	√
BEIDOU	√
HAS BUILT-IN RECEIVER	√
RECEIVER	10 Hz
NMEA 2000 COMPATIBLE	√
NMEA 0183 COMPATIBLE	√
SUPPORTS WAAS	√
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS	√

Built-in Maps
BUILT-IN AUTO GUIDANCE+	√
GARMIN NAVIONICS+ INLAND & COASTAL	yes (see Additional)
TIDE TABLES	yes (see Additional)

Optional Map Support
BLUECHART G3	√
BLUECHART G3 VISION	√
LAKEVÜ G3	√
LAKEVÜ G3 ULTRA	√
GARMIN NAVIONICS+™	√
GARMIN NAVIONICS VISION+™	√
TOPO 100K	√
STANDARD MAPPING	√
GARMIN QUICKDRAW CONTOURS	√

Chartplotter Features
AIS	√
DSC	√
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	√
ACTIVECAPTAIN® COMPATIBLE	yes
SAILING FEATURES	√

Electrical Features
POWER INPUT	9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC	2.5 A
MAXIMUM CURRENT DRAW AT 12 VDC	5.0 A
MAXIMUM POWER USAGE AT 10 VDC	36 W

Sonar Features
DISPLAYS SONAR	√
POWER OUTPUT	600 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ	built-in 260/455/800/1000/1200 kHz
SIDEVÜ	built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR	√
LIVESCOPE	√

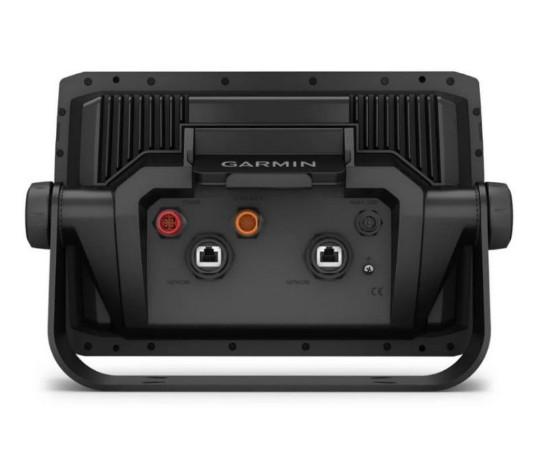

Connections
NMEA 2000® PORTS	1
GARMIN MARINE NETWORK PORTS	2 (large connector)
12-PIN TRANSDUCER PORTS	12-pin scanning sonar
ANT+ (CONNECTIVITY)	√
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	√

Additional
ADDITIONAL	Garmin Navionics+ (Inland and Coastal): 126sv, 125sv Australia and New Zealand Tide tables: 126sv, 125sv Australia and New Zealand

Weight	15 lbs
Dimensions	14 × 9 × 4 in
Display Size	12 in (304.8 mm)
Display Resolution	1280 x 800 pixels
Sonar Frequency	Traditional: 50/77/83/200 kHz CHIRP; ClearVü and SideVü: 260/455/800/1000/1200 kHz
IP Rating	IPX7
Operating Temperature Range	-15 to 55 °C (5 to 131 °F)
Included Accessories	GT56UHD-TM transducer, power cable, mounting hardware
Warranty	2 years
MFG#	010-02882-01
UPC	753759325572
MFG#	EMULTRA2126SV/TM
