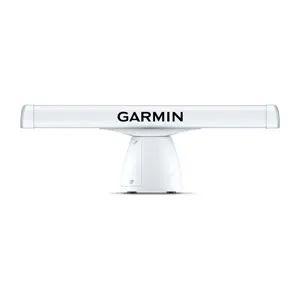

The GMR xHD3 series of open-array radars feature long ranges and improved target-size imaging. These robust new open-array radars incorporate our latest magnetron platform technology to maximize situational awareness for boaters cruising or fishing in open water. Available in 4’ and 6’ versions, with a choice of 4, 12 or 25 kW of output power, these open-array units feature advanced scan averaging technology — a first for Garmin magnetron radar — to filter out sea clutter and ensure a more consistent target display. Other highlights include true echo trails, auto bird gain, and enhanced target size processing. The 100-knot wind-rated open-array antennas1 have rotation speeds of 24 and 48 RPM for fast redraw rates, with a max range of up to 96 nautical miles on the 25-kW and 12-kW versions (up to 72 nautical miles on the 4-kW versions).
|
SCAN AVERAGING TECHNOLOGY |
Scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets. |
|
ANGULAR TARGET-SIZE ADJUSTMENT |
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales. |
|
TRUE ECHO TRAILS |
A historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats. |
|
100-KNOT WIND RATED |
The 100-knot wind-rated open-array antennas 1 have rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 96 nautical miles on the 25-kW and 12-kW versions (up to 72 nautical miles on the 4-kW versions). |
|
DUAL RANGE WITH OVERLAY |
A single radar antenna can provide split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart. |
|
DYNAMIC AUTO GAIN |
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters. |
|
HIGH-RESOLUTION RADAR |
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain. |
|
AUTO BIRD GAIN |
Locate flocks of birds at the water’s surface where baitfish are also likely to be found. |
|
MARPA TARGET TRACKING |
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately). |
|
DYNAMIC SEA FILTER |
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions. |
|
RANGE AND BEARING CUES |
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land. |
Technical Specifications
| Weight | 70.00 lbs |
|---|---|
| Dimensions (L × W × H) | 20.50 × 12.90 × 12.40 in |
