Less time finding. More time fishing. Our top-of-the-line GT56 transducer is now available in a thru-hull and thru-hull pair option that provides better sonar clarity at speed. The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideVü™ scanning sonar with 20% greater range at 1000 kHz, Ultra High-Definition ClearVü™ scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you’ll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.GT56UHD-TM transducerTransom mountMounting hardwareFerrite beadsDocumentation

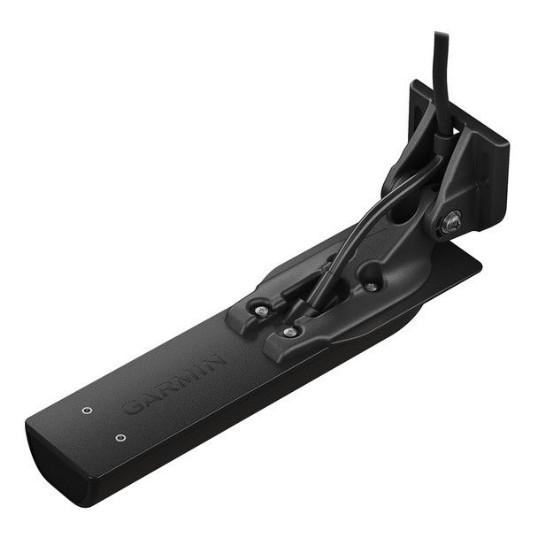

GARMIN GT56UHD-TM Traditional CHIRP High Wide/UHD Clear-Side Transducer
GARMIN GT56UHD-TM Traditional CHIRP High Wide/UHD Clear-Side Transducer
$519.99
18 in stock
18 in stock
- Ships from Pompano Beach, FL, United States.
- Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
- Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
- Product images and specifications are supplied by the manufacturer.
Payment Methods:
Less time finding. More time fishing. Our top-of-the-line GT56 transducer is now available in a thru-hull and thru-hull pair option that provides better sonar clarity at speed. The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideVü™ scanning sonar with 20% greater range at 1000 kHz, Ultra High-Definition ClearVü™ scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you’ll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.GT56UHD-TM transducerTransom mountMounting hardwareFerrite beadsDocumentation
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 6 × 5 in |
| Transducer Type | Traditional CHIRP High Wide/UHD Clear-Side |
| Frequency Range | High Wide: 150-240 kHz; Clear-Side: 455/800 kHz |
| Power Rating | 1000 W RMS |
| Connector Type | 8-pin |
| Operating Temperature Range | -4°F to 158°F (-20°C to 70°C) |
| IP Rating | IPX7 |
| Mounting Style | Transom or in-hull |
| Country of Origin | USA |
| Warranty | 2 years |
| MFG# | 010-13073-00 |
| MFG# | GT56UHD-TM |
Description
Specification
Overview
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 6 × 5 in |
| Transducer Type | Traditional CHIRP High Wide/UHD Clear-Side |
| Frequency Range | High Wide: 150-240 kHz; Clear-Side: 455/800 kHz |
| Power Rating | 1000 W RMS |
| Connector Type | 8-pin |
| Operating Temperature Range | -4°F to 158°F (-20°C to 70°C) |
| IP Rating | IPX7 |
| Mounting Style | Transom or in-hull |
| Country of Origin | USA |
| Warranty | 2 years |
| MFG# | 010-13073-00 |
| MFG# | GT56UHD-TM |
