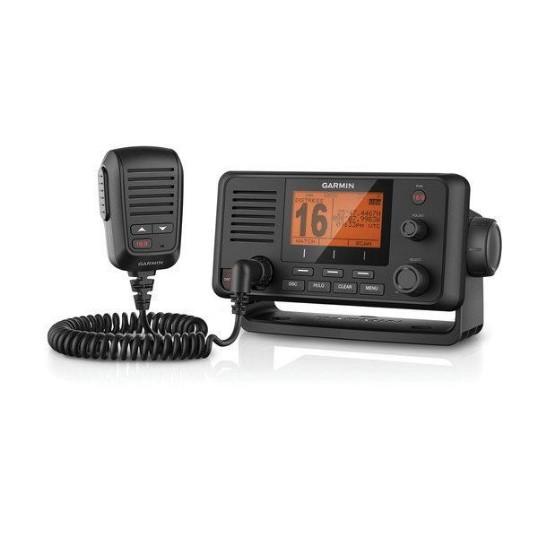

GARMIN VHF 215 Marine Radio VHF Radio
The GARMIN VHF 215 Marine Radio is a VHF radio with 25 watts of transmit power and Class D DSC functionality. It provides voice communication with nearby boats, includes built-in GPS, and connects to compatible chartplotters and MFDs through the NMEA 2000 network for helm radio installations.
Technical Specifications
| Transmit Power | 25 W |
|---|---|
| DSC Functionality | Class D |
| GPS | Built-in |
| Network Interface | NMEA 2000 |
| Included Handset | Fist mic handset |
| Microphone | Removable fist microphone handset |
| Remote Mic Capable | Yes |
| Hailer | Yes |
| Weight | 6 lb (2.72 kg) |
| Dimensions | 7.8 x 5.8 x 3.9 in (198.12 x 147.32 x 99.06 mm) |
Compatibility & Applications
- Pairs with compatible chartplotters and MFDs through the NMEA 2000 network.
- Fits helms using GPSMAP 7×2/9×2, 10×2/12×2, 7400/7600 series displays.
- Mounts with a removable fist microphone relocated away from the radio.
- Wires to Garmin NMEA 2000 network installations with built-in GPS.
In a helm retrofit using GPSMAP 7×2/9×2 displays, the grey radio can connect to compatible chartplotters and MFDs over NMEA 2000. The included fist mic handset can be relocated away from the radio body.
