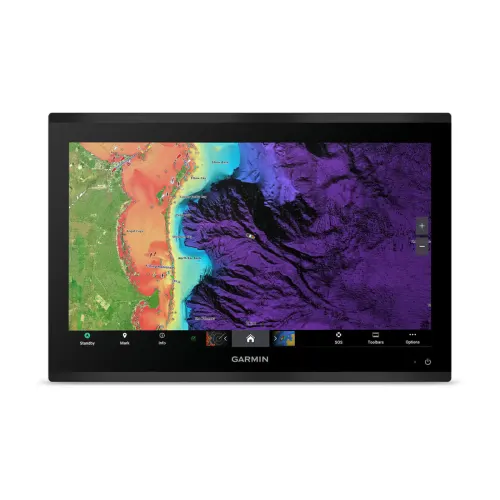

GPSMAP® 9019
$10,099.99

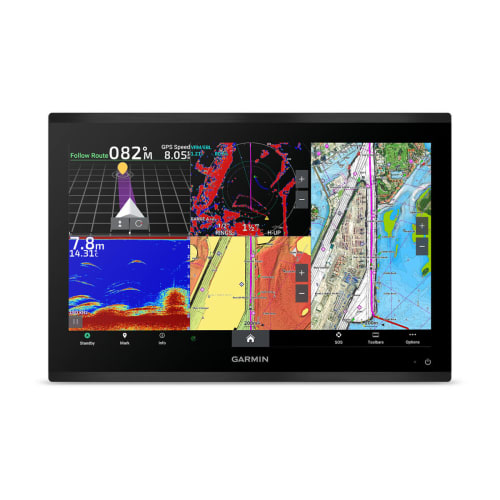

GPSMAP® 9019 is a 4K chartplotter with a 19-inch touchscreen, Worldwide Basemaps, 7 times faster processing power, and video integration capabilities.
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
WELCOME TO 4K PARADISE
It’s the industry’s first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.
PREMIUM CHARTPLOTTER
The 4K resolution IPS sunlight-readable touchscreen display is available in the industry’s largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.
FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+™ routes2 with lightning speed with an optional Garmin Navionics+™ subscription.
GARMIN BLUENET NETWORK

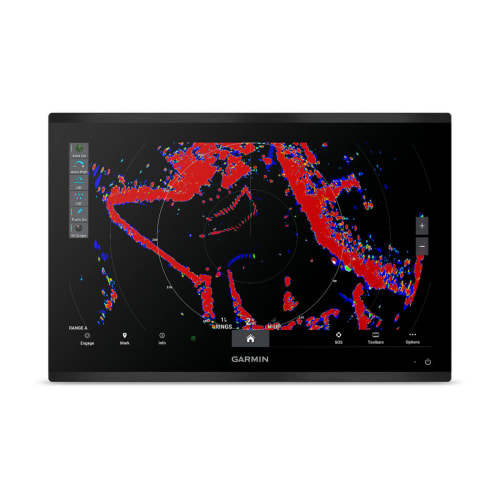

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy 10 times faster networking speeds with minimal lag.

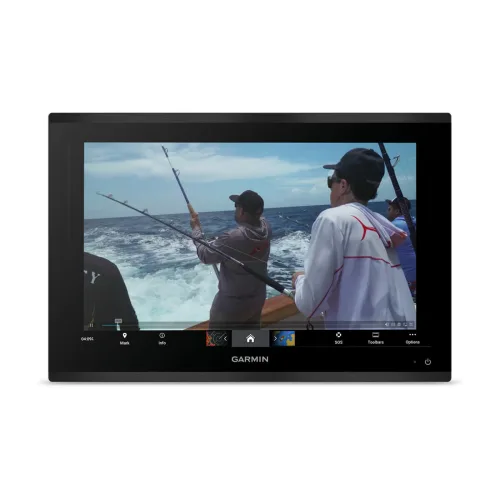

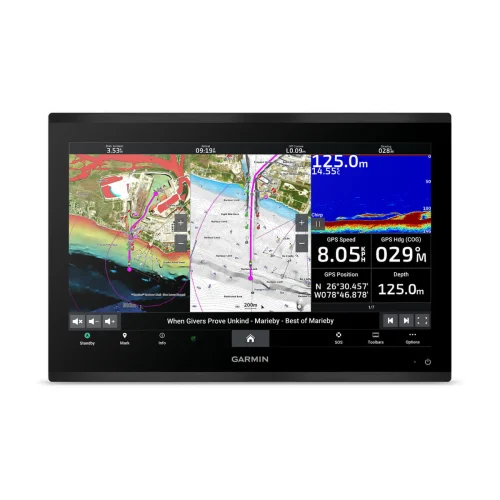

ENTERTAINMENT OPTIONS
Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

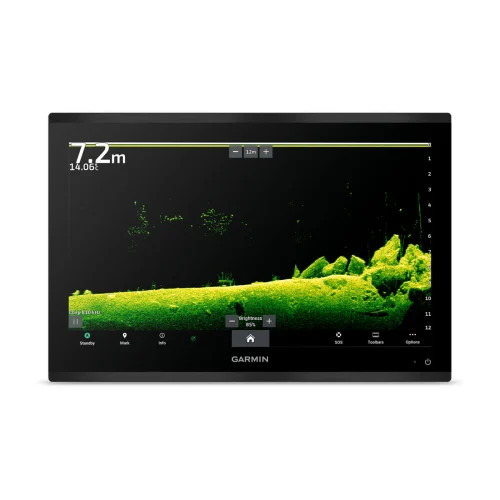

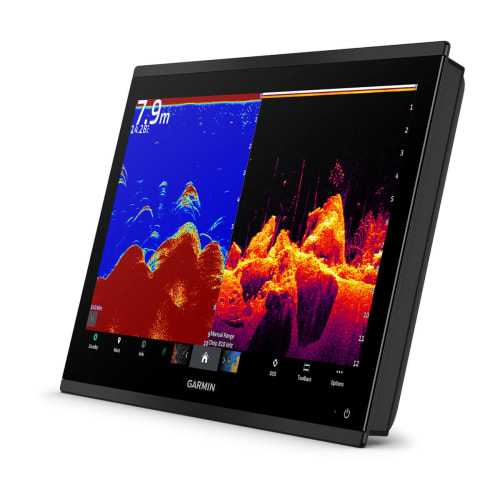

HIGH-DEFINITION SONAR
Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

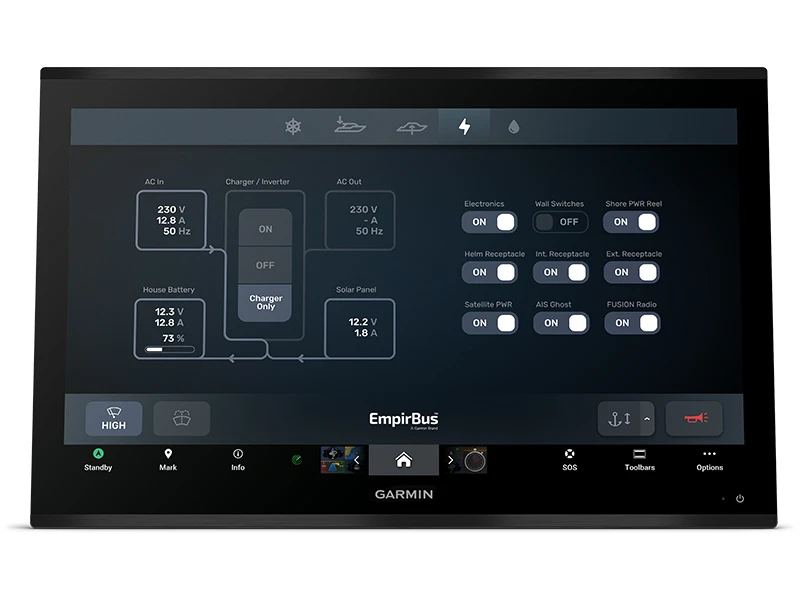

CONNECT YOUR ECOSYSTEM
Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® and NMEA 0183 networks to connect to your compatible accessories.
SOFTWARE UPDATES
Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.

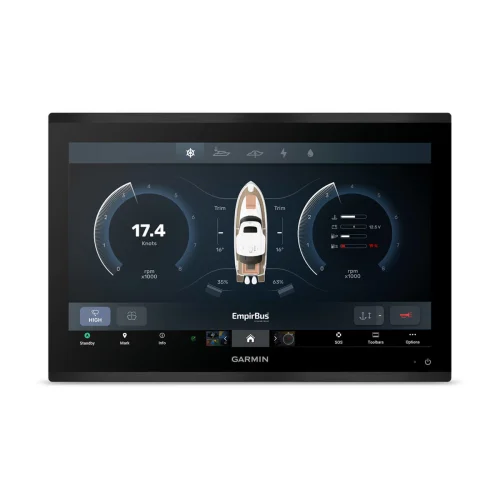

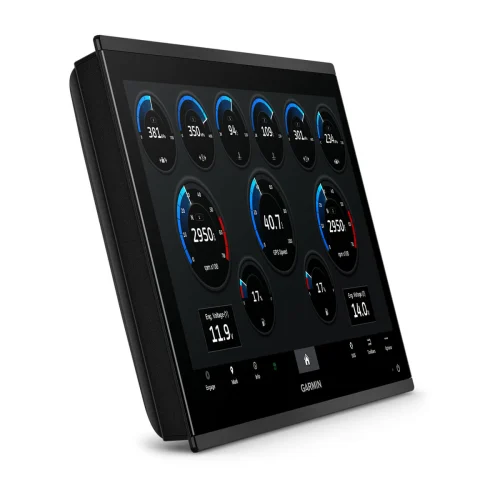

ENGINE MONITORING
Keep tabs on engine performance with extensive engine integration.
CUSTOM LOOK
Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.

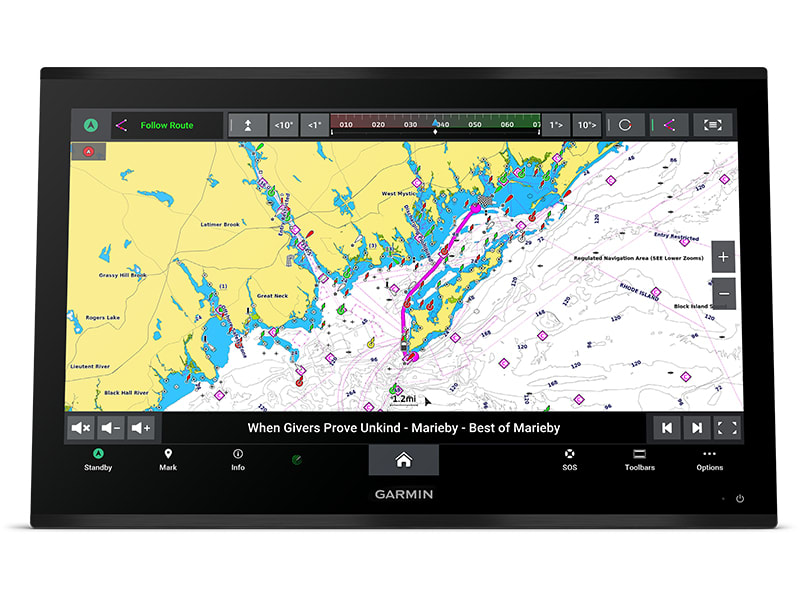

MAPPING
Navigate with optional Garmin Navionics+™ charts that include Auto Guidance+ technology, daily updates and more2 (subscription required).

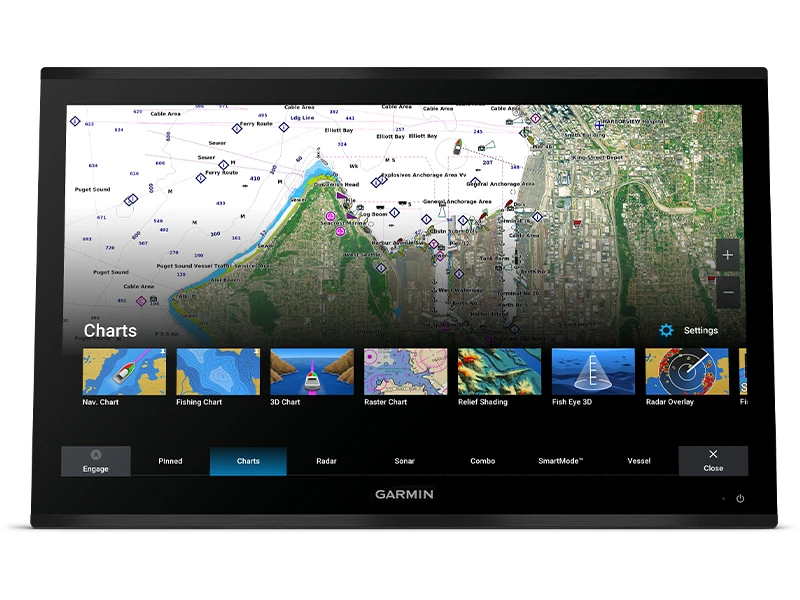

PREMIUM CHARTS
Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
KNOW WHERE YOU ARE
Get your precise location with the included GPS 24xd position receiver and antenna.
AUTOPILOT
Control the autopilot with any compatible chartplotter on the network with autopilot integration.
CONNECT CAMERAS
Get extensive camera support and control to see footage directly on the chartplotter.
SURROUND VIEW SYSTEM
Get a bird’s-eye view with support for our Surround View Camera System (accessory purchase required).
CONTROL WITH YOUR WATCH
Connect to your chartplotter with your compatible Garmin smartwatch.
WIRELESS CONNECTIVITY
Connect compatible devices with integrated BLUETOOTH® and ANT® technologies.
FISH MAPPING
Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
VERBAL COMMANDS
Use spoken commands to control the chartplotter through your compatible headset.
WEATHER-RESISTANT
The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
Additional information
| Dimension | 18.0" x 12.0" x 2.7 (45.7 cm x 30.5 cm x 6.9 cm) |
|---|---|
| Weight | 14.16 lbs (6.42 kg) |
| Water rating | IPX7 |
| Display Type | 4K, IPS |
| Display Size | 16.1" x 9.1" x 18.5" diagonal, 40.9 cm x 23.0 cm x 46.9 cm diagonal |
| Display resolution | 3840 x 2160 pixels |
| Mounting Options | Flush or flat |
| Input | Touchscreen |
| Accepts Data Cards | 2 SD Cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Receiver | 10 Hz (included receiver) |
| ActiveCaptain® compatible | yes |
| Power Input | 10 to 35 Vdc |
| Typical current draw at 12 Vdc | 4.6A |
| Maximum current draw at 12 Vdc | 5.0A |
| Maximum power usage at 10 Vdc | 60W |
| Traditional sonar (dual frequency/beam) | yes (with compatible black box sonar) |
| ClearVü | yes (with compatible black box sonar) |
| SideVü | yes (with compatible black box sonar) |

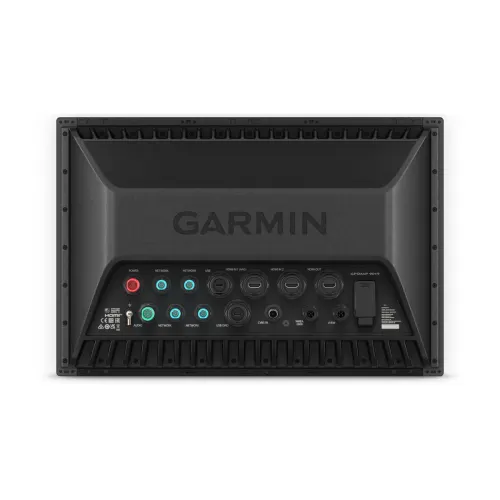

| NMEA 2000® ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 2 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 4 |
| USB ports | yes (2x USB-C) |
| Brand | Garmin |
General
| Dimension | 18.0" x 12.0" x 2.7 (45.7 cm x 30.5 cm x 6.9 cm) |
|---|---|
| Weight | 14.16 lbs (6.42 kg) |
| Water rating | IPX7 |
| Display Type | 4K, IPS |
| Display Size | 16.1" x 9.1" x 18.5" diagonal, 40.9 cm x 23.0 cm x 46.9 cm diagonal |
| Display resolution | 3840 x 2160 pixels |
| Mounting Options | Flush or flat |
| Input | Touchscreen |
| Accepts Data Cards | 2 SD Cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Receiver | 10 Hz (included receiver) |
| ActiveCaptain® compatible | yes |
| Power Input | 10 to 35 Vdc |
| Typical current draw at 12 Vdc | 4.6A |
| Maximum current draw at 12 Vdc | 5.0A |
| Maximum power usage at 10 Vdc | 60W |
| Traditional sonar (dual frequency/beam) | yes (with compatible black box sonar) |
| ClearVü | yes (with compatible black box sonar) |
| SideVü | yes (with compatible black box sonar) |
| NMEA 2000® ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 2 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 4 |
| USB ports | yes (2x USB-C) |
- GPSMAP 9019 chartplotter
- Trim snap cover
- Protective cover
- Flush mount hardware
- Power cable
- GPS 24xd NMEA 2000® (with pole mount, flush mount and under deck mount adapters)
- NMEA 2000 backbone/drop cable (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Documentation
