JL AUDIO 90602 MAX-KIT MAX is a professional-grade, dual FFT measurement system with five microphone

MAX Audio Measurement System

MAX™is a professional-grade, dual FFT measurement system with five microphones. Itis ideal for general audio system measurements, system tuning with DSP,troubleshooting and testing equipment, and solving OEM integration challenges.MAX™ has many applications in home audio, car audio, marine audio andprofessional audio.

Withfull integration of VXi and MVi DSP controls, MAX™ simplifies your measurementsetup, allowing you to perform measurements and DSP adjustments with onecomputer and one software application: TüN™ 4.0, which offers micro-automationsthat speed up equalization and channel delay setting.

What can you do withMAX™?

·          Test, troubleshoot andanalyze any audio system with full detail on the three dimensions of audio:level, frequency and time… all in real time!

·          Streamline the tuningof car audio DSP products in real-world shop environments. Simply connect thehardware, place the microphone array, launch TüN™ software and go!

·          Quickly test roommodes for home audio and home theater subwoofer placements, and accuratelyadjust crossover and phase controls for a seamless transition to thesubwoofer.

·          Evaluate individual ormultiple audio zones in a marine installation for frequency response andlevel.

·          Get the bestmeasurements possible with 5-microphone averaging! MAX™ multiplexes up to fiveincluded microphones to conduct single FFT measurements of level and frequencyresponse (RTA and spectrograph).

·          Conduct Dual FFTmeasurements of up to five simultaneous transfer functions with precisedisplays of magnitude (frequency response), phase, impulse response (delay) andcoherence (noise immunity).

·          Each transfer functioncaptures all the audio data for real-time or comparative analysis.

·          Built-in Test SignalGenerator (pink and white noise, sine waves, square waves, etc.), plus WAV fileplayback capability.

Powerful Automations with VXi and MVi amplifiers:

·          Automatic True Delayfeature sets VXi/MVi channel delays in a flash, far more accurately than anyother method.

·          Autoset EQ featuresets the VXi/MVi parametric EQ’s to your selected target, in seconds. You canalso overlay VXi/MVi equalizer controls over the frequency response display toperform precise, manual EQ adjustments with real time visual feedback.

MAX is Incredibly Flexible and Accurate!

·          MAX™ measurementaccuracy is on par with professional test equipment that sells for tens ofthousands of dollars.

·          Wide Range of Inputs(up to five microphones, high-level analog signals up to 80V, low-level analogsignals up to 7V, optical digital S/PDIF signals)

·          Multiple SignalOutputs (built-in DAC feeding analog line level outputs and headphone outputs,plus optical digital output)

·          A built-in USB Hubsimplifies connection to computer and DSP amplifiers, or other USB devices (notintended for charging devices).

What is in the Kit?

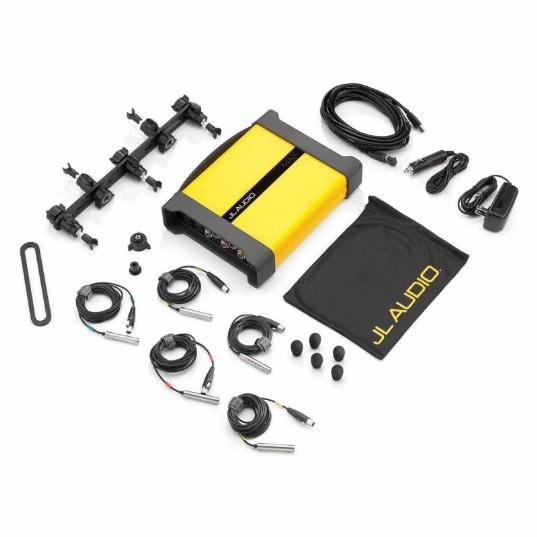

·          The MAX-KIT includesthe MAX™ hardware interface,   five measurementmicrophones, a multi-mic fixture, mounting accessories, cables and powersupplies, all packed in a locking, waterproof hard case.

·          An optional,specialized probe kit for speaker impedance and high-voltage electrical measurements is available separately: “MAX-PROBE KIT” (90922)

What else will you need:

·          A PC (Windows 10), orMac (OS X Catalina or newer)

·          Our free TüN 4software, available below

·          A mic stand or tripodto support the multi-mic holder.

Specifications

Inputs

Power Supply 12 VDC nominal (10-15 VDC range)

High-Level Inputs 1 & 2

Pin Configuration XLR (Pin 1 – GND, Pin 2 – Signal +, Pin 3 – Signal -)

Input Impedance 73 kΩ

Flatness ± 0.1 dB 5 Hz – 15 kHz @  44.1 kSR, 48 kSR, 96 kSR

Flatness ± 0.5 dB 5 Hz – 20 kHz @ 44.1 kSR

5 Hz – 22 kHz @ 48 kSR

5 Hz – 35 kHz @ 96 kSR

Crosstalk, 5 Hz – 20 kHz ≤  – 95 dB

Crosstalk @ 1 kHz ≤  – 110 dB

THD @ 1 kHz ≤ 0.0012%

THD+N, 5 Hz – 20 kHz ≤ 0.035%

ADC headroom -4.84 dBFS @ 80 VAC peak (56.57 Vrms sine)

Maximum DC offset level 50 VDC, Pin 2 or 3 to GND, Pin 1 – DC

Unbalanced Mic Inputs (1,2,3,4,5)

Pin Configuration Mini-XLR (Pin 1 – GND, Pin 2 – Signal +, Pin 3 – 2 VDC)

Input Impedance 2.2 kΩ

Flatness ± 0.05 dB 10 Hz – 10 kHz @  44.1 kSR, 48 kSR, 96 kSR

Crosstalk, 5 Hz – 20 kHz ≤  – 115 dB

Crosstalk @ 1 kHz ≤  – 120 dB

THD @ 1 kHz ≤ 0.0009%

THD+N, 5 Hz – 20 kHz ≤ 0.01%

ADC headroom -39.5 dBFS @ 94 dB SPL

RCA Balanced (Reference Input)

Pin Configuration RCA  Female (Center Pin – Signal +, Shell – Signal –)

Input Impedance ~ 100 kΩ

Flatness ± 0.1 dB 5 Hz – 15 kHz @  44.1 kSR, 48 kSR, 96 kSR

Flatness ± 0.5 dB 5 Hz – 20 kHz @ 44.1 kSR

5 Hz – 22 kHz @ 48 kSR

5 Hz – 35 kHz @ 96 kSR

THD @ 1 kHz ≤ 0.005%

THD+N, 5 Hz – 20 kHz ≤ 0.035%

S/PDIF Digital Input (Optical)

Connector TOSLINK

Sample Rates 8 kHz – 216 kHz

Bit Depths 8 – 24 bit  PCM

Outputs

DAC Output

Connectors Unbalanced RCA

Output Impedance 200 Ω

Output Level at 0 dBFS 4 Vrms

Flatness ± 0.1 dB 5 Hz – 10 kHz @  44.1 kSR, 48 kSR, 96 kSR

Flatness ± 1 dB 5 Hz – 20 kHz @ 44.1 kSR

5 Hz – 22 kHz @ 48 kSR

5 Hz – 35 kHz @ 96 kSR

Crosstalk, 5 Hz – 20 kHz ≤  – 95 dB

Crosstalk @ 1 kHz ≤  – 110 dB

THD @ 1 kHz ~ 0.0014%

THD+N, 5 Hz – 20 kHz ≤ 0.032%

S/PDIF Digital Output (Optical)

Connector TOSLINK

Sample Rates 44.1 kHz – 96 kHz

Bit Depth 24 bit  PCM

Output Level Defined by Signal Generator level control

Microphones

Size, Type 1/4″, pre-polarized electret (omnidirectional)

Flatness ± 1 dB 50 Hz to 10 kHz @ 44.1k SR, 48k SR, 96k SR

Flatness ± 2 dB 5 Hz to ≥ 20 kHz @ 44.1k SR, 48k SR, 96k SR

Maximum Input SPL 130 dB SPL @ 1 kHz with ≤ 2% THD
