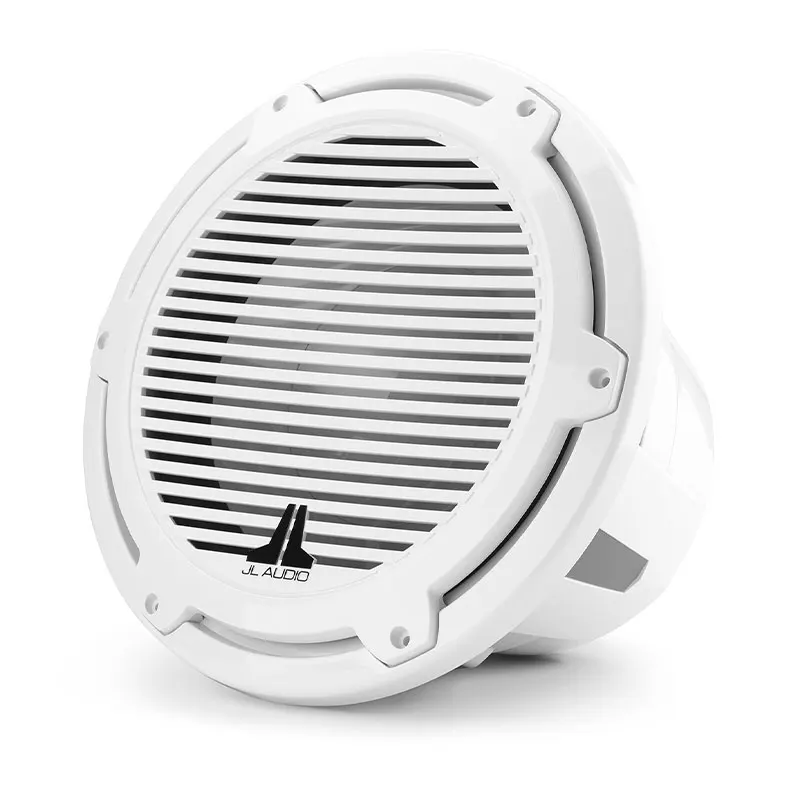

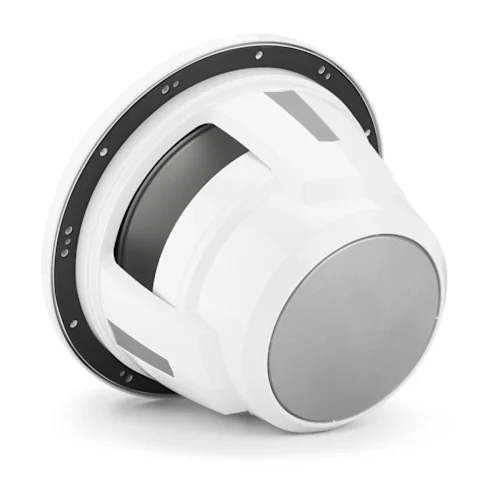

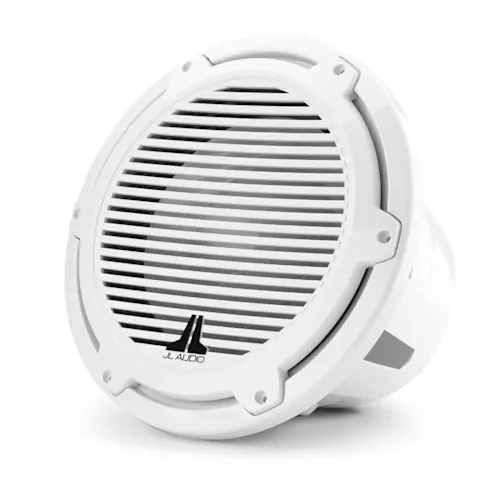

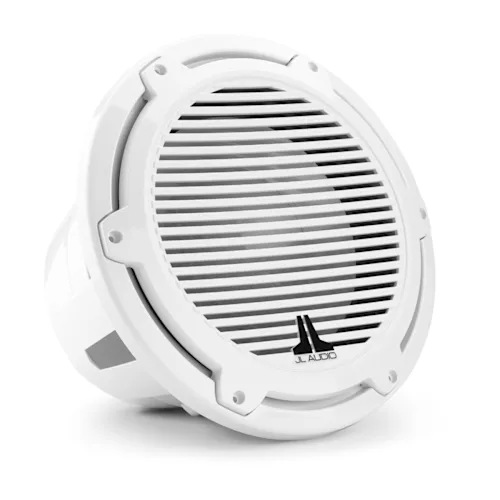

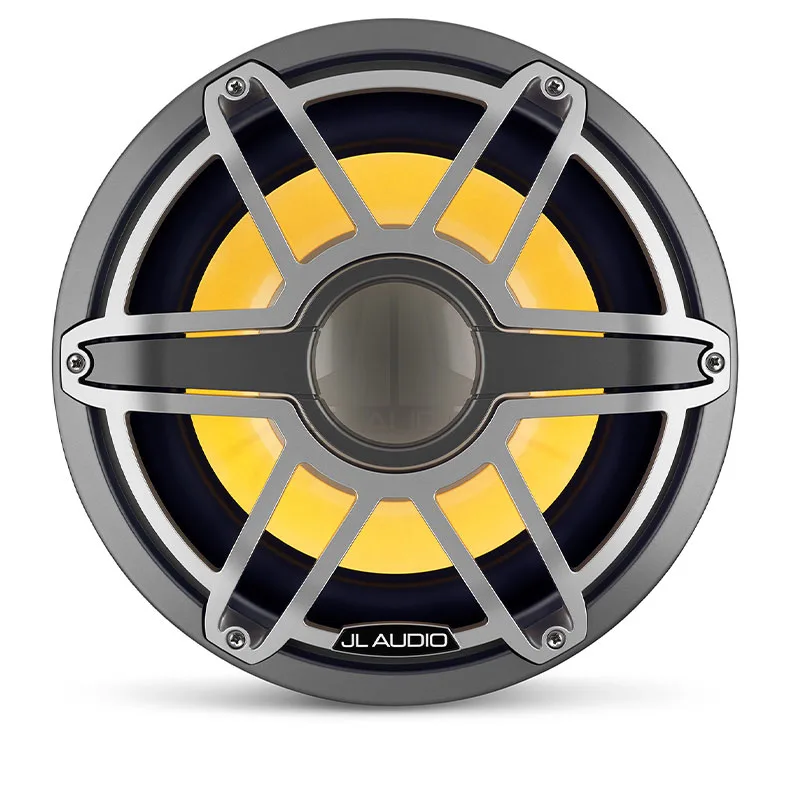

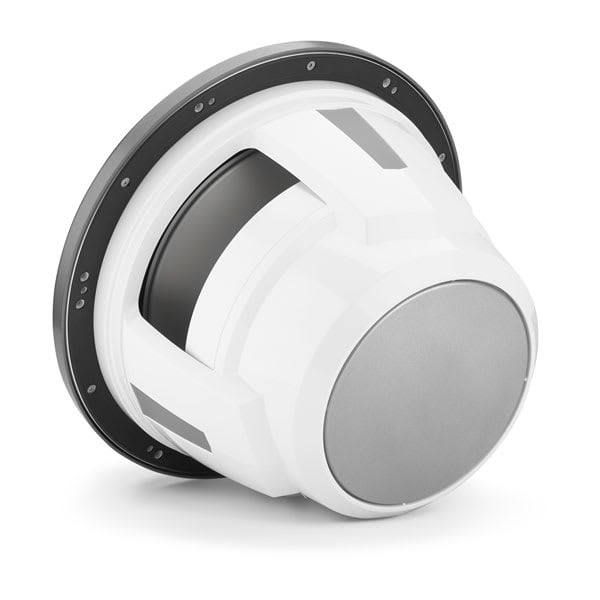

JL Audio® M7 Marine Subwoofer
$974.99
M7 marine subwoofers are optimized for high-power, infinite baffle operation with stunning bass performance in open-air boating applications.
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
KING OF BASS
With oversized, overbuilt components and very powerful motor systems, M7s are extreme subwoofers optimized for high-power operation in open-air applications.
INCREDIBLE DISPLACEMENT
Displacement is a direct measure of a subwoofer’s output capability. With more than twice the displacement of most 10-inch subwoofers, the M7-12IB is in a class of its own.
INFINITE BAFFLE DESIGN
M7 marine subwoofers are purpose-engineered to operate without dedicated enclosures, needing only large volumes of air behind them.
HIGH POWERED
The M7 marine subwoofer easily handles up to 600 watts RMS.
DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

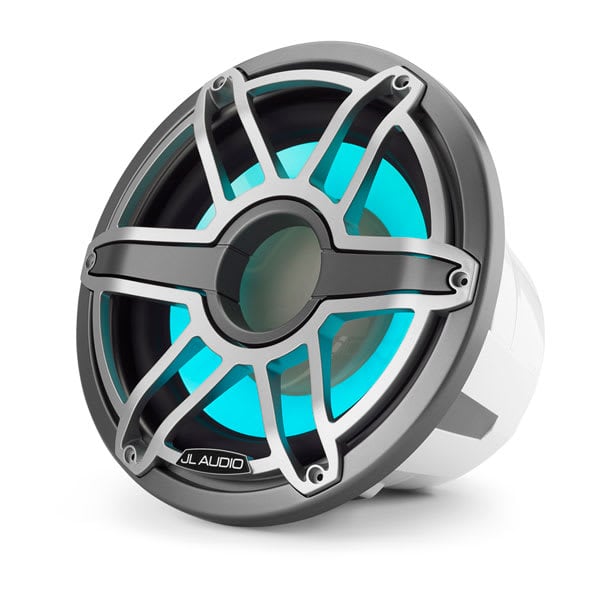

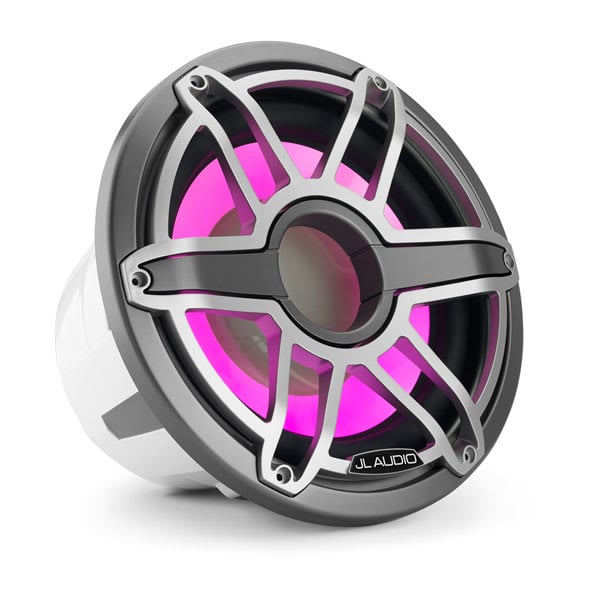

TRANSFLECTIVE™ RGB LED LIGHTING
Get a patented system on sport models for smooth lighting with no hot spots or reflections.
Additional information
| Warranty | 3 years |
|---|---|
| Sizes | 12" |
| Color | White Classic, White Sport or Titanium Sport |
| Physical dimensions (Diameter) | 14" (356 mm) |
| Physical dimensions (Depth) | 12" (Classic): 9.39" (239 mm)12" (Sport): 9.42" (240 mm) |
| Weight | 25.35 lbs (11.5 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 86.7 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 200-600 W |
| LED lighting | yes – Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 648 mA |
| Voice coil diameter | 4" (102 mm) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Speaker connections | Spade Connectors |
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
| Mounting depth clearance | 7.94" (202 mm) |
| Frontal grille protrusion | 12" (Classic): 1.45" (37 mm)12" (Sport): 1.48" (38 mm) |
| Mounting hole | 12.0625" (306 mm) |
| Bolt hole circle | 12.813" (325 mm) |
| Driver displacement | 0.148 cu ft (4.19 L) |
| Free Air Resonance (FS) | 35.34 Hz |
| Electrical “Q” (Qes) | 0.856 |
| Mechanical “Q” (Qms) | 10.389 |
| Total “Q” (Qts) | 0.791 |
| Equivalent Compliance (Vas) | 1.99 cu ft (56.35 L) |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | 80.54 in² (0.052 m²) |
| DC resistance (RE) | 3.543 Ω |
| Wall thickness | 0.75" (19 mm) |
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 3.00 cu ft (85 L) |
| External width (W) | 24" (610 mm) |
| External height (H) | 18.5" (470 mm) |
| External depth (D) | 15.75" (400 mm) |
| -3 dB cutoff frequency (F3) | 35.52 Hz |
| System resonance (FC) | 45.58 Hz |
| System Q at resonance (QTC) | 1.02 |
| Internal port diameter (ID) | 5" (127 mm) |
| Port length (L) | 13.5" (343 mm) |
| Tuning frequency (FB) | 25 Hz |
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
| Brand | Garmin |
General
| Warranty | 3 years |
|---|---|
| Sizes | 12" |
| Color | White Classic, White Sport or Titanium Sport |
| Physical dimensions (Diameter) | 14" (356 mm) |
| Physical dimensions (Depth) | 12" (Classic): 9.39" (239 mm)12" (Sport): 9.42" (240 mm) |
| Weight | 25.35 lbs (11.5 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 86.7 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 200-600 W |
| LED lighting | yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 648 mA |
| Voice coil diameter | 4" (102 mm) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Speaker connections | Spade Connectors |
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
| Mounting depth clearance | 7.94" (202 mm) |
| Frontal grille protrusion | 12" (Classic): 1.45" (37 mm)12" (Sport): 1.48" (38 mm) |
| Mounting hole | 12.0625" (306 mm) |
| Bolt hole circle | 12.813" (325 mm) |
| Driver displacement | 0.148 cu ft (4.19 L) |
| Free Air Resonance (FS) | 35.34 Hz |
| Electrical “Q” (Qes) | 0.856 |
| Mechanical “Q” (Qms) | 10.389 |
| Total “Q” (Qts) | 0.791 |
| Equivalent Compliance (Vas) | 1.99 cu ft (56.35 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.73" (18.5 mm) |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | 80.54 in² (0.052 m²) |
| DC resistance (RE) | 3.543 Ω |
| Wall thickness | 0.75" (19 mm) |
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 3.00 cu ft (85 L) |
| External width (W) | 24" (610 mm) |
| External height (H) | 18.5" (470 mm) |
| External depth (D) | 15.75" (400 mm) |
| -3 dB cutoff frequency (F3) | 35.52 Hz |
| System resonance (FC) | 45.58 Hz |
| System Q at resonance (QTC) | 1.02 |
| Wall thickness | 0.75" (19 mm) |
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 5.00 cu ft (141.6 L) |
| External width (W) | 30" (762 mm) |
| External height (H) | 18.5" (470 mm) |
| External depth (D) | 20.5" (521 mm) |
| Internal port diameter (ID) | 5" (127 mm) |
| Port length (L) | 13.5" (343 mm) |
| Tuning frequency (FB) | 25 Hz |
| -3 dB cutoff frequency (F3) | 20.96 Hz |
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
- One marine subwoofer
- One grille
- Six stainless steel mounting screws
- Six stainless steel washers
- Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
