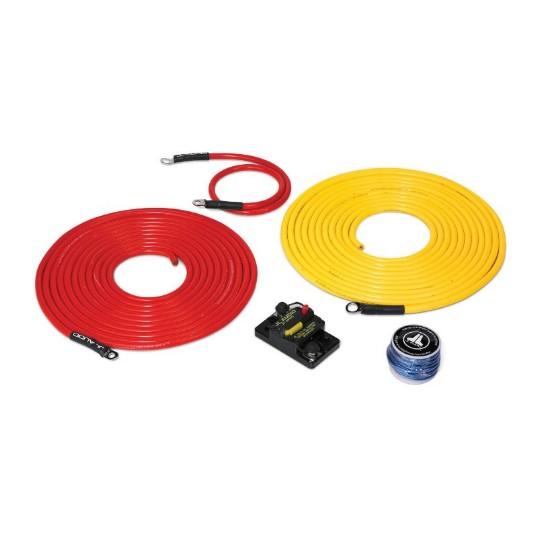

JL AUDIO XMD-PCS50A-1-L20 Premium 6 AWG 12-V Power Connection System Electrical Accessory
The JL AUDIO XMD-PCS50A-1-L20 is an Electrical Accessories power connection system using 6 AWG conductors for 12-V service. The unit provides the power-connection package for one amplifier, with an application limit of up to 20 ft and a stated 50 Amp rating.
Technical Specifications
| Product Category | Electrical Accessories |
|---|---|
| System Type | Power connection system for single amplifier |
| Conductor Size | 6 AWG |
| Voltage | 12 V |
| Current Rating | 50 Amp |
| Maximum Run Length | Up to 20 ft |
| Weight | 3 lb (1.36 kg) |
| Dimensions | 18 x 12 x 6 in (457.2 x 304.8 x 152.4 mm) |
Compatibility & Applications
- Fits single-amplifier 12-V power connection layouts up to 20 ft.
- Pairs with one amplifier where a 50 Amp connection is specified.
- Wires through a 6 AWG power connection system.
- Fits audio electrical layouts requiring a 12-V amplifier power feed.
- Pairs conductor size, amplifier count, run length, and current rating in one kit.
In a 12-V source-to-amplifier installation with a cable path capped at 20 ft, the unit keeps the specified feed at 6 AWG for one amplifier and 50 Amp service. Its differentiator is the published combination of conductor gauge, single-amplifier use, maximum run length, current rating, shipping weight, and package dimensions.
