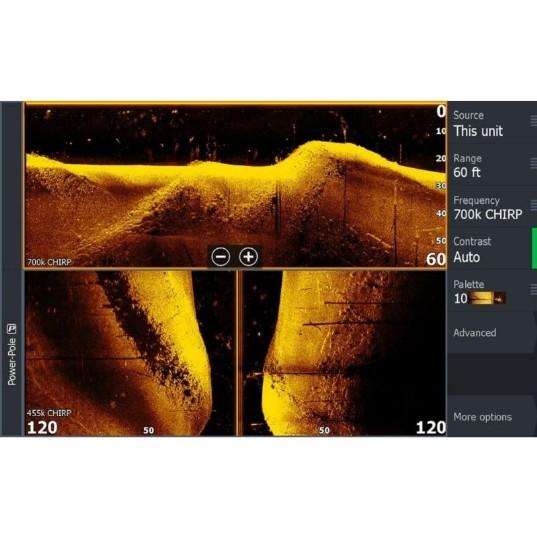

- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays

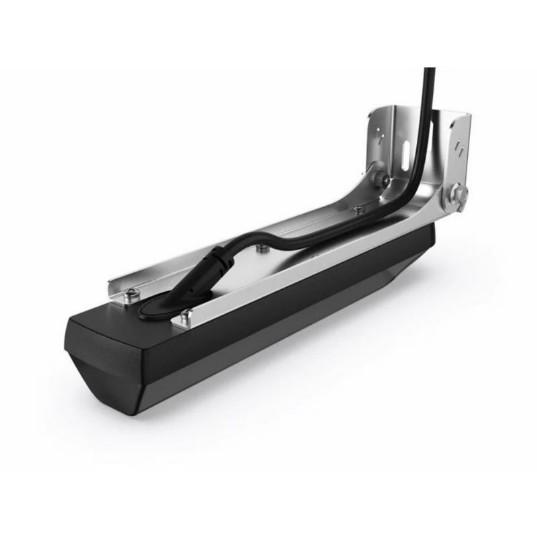

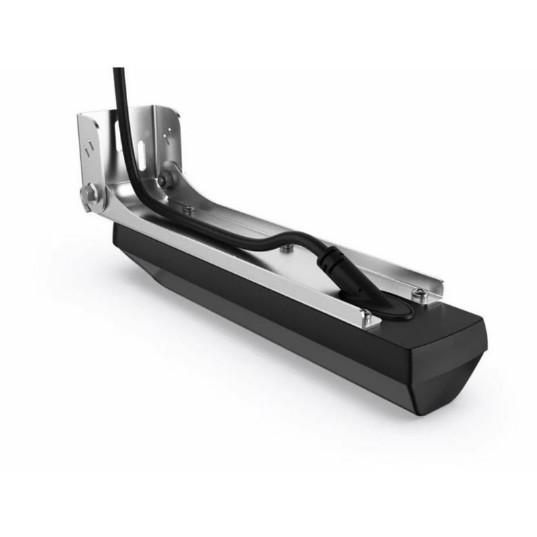

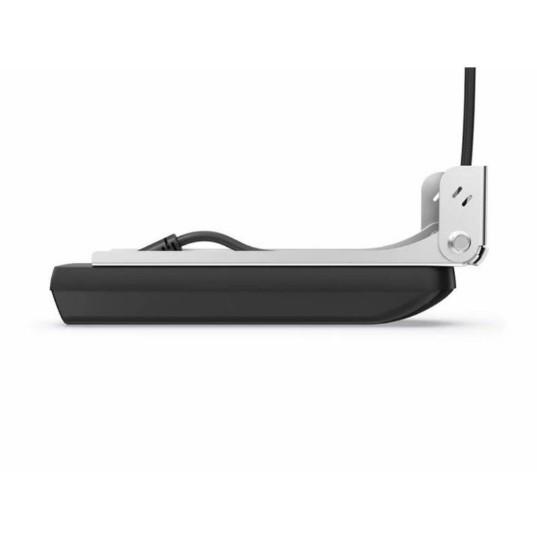

Lowrance Active Imaging HD 3-IN-1
LOWRANCE ACTIVE IMAGING HD 3-IN-1
$475.00
7 in stock
7 in stock
Item
Shipping
Total
Ships from Pompano Beach, FL. Rate shown is for Florida (1-2 business days); other states 1 to 7 business days, exact rate by ZIP at checkout.
Shipping & sourcing
- Ships from Pompano Beach, FL, United States.
- Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
- Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
- Product images and specifications are supplied by the manufacturer.
0
People watching this product now!
Payment Methods:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
| Weight | 3.89 lbs |
|---|---|
| Dimensions | 4 × 14 × 10 in |
| Imaging Technology | Active Imaging 3-in-1 |
| Sonar Frequency | Low, Medium, High |
| Connector Type | Multi-pin connector |
| Power Supply | 12V DC |
| Operating Temperature Range | -4 to 158 °F (-20 to 70 °C) |
| IP Rating | IP67 |
| Country of Origin | USA |
| Warranty | 2 years |
| MFG# | 000-16062-001 |
| MFG# | 000-16062-001 |
Description
Specification
Overview
| Weight | 3.89 lbs |
|---|---|
| Dimensions | 4 × 14 × 10 in |
| Imaging Technology | Active Imaging 3-in-1 |
| Sonar Frequency | Low, Medium, High |
| Connector Type | Multi-pin connector |
| Power Supply | 12V DC |
| Operating Temperature Range | -4 to 158 °F (-20 to 70 °C) |
| IP Rating | IP67 |
| Country of Origin | USA |
| Warranty | 2 years |
| MFG# | 000-16062-001 |
| MFG# | 000-16062-001 |
