The dual-frequency HST-DFSBL includes a single ceramic element delivering both 50 kHz with a 29° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water. Depth/Temperature One sensor does it all. Able to measure both depth and temperature in a single package, the HST-DFSBL simplifies installation and requires just one connection to your echosounder module or multifunction display. Mounting With plastic housing, the HST-DFSBL is suitable for transom mounting on any hull. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle.

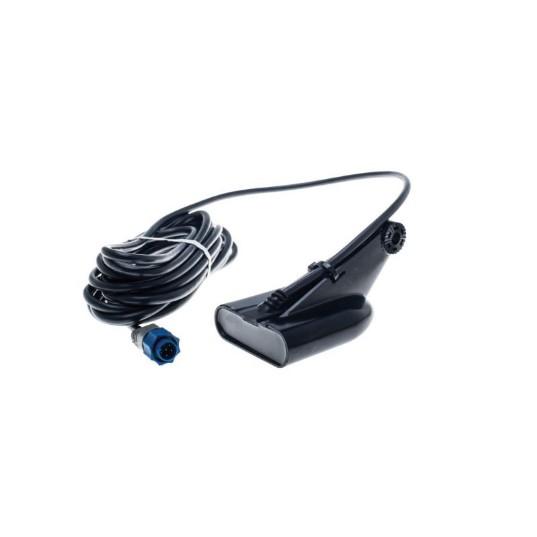

LOWRANCE HST-DFSBL Dual Frequency 50/200kHz Transom-Mount Skimmer Depth/Temp, Blue Conn. (FOR HDS TYPE UNITS)
LOWRANCE HST-DFSBL Dual Frequency 50/200kHz Transom-Mount Skimmer Depth/Temp, Blue Conn. (FOR HDS TYPE UNITS)
$115.00
7 in stock
7 in stock
Item
Shipping
Total
Ships from Pompano Beach, FL. Rate shown is for Florida (1-2 business days); other states 1 to 7 business days, exact rate by ZIP at checkout.
Shipping & sourcing
- Ships from Pompano Beach, FL, United States.
- Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
- Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
- Product images and specifications are supplied by the manufacturer.
0
People watching this product now!
Payment Methods:
The dual-frequency HST-DFSBL includes a single ceramic element delivering both 50 kHz with a 29° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water. Depth/Temperature One sensor does it all. Able to measure both depth and temperature in a single package, the HST-DFSBL simplifies installation and requires just one connection to your echosounder module or multifunction display. Mounting With plastic housing, the HST-DFSBL is suitable for transom mounting on any hull. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle.
| Weight | 2.34 lbs |
|---|---|
| Dimensions | 8 × 9 × 4 in |
| Frequency | 50/200 kHz |
| Connector Type | Blue Connector |
| Operating Temperature Range | -13 to 158 °F (-25 to 70 °C) |
| IP Rating | IP67 |
| Country of Origin | USA |
| Warranty | 1 year |
| MFG# | 000-0106-77 |
| MFG# | HST-DFSBL |
Description
Specification
Overview
| Weight | 2.34 lbs |
|---|---|
| Dimensions | 8 × 9 × 4 in |
| Frequency | 50/200 kHz |
| Connector Type | Blue Connector |
| Operating Temperature Range | -13 to 158 °F (-25 to 70 °C) |
| IP Rating | IP67 |
| Country of Origin | USA |
| Warranty | 1 year |
| MFG# | 000-0106-77 |
| MFG# | HST-DFSBL |
