Lumishore® ECLIPSE DL55 – Lighting | Marine Overhauling Florida

Click to enlarge

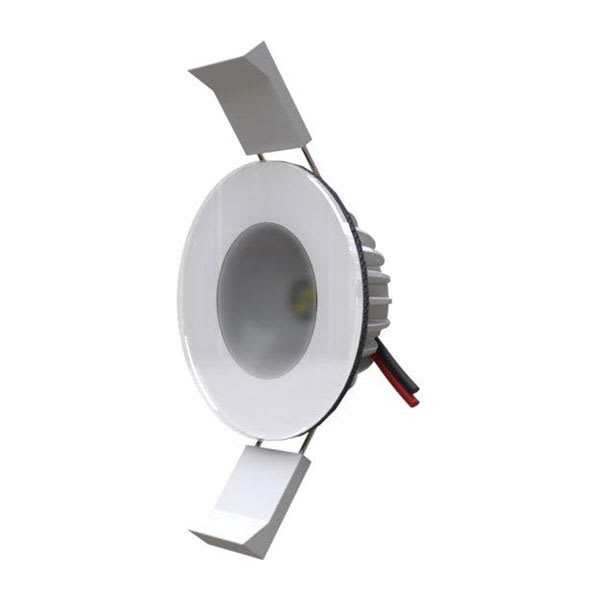

Lumishore® ECLIPSE DL55

SKU: N/A

Lumishore ECLIPSE DL55 are boat downlights available in multiple colours, and can be installed anywhere you need overhead lighting indoors or outdoors.

Price range: $119.99 through $149.99

Lumi Bezel Finish

Lumi Light Color

Add to wishlist

19 People watching this product now!

Payment Methods:

Description
Additional information

Lumishore® ECLIPSE DL55

VERSATILE LED DOWNLIGHTING

These powerful marine-grade downlights can be installed anywhere you need overhead lighting — indoors or outdoors.

AVAILABLE IN WHITE+RGB, BLUE, WHITE, OR BLUE AND WHITE

AVAILABLE IN WHITE+RGB, BLUE, WHITE, OR BLUE AND WHITE

BLACK, WHITE OR CHROME FINISHES

BLACK, WHITE OR CHROME FINISHES

SIMPLE 2-WIRE INSTALLATION

SIMPLE 2-WIRE INSTALLATION

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

IP68-RATED FOR DUST AND WATER PROTECTION

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

3-YEAR WARRANTY

1The MFD, smart device and momentary switch control require an ECLIPSE Command Center or direct power via an on/off switchEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	1.50 lbs
Dimensions (L × W × H)	8.00 × 2.52 × 0.83 in

Weight	1.5 lbs
Dimensions	8 × 2.52 × 0.83 in
Lumi Bezel Finish	Black, Chrome, White
Lumi Light Color	Blue, Blue/White, White, White/RGB
Warranty	3 years
LED colors	White (5000 K) + Full spectrum RGB, Blue, Blue and White (5000 K), White (5000 K)
LED type	RGB: 1 x 3 W Red, 1 x 3 W Green, 1 x 3 W Blue, 1 x 3 W WhiteBlue: 2 x 3 W BlueBlue and White: 2 x 3 W Blue, 2 x 3 W WhiteWhite: 2 x 3 W White
Beam angle	ultra wide
Number of lights via direct power	Not limited
Number of lights per Eclipse Comand Center/Expansion module zone	16
Electrical installation	2 wire
Operating voltage	10-15 VDC
Current consumption 12 V (max)	0.4 A
Average power draw	4.8 W
Construction	E-coating and powder coating
Water and dust rating	IP68
Momentary switch	yes (via ECLIPSE Command Center)
Compatible MFD	yes (via ECLIPSE Command Center)
Smart device	yes (via ECLIPSE Command Center)
Mounting diameter clearance (with bezel)	2.52″ (64 mm)
Mounting depth clearance	0.83″ (21.2 mm)
Frontal protrusion (profile)	0.137″ (3.5 mm)
Mounting hole	2″ (50.8 mm)
Mechanical installation	Internal location: Stainless steel spring clipsExternal location: Marine adhesive (not supplied)

Description

Lumishore® ECLIPSE DL55

VERSATILE LED DOWNLIGHTING

These powerful marine-grade downlights can be installed anywhere you need overhead lighting — indoors or outdoors.

AVAILABLE IN WHITE+RGB, BLUE, WHITE, OR BLUE AND WHITE

AVAILABLE IN WHITE+RGB, BLUE, WHITE, OR BLUE AND WHITE

BLACK, WHITE OR CHROME FINISHES

BLACK, WHITE OR CHROME FINISHES

SIMPLE 2-WIRE INSTALLATION

SIMPLE 2-WIRE INSTALLATION

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

IP68-RATED FOR DUST AND WATER PROTECTION

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

3-YEAR WARRANTY

1The MFD, smart device and momentary switch control require an ECLIPSE Command Center or direct power via an on/off switchEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	1.50 lbs
Dimensions (L × W × H)	8.00 × 2.52 × 0.83 in

Specification

Overview

Weight	1.5 lbs
Dimensions	8 × 2.52 × 0.83 in
Lumi Bezel Finish	Black, Chrome, White
Lumi Light Color	Blue, Blue/White, White, White/RGB
Warranty	3 years
LED colors	White (5000 K) + Full spectrum RGB, Blue, Blue and White (5000 K), White (5000 K)
LED type	RGB: 1 x 3 W Red, 1 x 3 W Green, 1 x 3 W Blue, 1 x 3 W WhiteBlue: 2 x 3 W BlueBlue and White: 2 x 3 W Blue, 2 x 3 W WhiteWhite: 2 x 3 W White
Beam angle	ultra wide
Number of lights via direct power	Not limited
Number of lights per Eclipse Comand Center/Expansion module zone	16
Electrical installation	2 wire
Operating voltage	10-15 VDC
Current consumption 12 V (max)	0.4 A
Average power draw	4.8 W
Construction	E-coating and powder coating
Water and dust rating	IP68
Momentary switch	yes (via ECLIPSE Command Center)
Compatible MFD	yes (via ECLIPSE Command Center)
Smart device	yes (via ECLIPSE Command Center)
Mounting diameter clearance (with bezel)	2.52″ (64 mm)
Mounting depth clearance	0.83″ (21.2 mm)
Frontal protrusion (profile)	0.137″ (3.5 mm)
Mounting hole	2″ (50.8 mm)
Mechanical installation	Internal location: Stainless steel spring clipsExternal location: Marine adhesive (not supplied)
