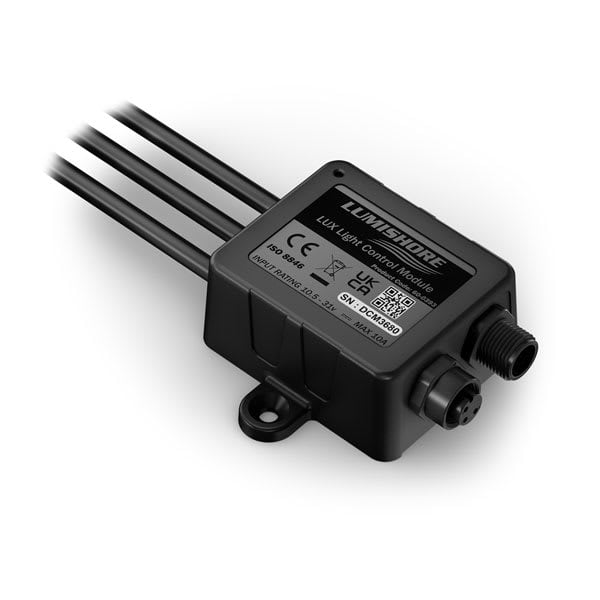

Lumishore® LUX Light Control Module

Name: Lumishore® LUX Light Control Module | Marine Overhauling
Brand: Lumishore
SKU: 010-04442-00
Price: 208.71 USD
Availability: InStock

SKU: 010-04442-00

Required for all LUX downlights, courtesy lights, livewell lights, flood lights and light bars, this control module enables full-spectrum CRGBW color control1, white color tuning and advanced lighting features from your EOS-LUX Command Center

$208.71

We sell it. We install it.

Professional marine lighting installation available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing

Ships from Pompano Beach, FL, United States.
Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
Product images and specifications are supplied by the manufacturer.

Shipping & returns policy

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description
Additional information

Required for all LUX downlights, courtesy lights, livewell lights, flood lights and light bars, this control module enables full-spectrum CRGBW color control1, white color tuning and advanced lighting features from your EOS-LUX Command Center — or as a stand-alone module operated from an on/off switch.

1Excluding light bars, which are white color onlyEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	0.93 lbs
Dimensions (L × W × H)	2.80 × 1.06 × 3.07 in

Weight	0.93 lbs
Dimensions	2.8 × 1.06 × 3.07 in
Warranty	3 years
Electrical installation	Hard-wired
Operating voltage	12 V/24 V
Operating voltage range	10.5-31 VDC
Current consumption 12 V (max)	0.05 A (device only)
Current consumption 24 V (max)	0.03 A (device only)
Average power draw	0.6 W (device only)
Construction	Robust weatherproof ABS (flame retardant and halogen-free)
Water and dust rating	IP68
Dimensions (width)	2.8″ (71 mm)
Dimensions (depth)	1.06″ (27 mm)
Dimensions (height)	3.07″ (78 mm)
Mechanical installation	Screw fixings
MFG#	010-04442-00

Description

Required for all LUX downlights, courtesy lights, livewell lights, flood lights and light bars, this control module enables full-spectrum CRGBW color control1, white color tuning and advanced lighting features from your EOS-LUX Command Center — or as a stand-alone module operated from an on/off switch.

1Excluding light bars, which are white color onlyEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	0.93 lbs
Dimensions (L × W × H)	2.80 × 1.06 × 3.07 in

Specification

Overview

Weight	0.93 lbs
Dimensions	2.8 × 1.06 × 3.07 in
Warranty	3 years
Electrical installation	Hard-wired
Operating voltage	12 V/24 V
Operating voltage range	10.5-31 VDC
Current consumption 12 V (max)	0.05 A (device only)
Current consumption 24 V (max)	0.03 A (device only)
Average power draw	0.6 W (device only)
Construction	Robust weatherproof ABS (flame retardant and halogen-free)
Water and dust rating	IP68
Dimensions (width)	2.8″ (71 mm)
Dimensions (depth)	1.06″ (27 mm)
Dimensions (height)	3.07″ (78 mm)
Mechanical installation	Screw fixings
MFG#	010-04442-00
