Simrad NSS9 EVO3S Combo MFD, US C-MAP Chartplotter

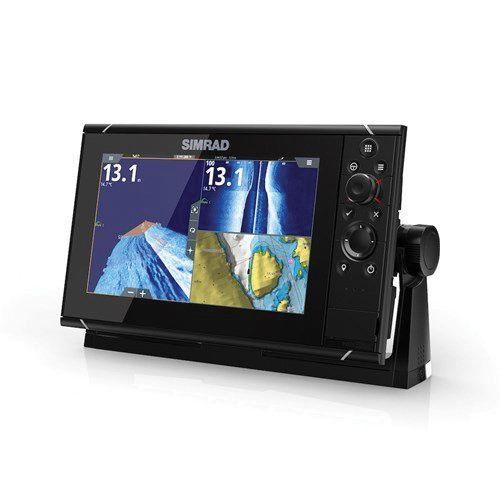

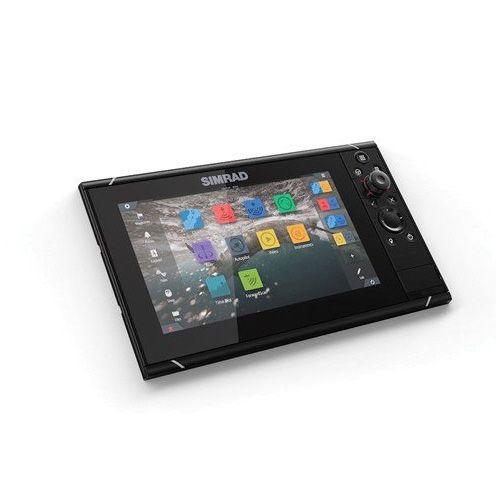

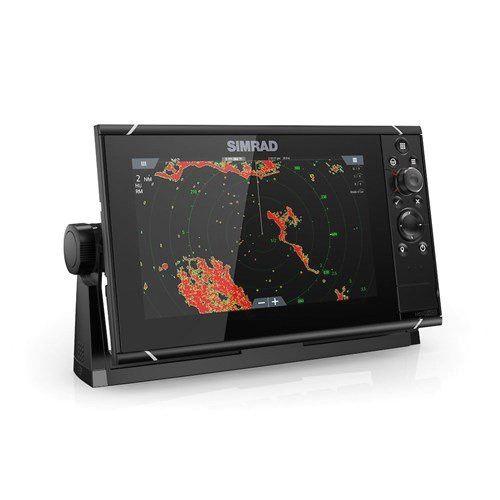

The Simrad NSS9 EVO3S Combo MFD, US C-MAP is a chartplotter with an 11.3 x 6.55 x 3.5 in housing. The unit operates as a multi-function chartplotter/fishfinder display for marine electronics installers building or refitting Simrad helm panels with US C-MAP chart coverage.
Technical Specifications
| Product Category | Chartplotters |
|---|---|
| Display Function | Multi-function chartplotter/fishfinder |
| Weight | 9 lb (4.08 kg) |
| Dimensions | 11.3 x 6.55 x 3.5 in (287.0 x 166.4 x 88.9 mm) |
| Chart Package | US C-MAP |
| Connection Type | Ethernet |
| Transducer | No transducer included |
| Mounting Hardware | Panel mounting kit |
| Processor Reference | iMX8 referenced for charting experience |
Compatibility & Applications
- Fits Simrad NSS9 evo3S helm installations using a multi-function display.
- Mounts in a helm panel with the referenced panel mounting kit.
- Pairs with US C-MAP chart data identified for this configuration.
- Wires to Ethernet connections listed for NSS9 evo3S installations.
- Drops into chartplotter/fishfinder MFD configurations without an included transducer.
- Includes a display configuration separated from transducer selection or reuse.
During a helm panel refit, the unit gives installers a 9 lb chartplotter/fishfinder MFD with listed Ethernet connectivity and a panel mounting kit. The no-transducer package differs from bundled sonar kits by leaving the transducer choice outside the display package.
