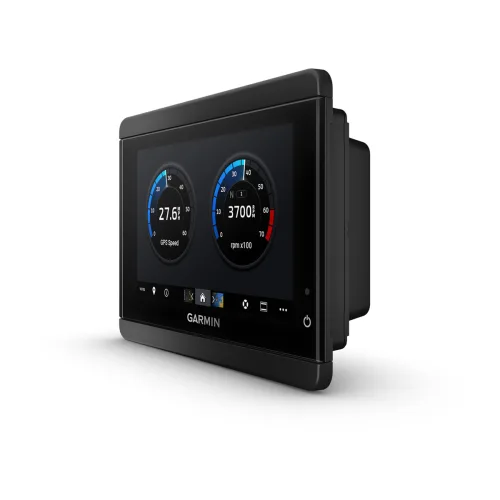

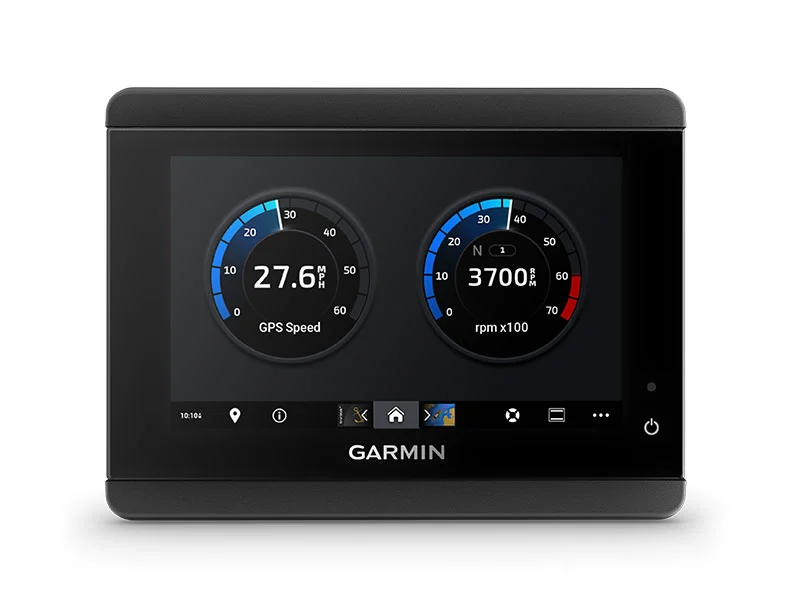

TD 50 Touchscreen Display
$699.99
TD 50 is a 5” touchscreen display that lets you connect with your boat systems, sensors, and media for supplementary control, switching and data monitoring.
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
ADD MORE ACCESS TO YOUR BOAT SYSTEMS’ MONITORING AND CONTROL
Extra touchscreens let you easily connect with your boat systems, sensors and media for supplementary control, switching and data monitoring from virtually any suitable mounting location on board.
CONTROL AT YOUR FINGERTIPS

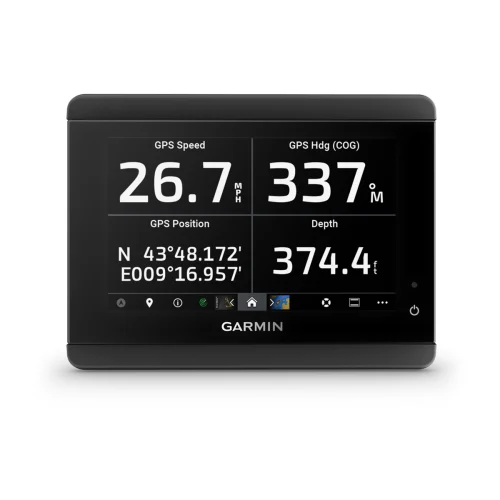

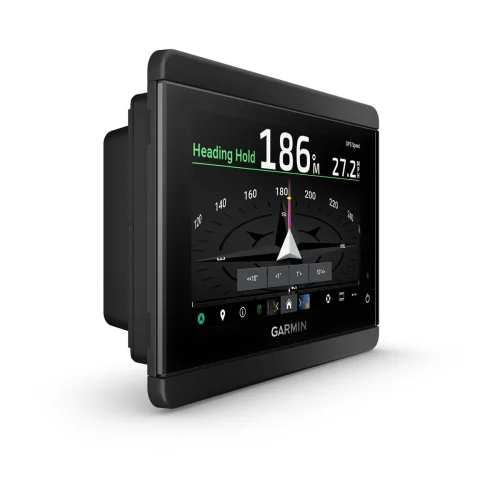

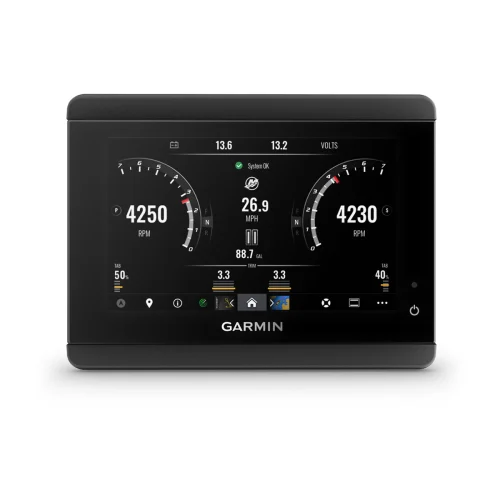

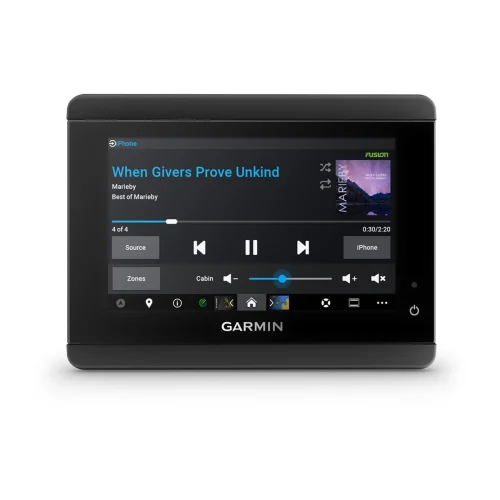

Wherever you need some extra system access on board, the 5” TD 50 touchscreen fits the need. View engine and systems data, or adjust settings for lights, climate control, entertainment, security sensors, autopilots and more.
SCALABLE TECHNOLOGY
The easy-to-use and easy-to-install TD 50 touchscreen can work as an extra display at the helm station or for below-deck networked access to switching functions and data monitoring throughout your vessel.
EASY SYSTEM INTEGRATION

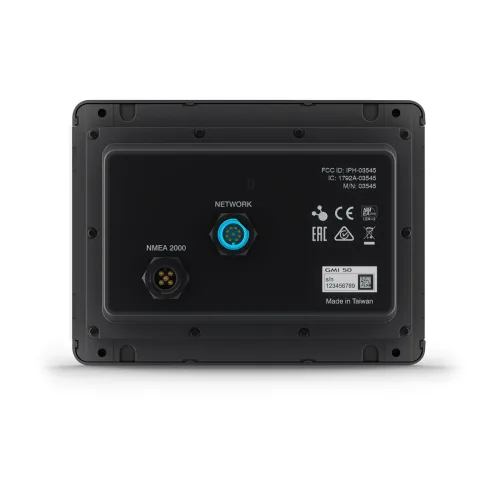

For integrated digital control on board, the TD 50 touchscreen display is compatible with NMEA 2000, third-party OneHelm™ systems, EmpirBus and the Garmin Marine Network. System connectivity couldn’t be simpler.
INTUITIVE INTERFACE

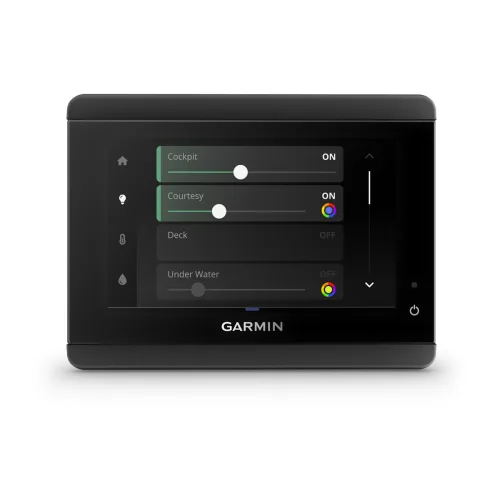

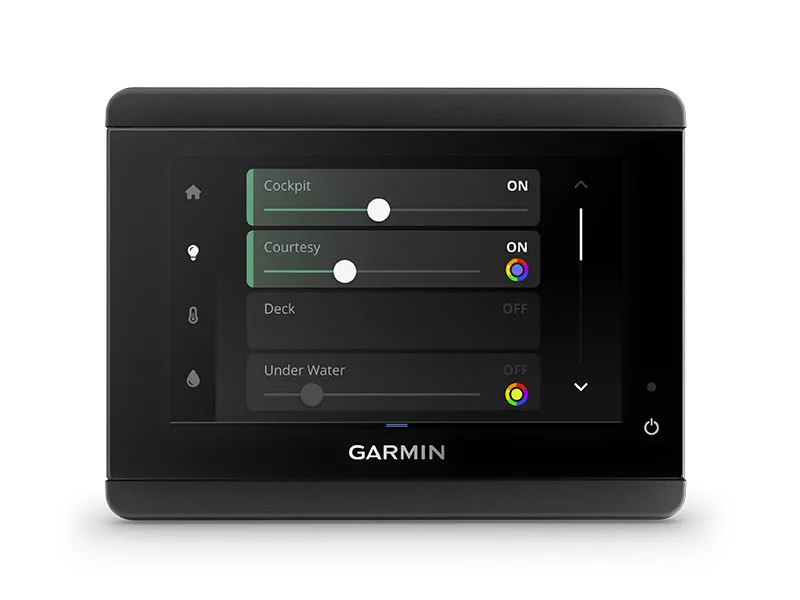

Touchscreen control through an easy graphical interface lets you access multiple switching and monitoring functions for electrical components throughout your boat.
VERSATILE MOUNTING OPTIONS

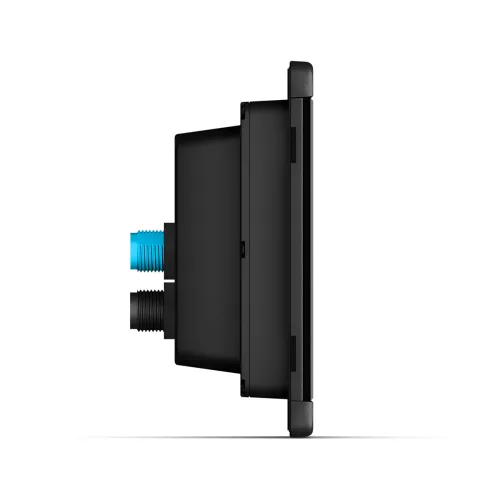

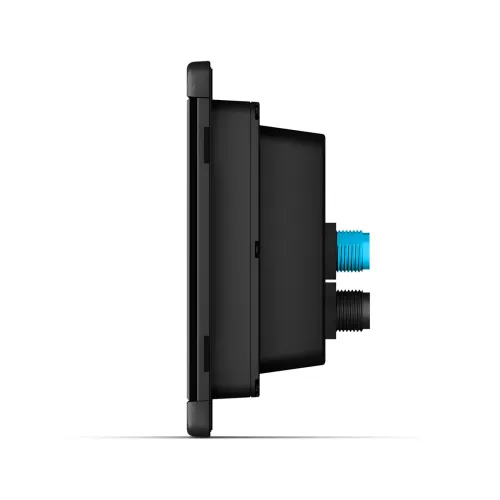

The TD 50 unit’s slimline design, minimal footprint and flat- or flush-mounting options enable installation in virtually any onboard location where auxiliary system access is needed.
RUGGED, DURABLE DESIGN
Water-rated to IPX7 standards, the TD 50 touchscreen is built for harsh marine environments. The bright LCD screen offers crisp, clear daylight visibility, adjustable backlighting and a wide viewing angle for excellent readability wherever it’s used on board.
Additional information
| Dimensions without sun cover (HxWxD) | 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm) |
|---|---|
| Dimensions with sun cover (HxWxD) | 4.5" x 5.7" x 2.2" (11.3 x 14.4 x 5.6 cm) |
| Weight without sun cover | 11.6 oz (328 g) |
| Weight with sun cover | 13.2 oz (375 g) |
| Temperature range | from 5° to 131° F (from -15° to 55° C) |
| Compass-safe distance | 7.9" (20 cm) |
| Case material | fully-gasketed polycarbonate |
| Lens material | glass with anti-glare and anti-fingerprint finish |
| Water rating | IPX7 |
| Brightness | 1200 cd/m2 (NIT) |
| Power usage | 5.9 W max |
| NMEA 2000® input voltage | 9-16 Vdc |
| NMEA 2000 LEN @ 9 Vdc | 13 (650 mA) |
| Brand | Garmin |
General
| Dimensions without sun cover (HxWxD) | 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm) |
|---|---|
| Dimensions with sun cover (HxWxD) | 4.5" x 5.7" x 2.2" (11.3 x 14.4 x 5.6 cm) |
| Weight without sun cover | 11.6 oz (328 g) |
| Weight with sun cover | 13.2 oz (375 g) |
| Temperature range | from 5° to 131° F (from -15° to 55° C) |
| Compass-safe distance | 7.9" (20 cm) |
| Case material | fully-gasketed polycarbonate |
| Lens material | glass with anti-glare and anti-fingerprint finish |
| Water rating | IPX7 |
| Brightness | 1200 cd/m2 (NIT) |
| Power usage | 5.9 W max |
| NMEA 2000® input voltage | 9-16 Vdc |
| NMEA 2000 LEN @ 9 Vdc | 13 (650 mA) |
- TD 50
- Trim piece snap cover
- Protective cover
- Drop cable for the NMEA 2000® Network
- T-connector for the NMEA 2000 Network
- Mounting hardware
- Documentation
- Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
