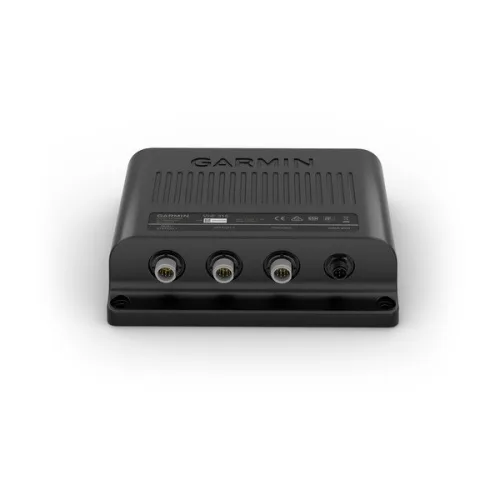

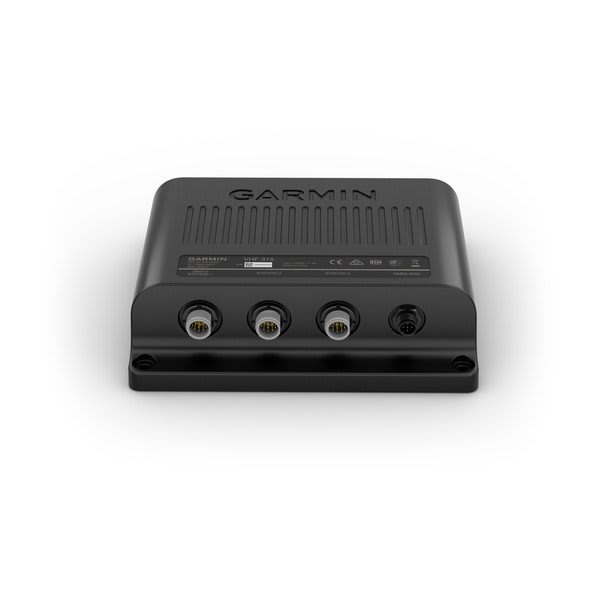

VHF 315 Marine Radio

Name: VHF 315 Marine Radio | Marine Overhauling
Brand: Garmin
SKU: 010-02047-00
Price: 849.99 USD
Availability: OutOfStock

SKU: 010-02047-00 MFG#: 010-02047-00 UPC: 753759205522

The VHF 315 Marine Radio includes a fist mic handset, intercom system, built-in GPS & allows you to stay in contact with via the Garmin the NMEA 2000 network.

$849.99

Out of stock

Compare

Add to wishlist

12 People watching this product now!

Payment Methods:

Description
Additional information

VHF 315 Marine Radio

The VHF 315 Marine Radio is a VHF radio featuring a power output of 25 W and a built-in GPS, designed for effective communication in marine environments. It integrates with the Garmin NMEA 2000 network to enhance data sharing and connectivity.

Compatibility & Applications

Mounts on console or dashboard of vessels up to 40 ft.
Integrates with Garmin NMEA 2000 networks for data sharing.
Pairs with compatible GPS devices for enhanced navigation.
Replaces older VHF models such as Standard Horizon GX1700.
Supports intercom communications for crew on larger vessels.
Fits into standard mounting brackets for easy installation.

The unit is designed for reliable communication in marine settings, facilitating emergency and routine communications. Its integration with the Garmin NMEA 2000 network allows for enhanced situational awareness, distinguishing it from generic VHF radios.

Technical Specifications

Weight	3.40 lbs
Dimensions (L × W × H)	8.10 × 7.10 × 2.40 in

Weight	3.4 lbs
Dimensions	8.1 × 7.1 × 2.4 in
Unit size	205 x 181 x 60 mm (8.1″ x 7.1″ x 2.4″)
Operating voltage	10.8 – 15.6 VDC
Water rating	IPX7
Display Type	monochrome FSTN LCD
Region	All U.S., Canadian. and International marine channels; NOAA weather channels
VHF frequency range Tx	156.025–162.025 MHz
VHF frequency range Rx	156.050 MHz to 163.275 MHz (including WX channels)
VHF transmit power (max)	25 W, 1 W (high, low)
Transmitter frequency tolerance	+/0.5 kHz
Adjacent channel power	70 dB
Spurious emissions	-80 dBc (at 25 W)/0.25uW
Sensitivity (12 dB SINAD)	-118 dBm (-11 dBu/0.28 uV)
Adjacent channel selectivity	70 dB
Spurious response	70 dB
VHF intermodulation	68 dB
Max antenna gain	9 dBi
Class	Class D
Sensitivity (1% BER)	-113 dBm
Intermodulation	68 dB
Remote station support	GHS 11 (x3)
Constellations	GPS, GLONASS
Differential support	WAAS, EGNOS
Navigation rate	1 Hz
Max external speaker output power	active speaker, 4 W
Max hailer loudspeaker output power	20 W at 4 Ω
Typical current draw at 12 Vdc	600 mA, 6 A max
Compass-safe distance	2″ (5 cm)
External GNSS antenna connector	BNC
Ant connector	SO-239 (50 Ω)
Power Output	25 W
Frequency Range	156.050 – 162.025 MHz
Dimensions	6.1 x 5.9 x 2.3 in (155 x 150 x 58 mm)
Weight	1.5 lbs (0.68 kg)
Operating Temperature	-4°F to 158°F (-20°C to 70°C)
IP Rating	IPX7
Included Accessories	Fist mic handset, mounting hardware
Country of Origin	USA
Warranty	2 years
Connector Type	Standard NMEA 2000 connector
