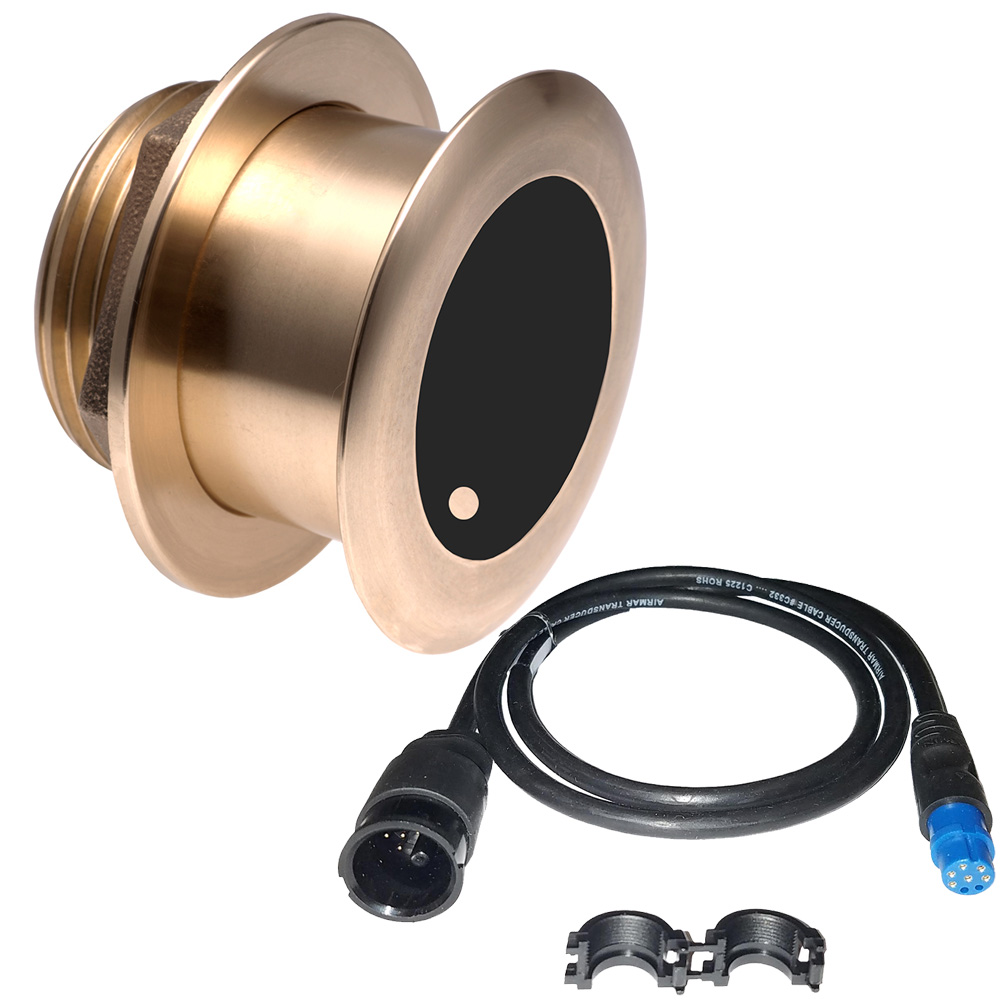

Airmar B175HW Bronze 20 Degree Thru-Hull 1kW Transducer
Airmar’s bronze 20-degree thru-hull transducer provides 1 kW of power for depth and water-temperature sensing. The CHIRP-ready unit operates from 150 to 250 kHz and is installed by marine technicians through fiberglass or wood hulls using a Garmin 8-pin connection.
Technical Specifications
| Power Rating | 1 kW |
|---|---|
| Housing | Bronze |
| Functions | Depth and temperature |
| High Frequency | 150-250 kHz |
| Beamwidth | 25° constant high-wide beam |
| Maximum Depth | 152 m |
| Maximum Deadrise | 24° |
| Hole Size | 95 mm |
| Usable Shaft Length | 71 mm |
| Connector | Garmin 8-pin |
Compatibility & Applications
- Fits fiberglass or wood hulls with a maximum deadrise of 24°.
- Mounts through a 95 mm hull opening with a 71 mm usable shaft.
- Pairs with Garmin systems through an 8-pin CHIRP transducer connection.
- Fits vessels up to 11 m length overall.
- Mounts on stepped, planing, or displacement hulls when installed properly.
For a fiberglass planing hull, an installer can position the unit through the specified 95 mm opening. Its constant 25° beam covers 100 kHz of bandwidth across the 150-250 kHz high-frequency range.
FAQ
What is the Airmar B175HW?
It is a bronze, 20-degree tilted-element thru-hull CHIRP transducer for depth and water-temperature sensing.
What connector does the transducer use?
The unit uses a Garmin 8-pin connector for CHIRP transducers.
What hull materials support installation?
The bronze housing is specified for fiberglass or wood hulls.
