Airmar B175M Bronze 0 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector

Airmar marine products include transducers, network parts, and navigation parts and accessories. Model families include the R-series, B-series, and TM-series transducers, with CHIRP options across in-hull, thru-hull, and transom-mount designs.

Part Number: B175C-0-M-8G · Category: Transducers

Airmar

Original price was: $1,479.99.Current price is: $1,337.99.

In stock · ships from Pompano Beach, FL

1 in stock

Request a QuoteSeveral units or a fleet job? Ask for volume pricing.
Item
Shipping
Total
Oversize item: call (786) 277-2596 for a freight quote.
Ships from Pompano Beach, FL. Rate shown is for Florida (1-2 business days); other states 1 to 7 business days, exact rate by ZIP at checkout.
★★★★★ 5.0 rated on Google (21 reviews) · ✓ 30-day returns · ✓ Secure payment by Stripe

We sell it. We install it.

Professional marine electronics installation available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing
  • Ships from Pompano Beach, FL, United States.
  • Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
  • Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
  • Product images and specifications are supplied by the manufacturer.
Shipping & returns policy
0 People watching this product now!

Payment Methods:

Product details

BrandAirmar
Part NumberB175C-0-M-8G
CategoryTransducers
AvailabilityIn stock
Ships fromPompano Beach, FL · 1 business day handling
InstallationAvailable in Pompano Beach and Broward County
Weight11.40 lbs

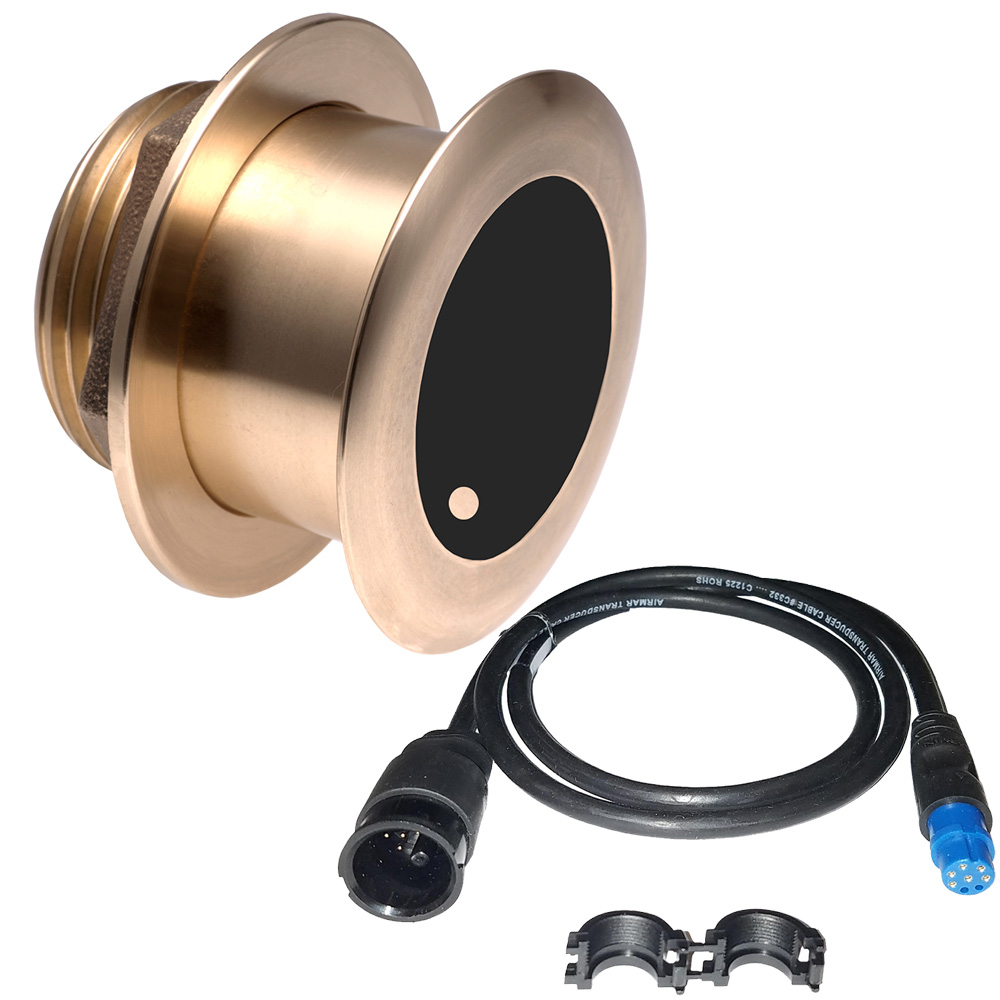

Airmar B175M Bronze 0 Degree Thru-Hull 1kW Transducer

Airmar’s B175M is a bronze CHIRP-ready thru-hull transducer with a 1 kW power rating and Garmin 8-pin connector. The unit provides depth and fast-response water-temperature sensing for fishing installations, with a 0° tilted element intended for fiberglass or wood hulls and recommended for stepped, planing, or displacement hulls.

Technical Specifications

Power Rating 1 kW
Medium Frequency 85-135 kHz
Maximum Depth 457 m (1500 ft)
Beamwidth 16°-11°
Housing Bronze
Functions Depth and temperature
Hull Material Fiberglass or wood
Hole Size 95 mm (3-3/4 in) fiberglass or wood hull, 105 mm (4-1/8 in) metal hull
Usable Shaft Length 55 mm (2.18 in)
Acoustic Window Urethane

Compatibility & Applications

  • Fits fiberglass or wood hulls with the bronze thru-hull housing.
  • Mounts on stepped, planing, or displacement hulls.
  • Wires to Garmin systems through an 8-pin connector.
  • Fits hulls with a maximum deadrise angle of 24°.

A fiberglass hull installation can use the bronze housing through a 95 mm hole, with the 0° element oriented horizontally. Its differentiator is 85-135 kHz medium-frequency CHIRP operation with 50 kHz total bandwidth and 457 m maximum depth.

FAQ

What does the transducer measure?

It measures depth and water temperature, including fast-response temperature sensing.

What connector does the transducer use?

The unit uses a Garmin 8-pin connector and a Garmin 8-Pin Mix & Match cable for CHIRP transducers.

What power rating does it have?

The transducer has a 1 kW power rating.

Weight11.40 lbs
Dimensions12.00 × 10.00 × 8.00 in
MFG#B175C-0-M-8G
UPC801769007244
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Airmar B175M Bronze 0 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

Airmar marine products include transducers, network parts, and navigation parts and accessories. Model families include the R-series, B-series, and TM-series transducers, with CHIRP options across in-hull, thru-hull, and transom-mount designs.

Description

Airmar B175M Bronze 0 Degree Thru-Hull 1kW Transducer

Airmar’s B175M is a bronze CHIRP-ready thru-hull transducer with a 1 kW power rating and Garmin 8-pin connector. The unit provides depth and fast-response water-temperature sensing for fishing installations, with a 0° tilted element intended for fiberglass or wood hulls and recommended for stepped, planing, or displacement hulls.

Technical Specifications

Power Rating 1 kW
Medium Frequency 85-135 kHz
Maximum Depth 457 m (1500 ft)
Beamwidth 16°-11°
Housing Bronze
Functions Depth and temperature
Hull Material Fiberglass or wood
Hole Size 95 mm (3-3/4 in) fiberglass or wood hull, 105 mm (4-1/8 in) metal hull
Usable Shaft Length 55 mm (2.18 in)
Acoustic Window Urethane

Compatibility & Applications

  • Fits fiberglass or wood hulls with the bronze thru-hull housing.
  • Mounts on stepped, planing, or displacement hulls.
  • Wires to Garmin systems through an 8-pin connector.
  • Fits hulls with a maximum deadrise angle of 24°.

A fiberglass hull installation can use the bronze housing through a 95 mm hole, with the 0° element oriented horizontally. Its differentiator is 85-135 kHz medium-frequency CHIRP operation with 50 kHz total bandwidth and 457 m maximum depth.

FAQ

What does the transducer measure?

It measures depth and water temperature, including fast-response temperature sensing.

What connector does the transducer use?

The unit uses a Garmin 8-pin connector and a Garmin 8-Pin Mix & Match cable for CHIRP transducers.

What power rating does it have?

The transducer has a 1 kW power rating.
