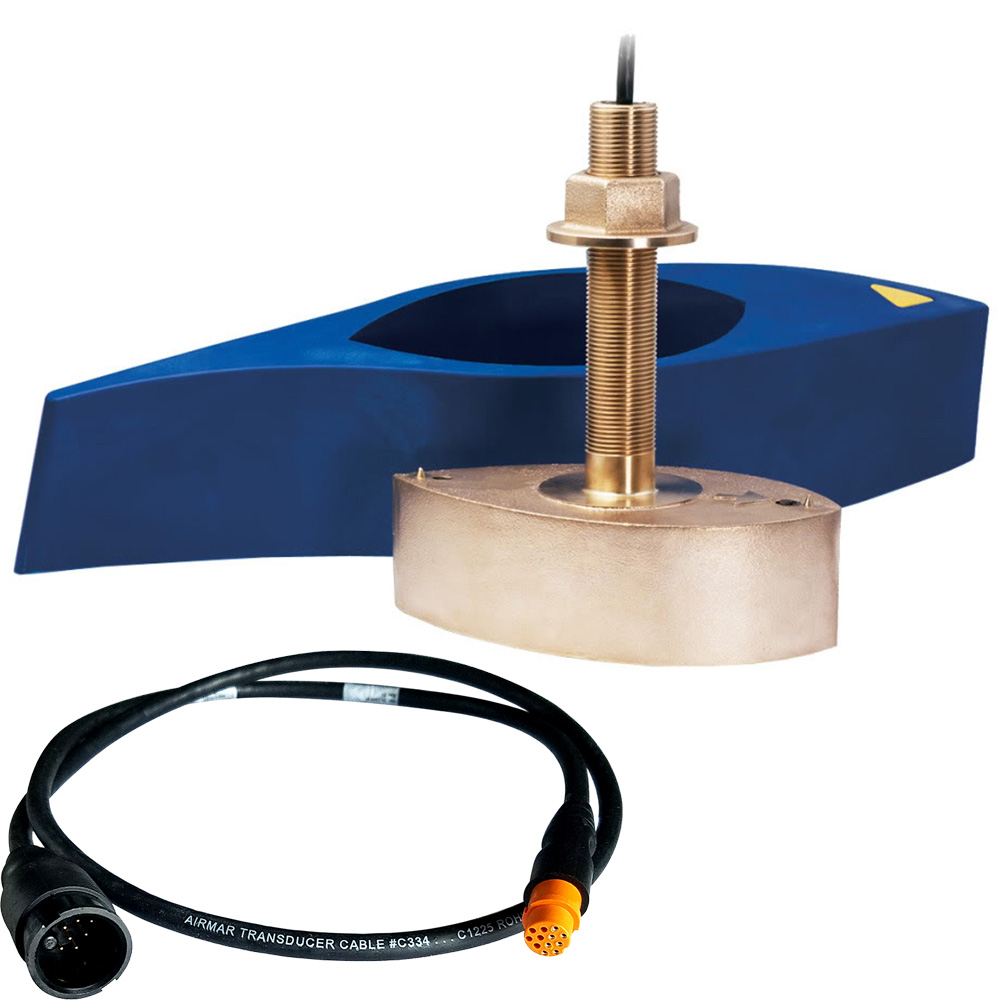

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

Features:

  • Garmin 12-Pin Mix & Match Cable for Chirp Transducers
  • Depth and fast-response water-temperature sensing
  • 1KW of power for great deep-water performance from the low frequency
  • Low frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3000')
  • High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper water column
  • Bronze housing with High-performance Fairing for optimal performance at higher speeds
  • Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
  • Patented Xducer ID® technology

Specifications

  • Brand: Airmar Technology
  • Acoustic Window: Urethane
  • Cable-Length: 10 m (33')
  • Common Use: Fishing, Commercial Fishing
  • Connector: Garmin 12-Pin
  • Country of Origin: USA
  • Cross Reference: 010-12183-20
  • Deadrise Range: Up to 28° with fairing
  • Display Connector: 12G
  • Frequency Band: Low-High Wide
  • High Frequency: 150-250 kHz
  • High-Wide Beamwidth: 25°
  • Low Frequency: 42-65 kHz
  • Low Frequency Beamwidth: 25°-16°
  • Material: Bronze
  • Max Deadrise: Up to 20° with fairing
  • Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
  • Mix and Match Series: 12-Pin Chirp
  • Sensor Connector: MMC
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 7.3 kg (16 lbs.)
  • Power Rating: 1 kW
  • Max Deadrise Angle: 20°
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Mounting Style: Thru-Hull with Fairing
  • Max Vessel LOA: 8 m (25') and above
  • Hole Size: 30 mm (1-3/16")
  • Usable Shaft Length: 121 mm (4.75")

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Weight24.30 lbs
Dimensions25.00 × 18.00 × 7.00 in
MFG#B275C-LHW-12G
UPC801769008692
