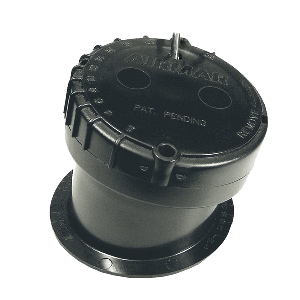

Airmar P79 NMEA 2000 In-Hull 235 kHz Transducer
The Airmar P79 is an in-hull transducer operating at 235 kHz with an 11° cone. The unit provides depth readings through the hull, uses a bonded liquid-filled base with a twist-lock transducer, and connects through NMEA 2000. Marine installers use it on solid fiberglass hulls, aluminum hulls, RIBs and racing sailboats.
Technical Specifications
| Mounting Style | In-hull |
|---|---|
| Frequency | 235 kHz |
| Beam Cone | 11° |
| Adjustable Hull Deadrise | Up to 22° |
| Function | Depth only |
| Network Cable | 6 m NMEA 2000 cable and connector |
| Aluminum Hull Thickness | Under 0.38 mm |
| Installation Method | Base bonded to hull, transducer attaches with twist lock |
Compatibility & Applications
- Fits solid fiberglass hulls for in-hull depth measurement without hull protrusions.
- Fits aluminum hulls under 0.38 mm when epoxied to the hull.
- Mounts inside planing-hull power boats, trailered boats, RIBs and racing sailboats.
- Adjusts to hull deadrise angles up to 22° for vertical beam orientation.
- Wires to NMEA 2000 systems through the 6 m cable and connector.
On a trailered planing-hull power boat with a solid fiberglass hull, the base bonds inside the hull and the transducer locks into it without drilling holes. The liquid-filled base and separate twist-lock transducer distinguish this assembly from a traditional puck transducer.
FAQ
What does the transducer measure?
The unit provides depth-only readings.
What cable connection does the unit use?
The assembly includes a 6 m NMEA 2000 cable and connector.
What hull deadrise can the unit accommodate?
The adjustable design accommodates hull deadrise angles up to 22°.
