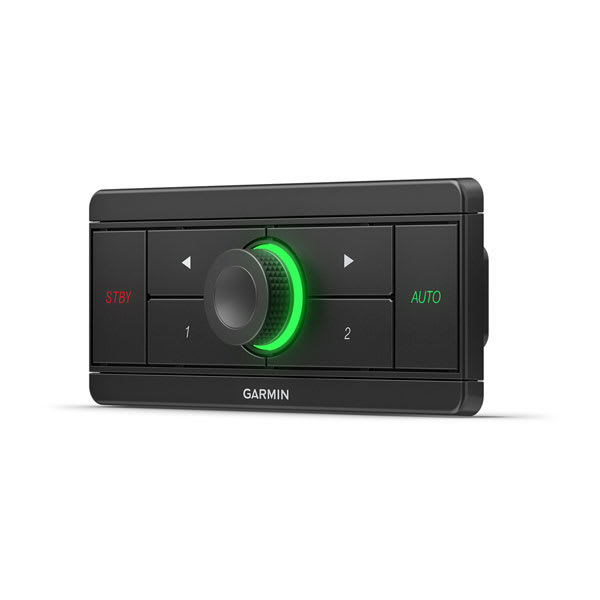

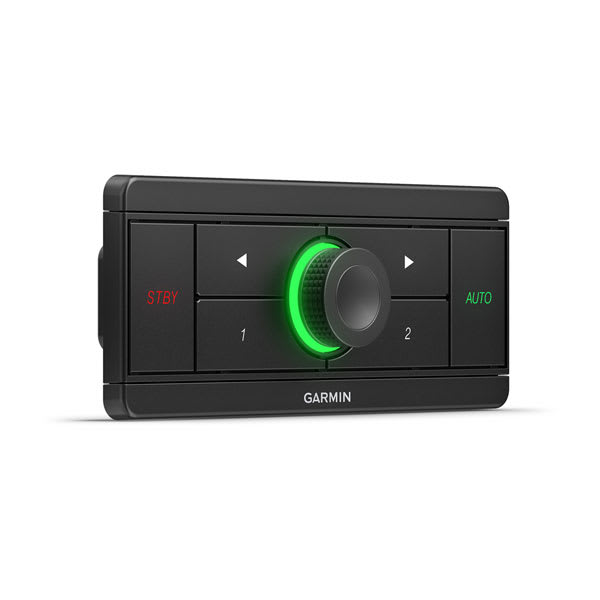

Garmin APK™ 10 Autopilot Keypad Autopilot Control
The Garmin APK 10 Autopilot Keypad is an autopilot control keypad available in horizontal and vertical orientations. It controls a Reactor 40 boating autopilot with knob and button activation for heading changes, and marine electronics installers wire it into a boat NMEA 2000 network.
Technical Specifications
| Orientation options | Horizontal, vertical |
|---|---|
| Weight | 4.09 lb (1.86 kg) |
| Dimensions | 6.2 x 1.6 x 0.28 in (157.5 x 40.6 x 7.1 mm) |
| Autopilot compatibility | Garmin Reactor 40 boating autopilot |
| Network cable included | 2 m backbone/drop cable with T-connector for NMEA 2000 network |
| Mounting hardware included | Flush and surface mounting hardware |
| Documentation | Included in the box |
Compatibility & Applications
- Fits all Garmin Reactor 40 Autopilots for keypad control.
- Mounts in horizontal or vertical orientation at a helm.
- Wires to a boat NMEA 2000 network with one port and cable.
- Pairs with knob and button activation for autopilot heading changes.
- Mounts with flush or surface mounting hardware included in the box.
- Drops into new or existing helm layouts with horizontal or vertical versions.
For a helm already carrying a Reactor 40 system, the horizontal version can be wired through the included 2 m NMEA 2000 backbone/drop cable and T-connector. The differentiator versus a generic keypad is documented Reactor 40 autopilot compatibility.
