B&G Triton Digital Display

Name: B&G Triton Digital Display | Marine Overhauling
Brand: B&G
SKU: B&GTRITON/DISPLAY
Price: 629.00 USD
Availability: InStock

SKU: B&GTRITON/DISPLAY

$629.00

2 in stock

Item

Shipping

Total

Ships from Pompano Beach, FL. Rate shown is for Florida (1-2 business days); other states 1 to 7 business days, exact rate by ZIP at checkout.

★★★★★ 5.0 rated on Google (21 reviews) · ✓ 30-day returns · ✓ Secure payment by Stripe

We sell it. We install it.

Professional marine electronics installation available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing

Ships from Pompano Beach, FL, United States.
Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
Product images and specifications are supplied by the manufacturer.

Shipping & returns policy

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

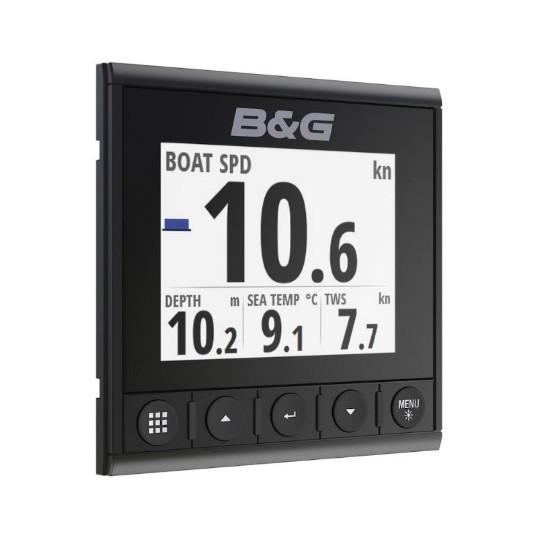

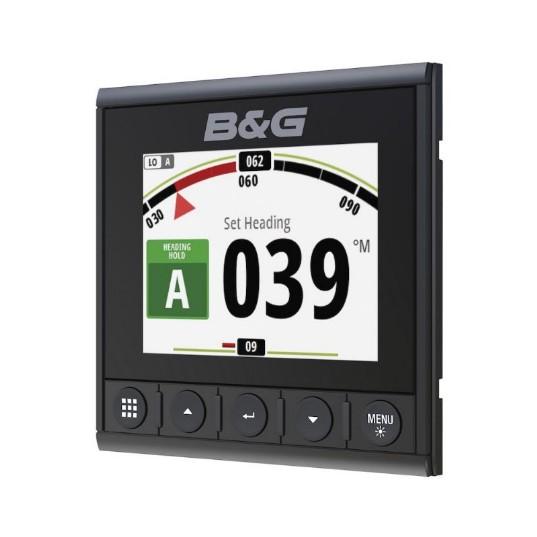

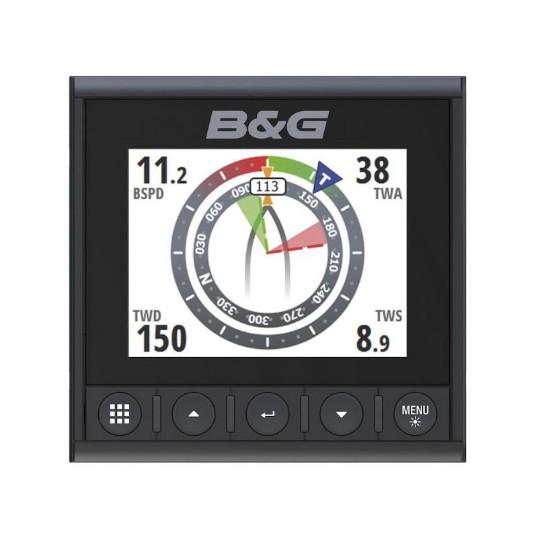

The B&G Triton² Digital Display is a multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen. The screen is optically bonded for zero condensation and uses trans-flective LCD technology for contrast in all light, and its 8mm mounting height matches other B&G displays.

Screen: 4.1 in colour, 320 x 240
Network: 1 x NMEA 2000 Micro-C port, 3 LEN
Supply voltage: 12V DC (10 to 16V DC)
Power consumption: 1.4W typical, 1.8W max
Waterproof rating: IPx7
Part number: 000-13294-001

Weight	0.7 lbs
Dimensions	4.6 × 4.5 × 1.1 in
Display Size	4.1 in (diagonal), 4:3 aspect ratio
Display Type	Transflective TFT-LCD, optically bonded
Backlight	White LED — white for day mode; red, green, blue, or white for night mode
Current Draw	150 mA
Mounting Depth	8 mm
Panel Cutout	115 mm H × 105 mm W with 14 mm radiused corners
Waterproof Rating	IPX7
Storage Temperature	−30 to +70 °C (−22 to +158 °F)
Data Interface	NMEA 2000, SimNet, NMEA 0183
Certification	NMEA 2000® certified
Warranty	Two years (manufacturer)
Included Accessories	Screw jig, mounting template, sun cover, fasteners, 2 ft Micro-C drop cable, Micro-C T-connector, removable bezel
MFG#	000-13294-001

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “B&G Triton Digital Display”

Your email address will not be published. Required fields are marked *

Your rating *

Value for money

1 2 3 4 5

Durability

1 2 3 4 5

Delivery speed

1 2 3 4 5

Your review *

Pros

Cons

Name *

Email *

Description

The B&G Triton² Digital Display is a multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen. The screen is optically bonded for zero condensation and uses trans-flective LCD technology for contrast in all light, and its 8mm mounting height matches other B&G displays.

Screen: 4.1 in colour, 320 x 240
Network: 1 x NMEA 2000 Micro-C port, 3 LEN
Supply voltage: 12V DC (10 to 16V DC)
Power consumption: 1.4W typical, 1.8W max
Waterproof rating: IPx7
Part number: 000-13294-001

Specification

Overview

Weight	0.7 lbs
Dimensions	4.6 × 4.5 × 1.1 in
Display Size	4.1 in (diagonal), 4:3 aspect ratio
Display Type	Transflective TFT-LCD, optically bonded
Backlight	White LED — white for day mode; red, green, blue, or white for night mode
Current Draw	150 mA
Mounting Depth	8 mm
Panel Cutout	115 mm H × 105 mm W with 14 mm radiused corners
Waterproof Rating	IPX7
Storage Temperature	−30 to +70 °C (−22 to +158 °F)
Data Interface	NMEA 2000, SimNet, NMEA 0183
Certification	NMEA 2000® certified
Warranty	Two years (manufacturer)
Included Accessories	Screw jig, mounting template, sun cover, fasteners, 2 ft Micro-C drop cable, Micro-C T-connector, removable bezel
MFG#	000-13294-001
