12V DC Power Supply
Integrated EasyStart
Compact Design
Titanium Condenser Coil
ABS Insulated Pan
Quiet
Turbo Blower
Universal Board
Reverse Cycle Heating
Digital Control Included

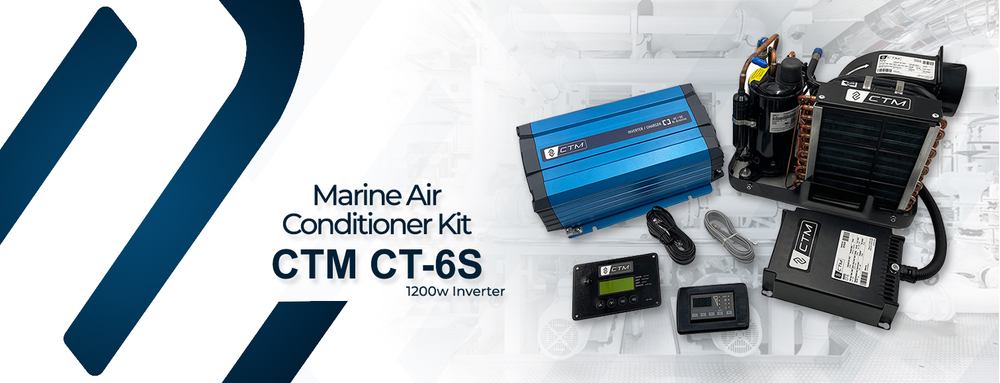

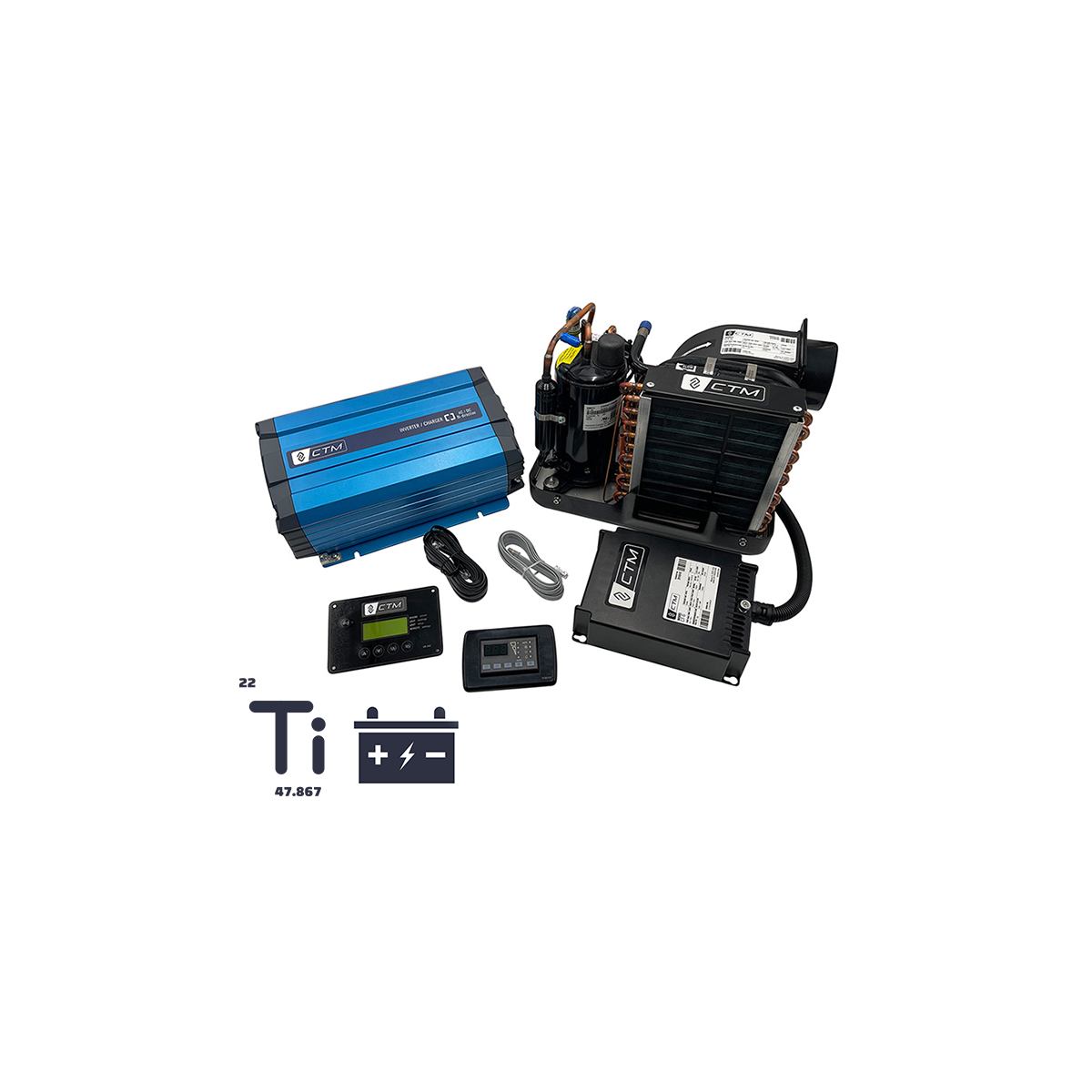

CTM CT-6S 6,000 BTU Marine Air Conditioner – 12 Volt Marine Air Conditioner Kit – 60HZ – Turbo Blower
6,000 BTUs of powerful, quiet, and efficient cooling. 12V Marine Air Conditioner Kit. Titanium circulating coils, stainless steel bolts, and stainless steel structural pan with ABS tray ensure long-lasting, corrosion-proof performance in even the toughest of marine environments. 2-Year Warranty*. Patent number.: US 12,030,610 B2

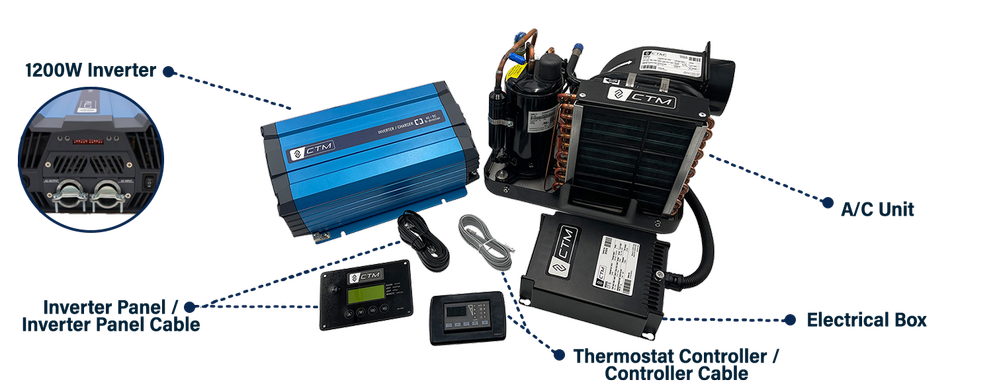

The quiet, powerful, and efficient CTM is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The CTM CT-6 12 Volt Marine Air Conditioning Kit comes with everything you need to make the unit work on DC power, from the inverter to the self-contained marine AC unit.
CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a self-contained marine air conditioner that raises the bar on quality and performance.
Also Substitutes the following Part Numbers
| CTM Unit Part Number | Description | Fits OEM Part number | OEM Description |
| 21601C | CT-6 115V 60HZ 410A | 205160066 | DOMETIC DTG6 115V 50/60HZ 410A |
| 205160060 | DOMETIC DTU6 115V 60HZ 410A | ||
| 205561250 | CRUISAIR STQ6-410A 115V 60HZ | ||
| 205561255 | CRUISAIR STX6-410A 115V 60HZ ONLY | ||
| 205561200 | MARINE AIR VTD6K-410A 115V 60HZ ONLY | ||
| 207500306 | DOMETIC ECD6K/1-HV 410A KIT, 115V 60 HZ | ||
| 205200150 | DOMETIC GVTX10 115-230 50/60HZ |
And while lightweight and with a small footprint, the CTM CT includes titanium circulating coils, a high-velocity rotatable turbo blower (rotates less than 250 degrees), stainless steel bolts, and a stainless steel structural pan with Plastic ABS tray in order to ensure long-lasting, corrosion-proof performance in even the toughest of marine environments.
All CTM Control Boards, Temperature Sensors, and cables are made in the United States under strict quality standards. Every CTM Unit comes with an industry-standard 2-year warranty*, knowledgeable and attentive customer service, and ships ground to you free of charge within the US.
As marine A/C retailers, as well as boaters ourselves, we know what boaters are looking for in a marine A/C system — and this is exactly what the CTM line delivers. Any questions on setting up the 12V Marine Air Conditioner, just contact us.
CTM CT Unit vs Dometic DTG and Webasto FCF Platinum
Specifications:
- Capacity
- 6,000 BTU
- Voltage
- 100-120 V
- Cycle / Phase
- 60 Hz / 1Ph
- Current Consumption Input
- 5.6 A
- Fuse
- 15 A
- RLA / LRA
- 5.4 A / 21 A
- Refrigerant Type
- R410A
- Refrigerant Charge
- 7.8 oz / 220 gr
- Blower Airflow
- 271 CFM
- Blower Speed
- 1980 RPM
- High Velocity Blower
- Yes
- Min. Supply Duct Size
- 4 in / 102 mm
- Seawater In / Out
- 5/8″ / 5/8″
- Condenser Water Flow
- 2.5 GPM
- Net Weight
- 41 lbs / 18.6 kg
Specifications of the Inverter
- AC Output Voltage
- 100/110/115/120 V
- Rated Power
- 1200W
- Surge Power
- Load 101%~115% (1 Min) / Load 116%~200% (3 sec);2400 VA (2 Sec)
- Output Waveform
- Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load)
- Frequency
- 50/60 Hz ± 0.3 Hz (User-selectable)
- DC Input Voltage
- 12 V
- DC Input Voltage Range
- 10.5 ~ 16.5 VDC
- Fuse Max. / Min.
- 15 A / 10 A
- Efficiency
- >88%
- Operating Temperature
- -20℃ ~ 50℃, Power De-rating from 50°C to 60°C
- Storage Temperature
- -30 ℃~70 ℃
- Safety
- UL458 & Supplement SA / UL1741 , FCC class A
- Net Weight
- 10.12 lbs / 4.6 kg
Features of the CTM CT-6DC 12V Marine Air Conditioner Kit
12V DC Power Supply- Start the unit with a 12V DC power supply.
- Integrated EasyStart
- 4-part start ramp sequence that is self-optimizing, resulting in the lowest possible start-up current. EasyStart can deliver 65-75% start current reduction
- Compact Design
- Perfect drop-in replacement for all major marine A/C Brands. It’s compact design makes it the perfect unit for small spaces.
- Titanium Condenser Coil
- The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
- ABS Insulated Pan
- ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.
- Quiet
- Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.
- Turbo Blower
- High-velocity rotatable turbo blower that will cool or hear faster. Blower rotates less than 250 degrees.
- Universal Board
- Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor. Made in USA.
- Reverse Cycle Heating
- Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.
- Digital Control Included
- The CT-6S 12VDC Kit comes with the Elite II Digital Control Included. This control features automatic and dehumidify mode.

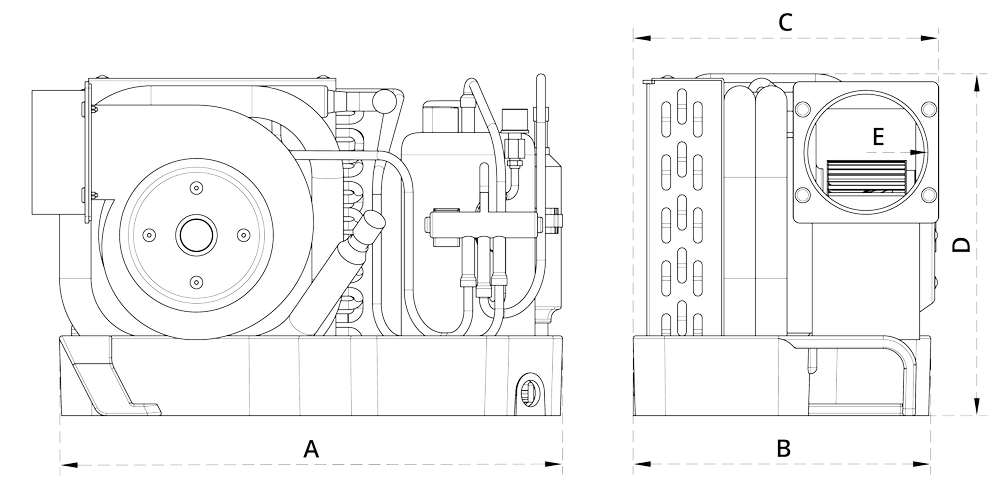

Dimensions:
A – Depth |
15.65 in / 39.8 cm |
|---|---|
B – Drain Pan Width |
9.25 in / 23.5 cm |
C – Width |
9.65 in / 24.5 cm |
D – Height |
11.2 in / 28.5 cm |
E – Min. Duct Diameter |
4 in / 10.2 cm |

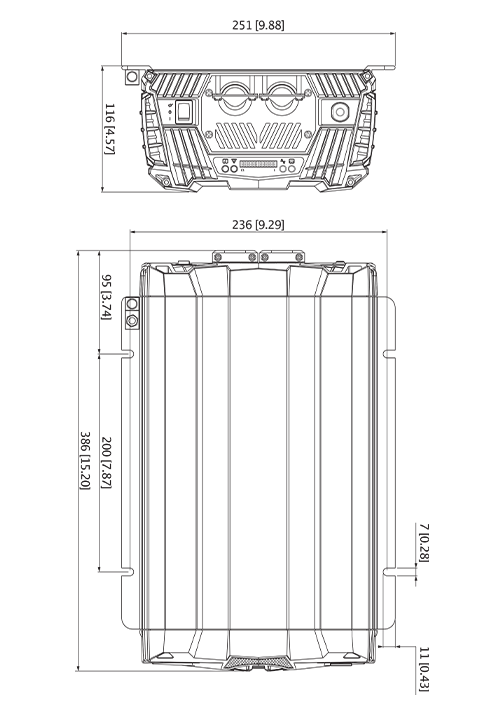

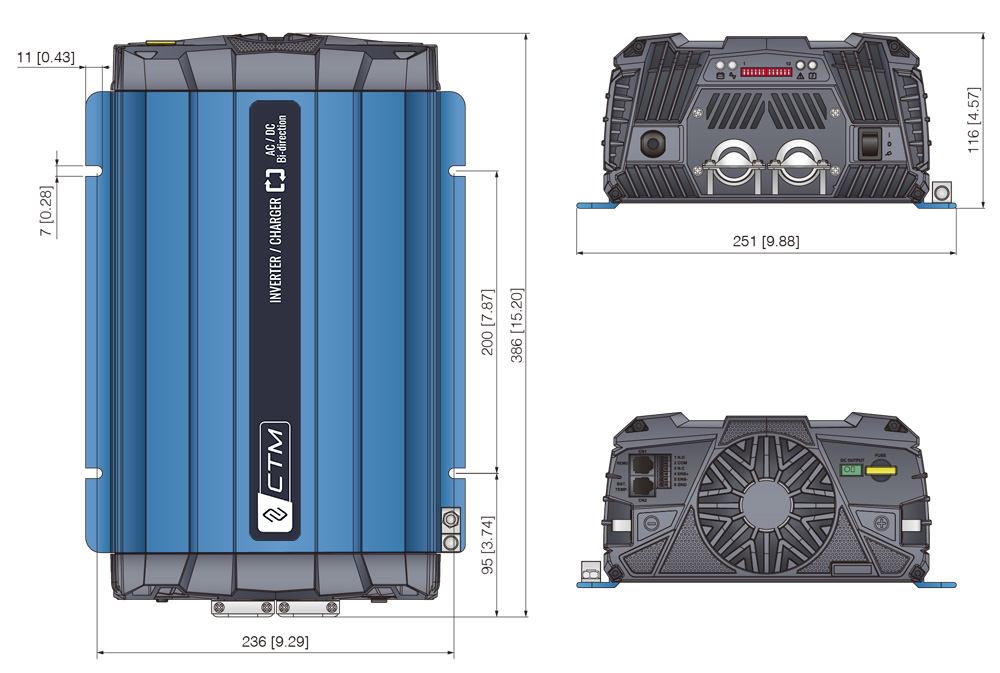

Dimensions of Inverter
Wiring diagram for the unit and inverter
Compatible with Most Thermostats
 |
 |
 |
 |

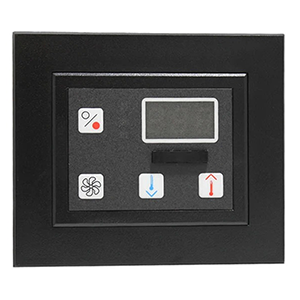

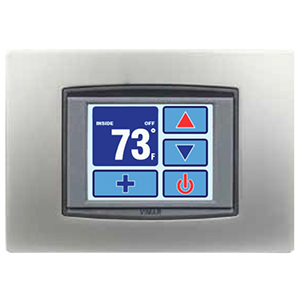

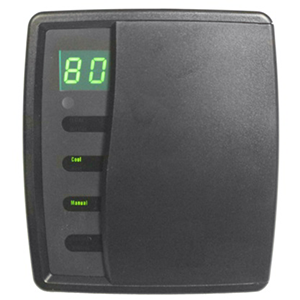

| Smart Touch / Easy Touch | CTM Elite II | Passport I/O | SMXir |
Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don’t have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o may need to replace your current controller in order for the unit to work properly.
NEW 2026 CTM Unboxing & Installation Tutorial |CTM) Marine Self-Contained A/C
More information on CTM
CTM Marine Air Conditioners – All New, Superior Marine Air Conditioning
CTM Marine Air Conditioners not only improve on the efficiency and performance of other top units on the market, but are more durable, longer-lasting A/C units, designed to withstand the harshest of marine environments. CTM units are also fully compatible with controls and thermostats from major marine A/C brands, and can be easily installed yourself, making them the perfect drop-in replacements for units from other brands.
Best Marine Air Conditioners? Best Brand, Support & Warranty?
Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.
To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.
Notes if replacing a Dometic DTU6, DTG6 or ECD6 – 115V
The CTM CT-6 115V marine air conditioning unit works as a good replacement for the Dometic DTG6 – 115V (205160066), DTU6 – 115V (205160060), or ECD6 – 115V (207500306). There are some specs that should be taken into consideration when replacing one of the units previously mentioned.
– Because the CT-6 unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers included: SMXir, Passport I/O, Smart Touch, Elite II.
– Waterline connections should be the same as the unit you are replacing, the CT-unit has a standard 5/8″ water connection.
– The CT-6 Unit has a 4-inch ducting ring whereas the Dometic comes with a 5 inch. It is a quick replacement as the ducting can be easily cinched down with a clamp.
– Dimensions wise this unit is very similar to the one you are replacing, so It shouldn’t be a major issue. However, it is suggested you double-check in order to avoid any issues when installing.
Warranty
The warranty period of registered CTM products is (3) three years, being the first year parts and labor, the second & third year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.
In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.
For more detailed information please download the Manual and refer to page 17.
