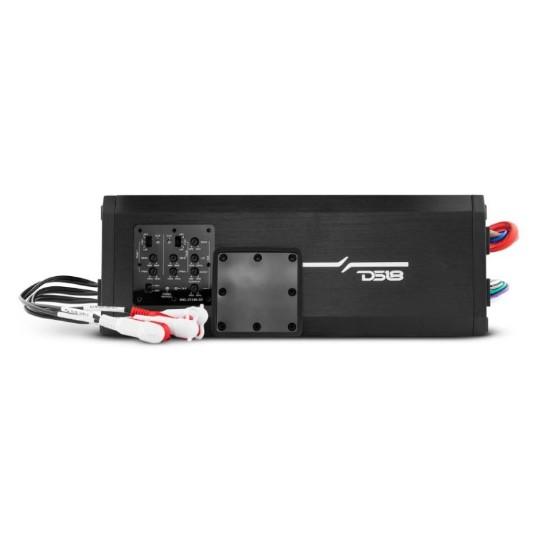

DS18NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier
The DS18NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier is a 5-channel Class D amplifier rated IP67. The unit provides four 150 W channels at 4 ohms and one 600 W channel at 2 ohms for marine and powersports audio-system installations.
Technical Specifications
| Amplifier Type | Full-range Class D |
|---|---|
| Channels | 5-channel |
| Environmental Rating | IP67 |
| 4-Ohm Output | 4 x 150 W at 4 ohms |
| 2-Ohm Output | 1 x 600 W at 2 ohms |
| Weight | 6.5 lb (2.95 kg) |
| Dimensions | 16 x 9 x 4 in (406.4 x 228.6 x 101.6 mm) |
Compatibility & Applications
- Fits marine audio-system builds using a 5-channel full-range Class D amplifier.
- Fits powersports audio installations requiring an IP67-rated amplifier chassis.
- Pairs with four 4-ohm speaker channels rated at 150 W each.
- Pairs with one 2-ohm subwoofer channel rated at 600 W.
- Mounts where a 16 x 9 x 4 in amplifier footprint is allocated.
In a marine audio-system build, the unit can power four 4-ohm full-range channels and one 2-ohm subwoofer channel from one IP67-rated Class D chassis, reducing the need for separate speaker and subwoofer amplifiers.
