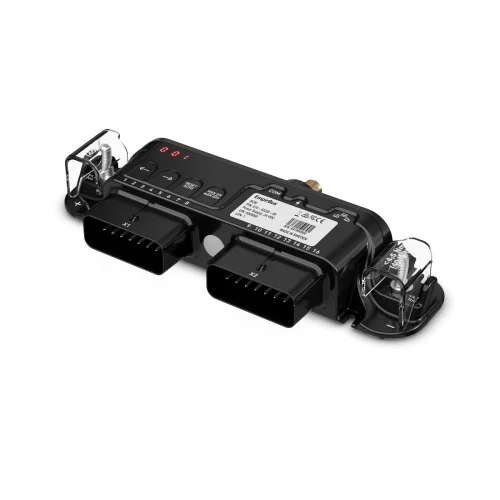

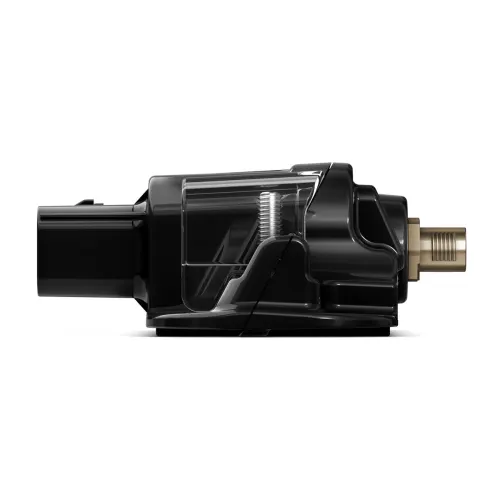

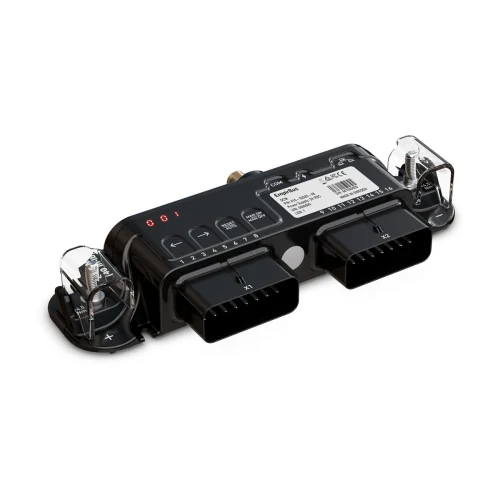

EmpirBus™ NXT DCM
$1,599.99
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
Description
An EmpirBus digital switching system comprises one or more compact digital DCMs. The DCM supports multiple circuits that are customized to meet the exact needs of the equipment being controlled. Each DCM connects to the existing NMEA 2000® network backbone, enabling it to communicate with the other DCMs and Garmin MFDs via a web display unit on the Garmin Marine Network.
Additional information
| Dimensions | 9.1" x 4.2" x 1.5" (230 x 106 x 38 mm) |
|---|---|
| Weight | 0.4 kg |
| Ambient temperature | -20° C to +55° C |
| Enclosure | Ingress Protection, IP65 |
| Regulation comp | ABYC, RoHS, CE, RCM |
| High side | 4 channels, 18 A (optional) |
| Low side | 16 channels, 0.5 A (optional) |
| 12 V power peak/average | 170 mA/1 mA |
| 24 V power peak/average | 340 mA/2 mA |
| Weak signal low side/high side | 4 mA |
| Current drive | 50 mA |
| Volt | 0–16/0–32 V, +/-1% |
| Current | 4–20 mA, +/-1% |
| Resistance | 0–1500 ohm, +/-5% |
| Max current | 100 A |
| Min power consumption | 40 mA/1.5 mA (power save mode) |
| Supply voltage 12 V model | 9-16 Vdc |
| Supply voltage 24 V model | 9-32 Vdc |
| NMEA 2000 | micro 5-pin M12 Male |
| Channels | Molex MX150L 16 circuits |
| Power supply | M6 bolt |
| Antenna | SMA Female |
| Brand | Garmin |
General
| Dimensions | 9.1" x 4.2" x 1.5" (230 x 106 x 38 mm) |
|---|---|
| Weight | 0.4 kg |
| Ambient temperature | -20° C to +55° C |
| Enclosure | Ingress Protection, IP65 |
| Regulation comp | ABYC, RoHS, CE, RCM |
| High side | 4 channels, 18 A (optional) |
| High side | 12 channels, 10 A (optional) |
| Low side | 16 channels, 0.5 A (optional) |
| 12 V power peak/average | 170 mA/1 mA |
| 24 V power peak/average | 340 mA/2 mA |
| Weak signal low side/high side | 4 mA |
| Current drive | 50 mA |
| Volt | 0–16/0–32 V, +/-1% |
| Current | 4–20 mA, +/-1% |
| Resistance | 0–1500 ohm, +/-5% |
| Max current | 100 A |
| Min power consumption | 40 mA/1.5 mA (power save mode) |
| Supply voltage 12 V model | 9-16 Vdc |
| Supply voltage 24 V model | 9-32 Vdc |
| NMEA 2000 | micro 5-pin M12 Male |
| Channels | Molex MX150L 16 circuits |
| Power supply | M6 bolt |
| Antenna | SMA Female |
