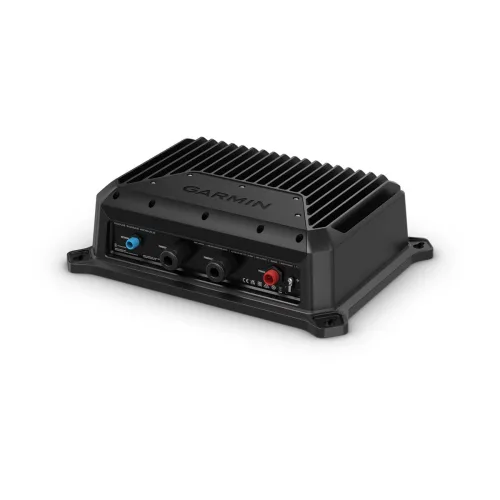

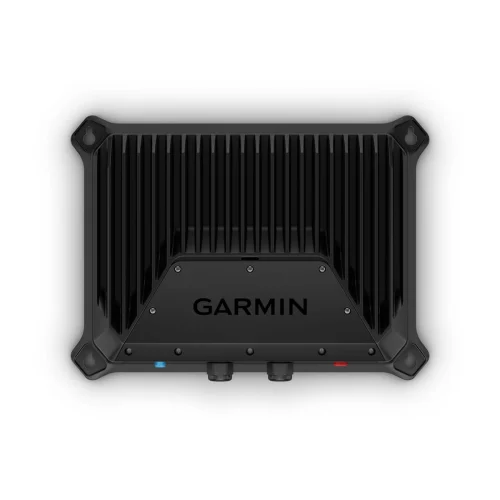

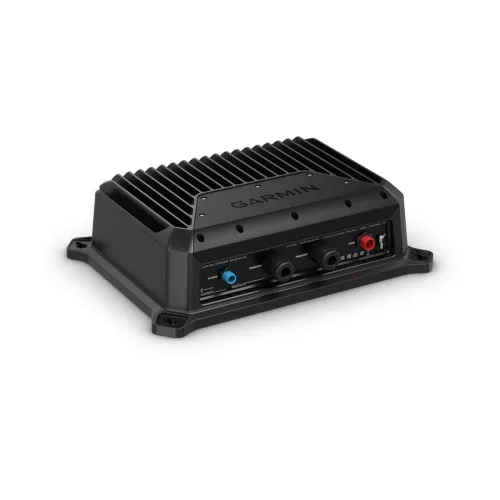

GSD™ 28 Sonar Module
$2,999.99
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
THE DEPTHS. REVEALED.
See what’s down there. Catch what’s down there. Take your sport fishing to extreme depths with a high-powered sonar module with the features you need to improve your chances for success.

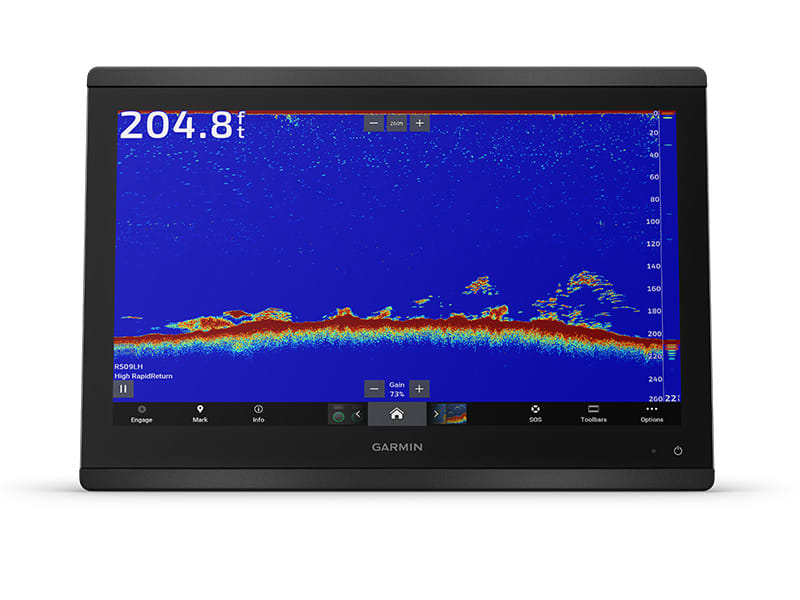

GARMIN RAPIDRETURN SONAR
This high-performance technology provides our fastest deep-water scrolling sonar with 2 to 6 times the ping rate1 of our GSD™ 26 sonar. This allows captains to make fast and informed decisions based on what is below their boats.
XCHIRP TECHNOLOGY
Easily distinguish bait from sport fish with our clearest traditional sonar fish arches and excellent target separation. Get smooth bottom returns and precise targeting at extreme depths1.
HEAVE COMPENSATION
When the seas get rough, use the MSC™ 10 external satellite compass (sold separately) to greatly reduce wave and swell from your sonar returns.
TRANSDUCER SUPPORT
This sonar module is compatible with a wide range of Garmin and AIRMAR® transducers (sold separately).
RETROFITTING
The GSD 28 module is ideal for retrofitting to boats with existing bare wire transducers.
SONAR POWER
GSD 28 can output 300 watts to 3 kW at extreme depths1.
CHIRP SUPPORT
The module supports dual-channel CHIRP (up to 3 kW per channel).
OPERATION RANGE
The GSD 28 sonar module can operate in the 33 to 250 kHz frequency range1.
BUILT TO LAST
GSD 28 is rated for harsh marine environments and water-resistance with an IPX7 rating.
Additional information
| Case material | Fully gasketed, aluminum housing, steel back panel, plastic access panel |
|---|---|
| Physical dimensions | 10.7" × 14.4" × 4.0" (27.06 cm × 36.66 cm × 10.1 cm) |
| Weight | 14.13 lbs (6.4 kg) |
| Water rating | IPX7 |
| Temperature range | From 5° F to 158° F (from -15° C to 70° C) |
| Power input | 10-32 V |
| Power usage | 120 W maximum |
| Fuse | 15A |
| Frequencies supported | Dual channel CHIRP: 33-250 kHz (transducer dependent) |
| Transmit power | 300W–3kW rms (transducer dependent) |
| Maximum depth | 10,000 ft (3,048 m) |
| xCHIRP | yes |
| Rapid return | yes |
| Garmin Marine Network Ports | 1 (Garmin BlueNet) |
| Sonar connections | 2 bare wire |
| Brand | Garmin |
General
| Case material | Fully gasketed, aluminum housing, steel back panel, plastic access panel |
|---|---|
| Physical dimensions | 10.7" × 14.4" × 4.0" (27.06 cm × 36.66 cm × 10.1 cm) |
| Weight | 14.13 lbs (6.4 kg) |
| Water rating | IPX7 |
| Temperature range | From 5° F to 158° F (from -15° C to 70° C) |
| Power input | 10-32 V |
| Power usage | 120 W maximum |
| Fuse | 15A |
| Frequencies supported | Dual channel CHIRP: 33-250 kHz (transducer dependent) |
| Transmit power | 300W–3kW rms (transducer dependent) |
| Maximum depth | 10,000 ft (3,048 m) |
| xCHIRP | yes |
| Rapid return | yes |
| Garmin Marine Network Ports | 1 (Garmin BlueNet) |
| Sonar connections | 2 bare wire |
- GSD 28
- Power cable
- Garmin BlueNet™ marine network cable (6 ft) with legacy network adapter
- Field installable adapter kit for the Garmin BlueNet network
- Mounting hardware
- Documentation
