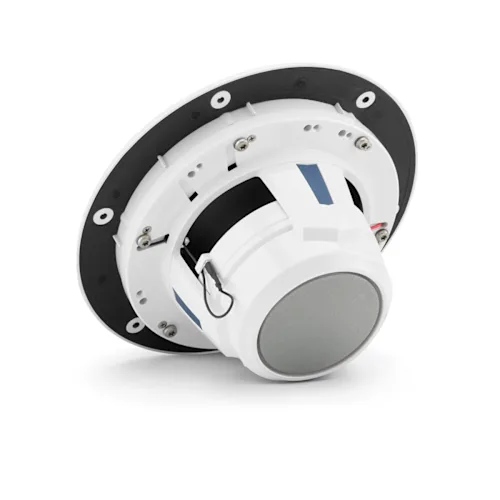

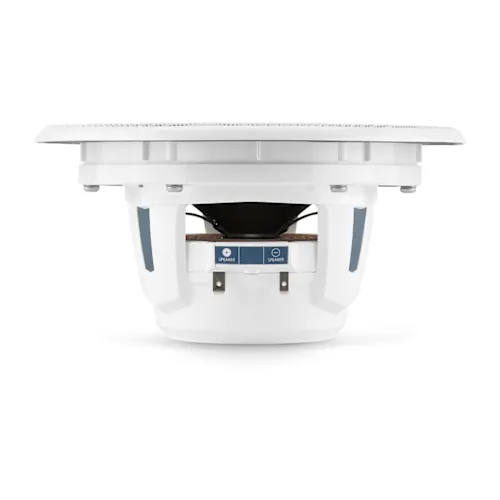

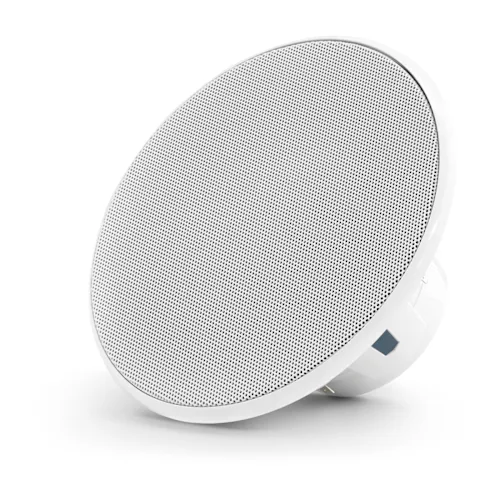

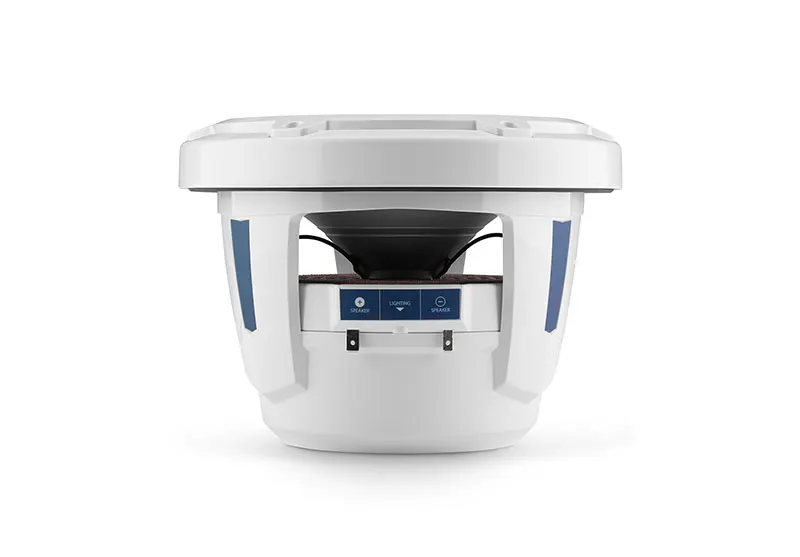

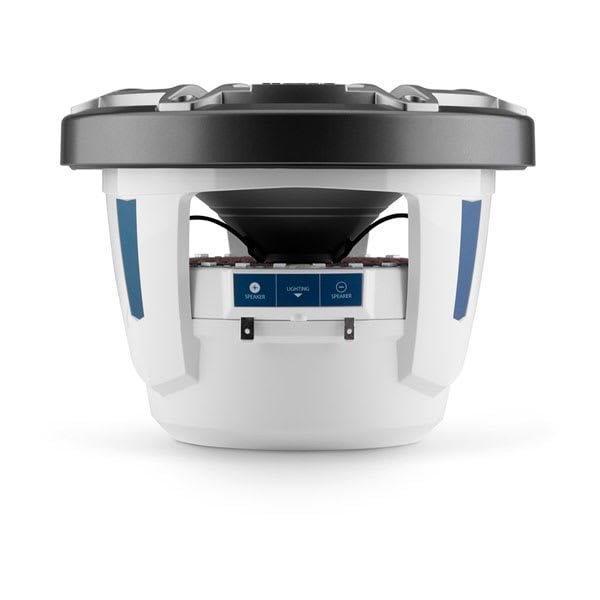

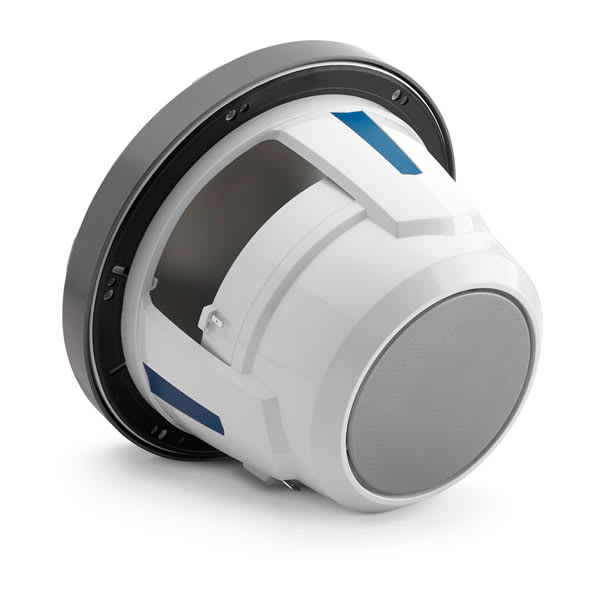

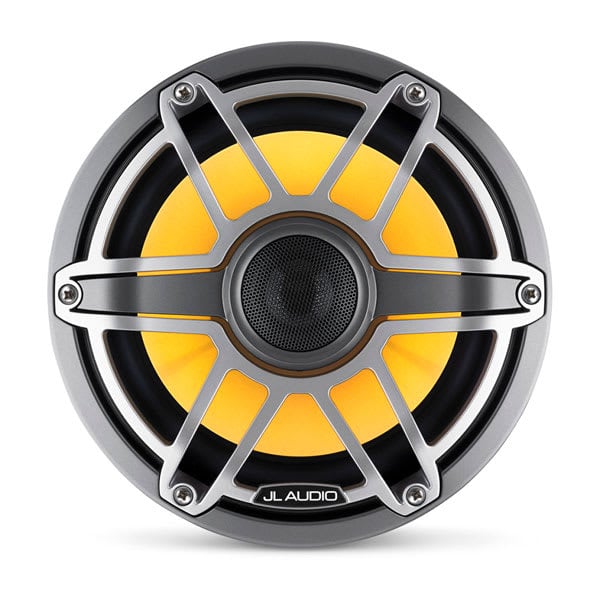

JL Audio® M6 Marine Speakers
$374.99
M6 enclosed tower speakers provide crystal clear sound and powerful mid-bass that deliver clear sound beyond the boat.
Did you like this product? Add to favorites now and follow the product.
We are experts and sell products with a 15% discount with installation. Contact us via any method you prefer, such as WhatsApp, email, or SMS, or ask the team to sell you the equipment. Start Live Chat
- Description
- Additional information
- Reviews (0)
- Specifications
- In the Box
- More Offers
- Store Policies
- Inquiries
Description
MAXIMUM PERFORMANCE
Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

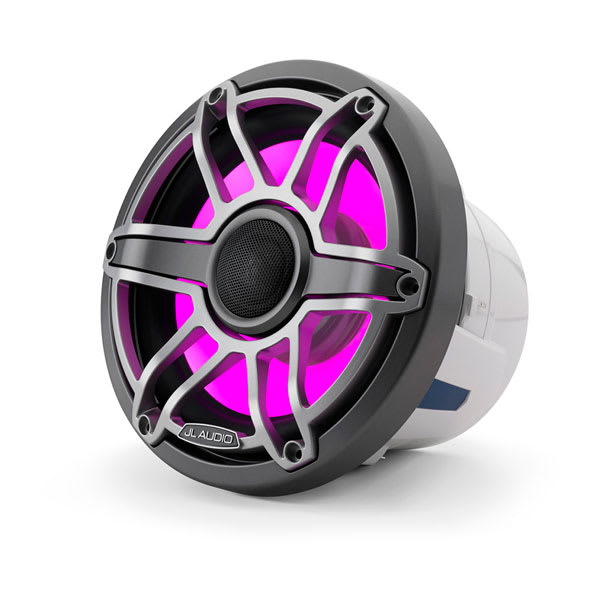

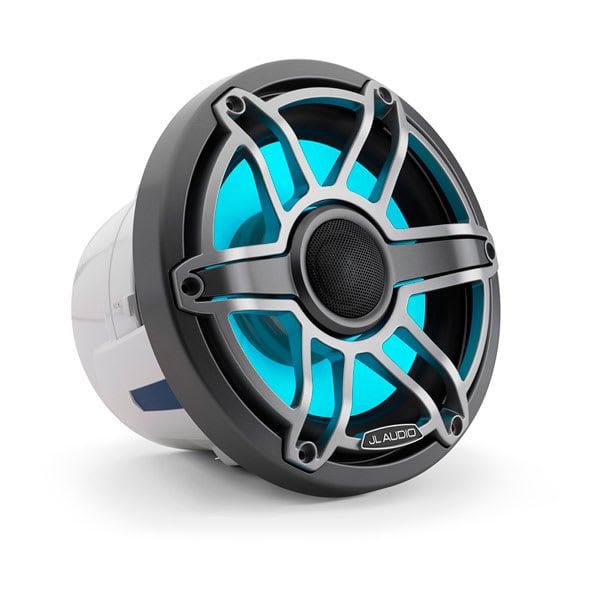

TRANSFLECTIVE™ RGB LED LIGHTING
Get a patented system on sport models for smooth lighting with no hot spots or reflections.
DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
MATCHING SILK DOME TWEETERS
Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
ADVANCED FILTER NETWORKS
Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.
POWERFULLY EFFICIENT
M6 marine speakers are designed to benefit from operation with quality amplification.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
Additional information
| Warranty | 3 years |
|---|---|
| Sizes | 6.5"/7.7"/8.8" |
| Color | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 6.5" (Classic/Sport): 6.90" (175 mm)6.5" (Luxe): 8.34" (212 mm)7.7" (Classic/Sport): 7.70" (196 mm)7.7" (Luxe): 9.13" (232 mm)8.8" (Classic/Sport): 8.80" (224 mm)8.8" (Luxe): 10.25" (260 mm) |
| Physical dimensions (Depth) | 6.5" (Classic): 3.94" (100 mm)6.5" (Sport/Luxe): 4.02" (102 mm)7.7" (Classic): 4.35" (110 mm)7.7" (Sport/Luxe): 4.4" (112 mm)8.8" (Classic): 6.37" (162 mm)8.8" (Sport/Luxe): 6.45" (164 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W7.7": 100 W8.8": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB7.7": 91.0 dB8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz7.7": 45 Hz-25 kHz8.8": 38 Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 25-150 W/Channel7.7": 40-200 W/Channel8.8": 50-250 W/Channel |
| LED lighting | yes – Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5"/7.7": 324 mA8.8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5": 0.8" (20 mm)7.7": 1" (25 mm)8.8": 1.25" (32 mm) |
| Speaker connections | Spade Connectors |
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
| Mounting depth clearance | 6.5" (Classic/Sport): 3" (76 mm)6.5" (Luxe): 3.87" (98 mm)7.7" (Classic/Sport): 3.32" (84 mm)7.7" (Luxe): 4.26" (108 mm)8.8" (Classic/Sport): 5" (127 mm)8.8" (Luxe): 6.30" (160 mm) |
| Frontal grille protrusion | 6.5": 0.94" (24 mm)6.5" (Sport): 1.02" (26 mm)6.5" (Luxe): 0.37" (9 mm)7.7": 1.03" (26 mm)7.7" (Sport): 1.08" (27 mm)7.7" (Luxe): 0.38" (10 mm)8.8": 1.37" (35 mm)8.8" (Sport): 1.45" (37 mm)8.8" (Luxe): 0.48" (12 mm) |
| Mounting hole | 6.5" (Classic/Sport): 5"-5.25" (127-133 mm)6.5" (Luxe): 6.75" (172 mm)7.7" (Classic/Sport): 6.25" (159 mm)7.7" (Luxe): 7.50" (191 mm)8.8" (Classic/Sport): 7.375" (187 mm)8.8" (Luxe): 8.625" (219 mm) |
| Bolt hole circle | 6.5" (Classic/Sport): 6.13" (156 mm)6.5" (Luxe): 7.39" (188 mm)7.7" (Classic/Sport): 6.92" (176 mm)7.7" (Luxe): 8.18" (208 mm)8.8" (Classic/Sport): 7.97" (202 mm)8.8" (Luxe): 9.27" (235 mm) |
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
| Brand | Garmin |
General
| Warranty | 3 years |
|---|---|
| Sizes | 6.5"/7.7"/8.8" |
| Color | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 6.5" (Classic/Sport): 6.90" (175 mm)6.5" (Luxe): 8.34" (212 mm)7.7" (Classic/Sport): 7.70" (196 mm)7.7" (Luxe): 9.13" (232 mm)8.8" (Classic/Sport): 8.80" (224 mm)8.8" (Luxe): 10.25" (260 mm) |
| Physical dimensions (Depth) | 6.5" (Classic): 3.94" (100 mm)6.5" (Sport/Luxe): 4.02" (102 mm)7.7" (Classic): 4.35" (110 mm)7.7" (Sport/Luxe): 4.4" (112 mm)8.8" (Classic): 6.37" (162 mm)8.8" (Sport/Luxe): 6.45" (164 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W7.7": 100 W8.8": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB7.7": 91.0 dB8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz7.7": 45 Hz-25 kHz8.8": 38 Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 25-150 W/Channel7.7": 40-200 W/Channel8.8": 50-250 W/Channel |
| LED lighting | yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5"/7.7": 324 mA8.8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5": 0.8" (20 mm)7.7": 1" (25 mm)8.8": 1.25" (32 mm) |
| Speaker connections | Spade Connectors |
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
| Mounting depth clearance | 6.5" (Classic/Sport): 3" (76 mm)6.5" (Luxe): 3.87" (98 mm)7.7" (Classic/Sport): 3.32" (84 mm)7.7" (Luxe): 4.26" (108 mm)8.8" (Classic/Sport): 5" (127 mm)8.8" (Luxe): 6.30" (160 mm) |
| Frontal grille protrusion | 6.5": 0.94" (24 mm)6.5" (Sport): 1.02" (26 mm)6.5" (Luxe): 0.37" (9 mm)7.7": 1.03" (26 mm)7.7" (Sport): 1.08" (27 mm)7.7" (Luxe): 0.38" (10 mm)8.8": 1.37" (35 mm)8.8" (Sport): 1.45" (37 mm)8.8" (Luxe): 0.48" (12 mm) |
| Mounting hole | 6.5" (Classic/Sport): 5"-5.25" (127-133 mm)6.5" (Luxe): 6.75" (172 mm)7.7" (Classic/Sport): 6.25" (159 mm)7.7" (Luxe): 7.50" (191 mm)8.8" (Classic/Sport): 7.375" (187 mm)8.8" (Luxe): 8.625" (219 mm) |
| Bolt hole circle | 6.5" (Classic/Sport): 6.13" (156 mm)6.5" (Luxe): 7.39" (188 mm)7.7" (Classic/Sport): 6.92" (176 mm)7.7" (Luxe): 8.18" (208 mm)8.8" (Classic/Sport): 7.97" (202 mm)8.8" (Luxe): 9.27" (235 mm) |
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
- Two marine coaxial loudspeakers*
- Two grilles*
- Twelve stainless steel mounting screws*
- Twelve stainless steel screws washers*
- Grille removal tool (Luxe models only)
- Mounting template
- Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
