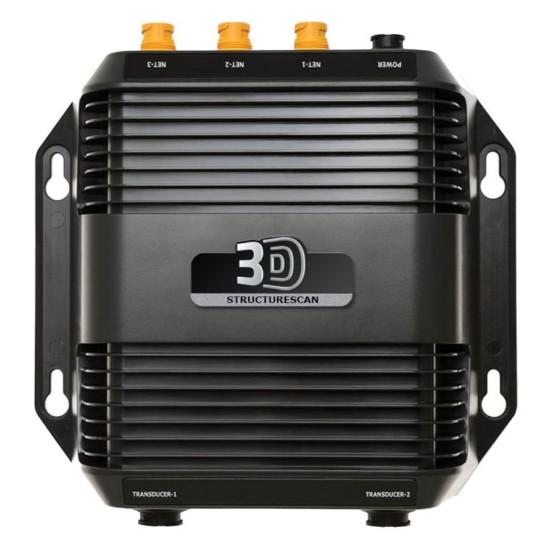

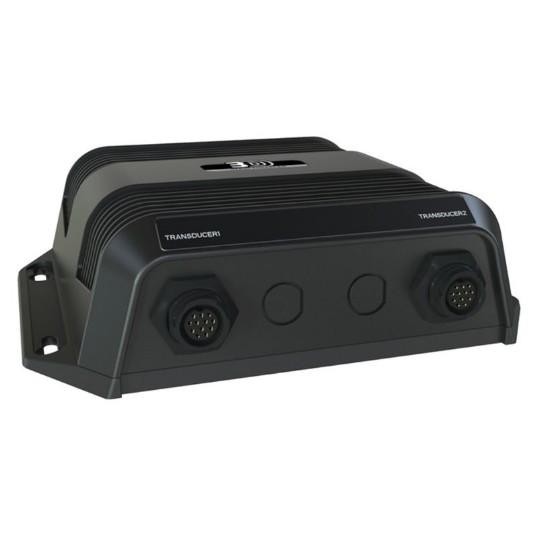

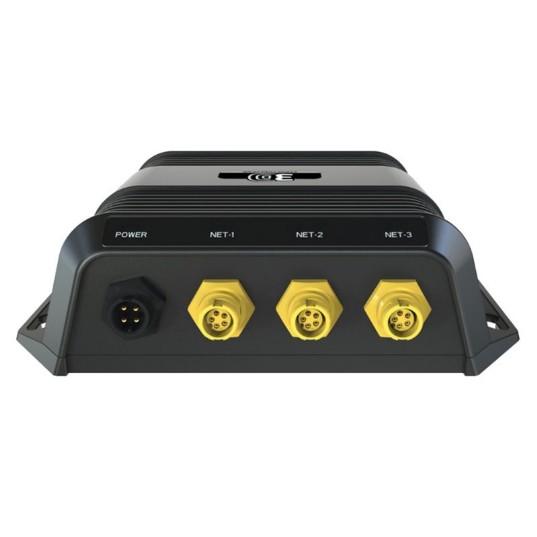

LOWRANCE STRUCTURESCAN 3D MODULE
The LOWRANCE STRUCTURESCAN 3D MODULE is a high-resolution sonar imaging device measuring 10 x 13 x 6 inches and weighing 3.31 lbs. This module provides detailed underwater views for marine navigation and fishing applications, designed for installation on fishing boats, yachts, and other recreational vessels.
Compatibility & Applications
- Mounts on fishing boats, yachts, and center consoles.
- Pairs with Lowrance HDS displays for improved sonar imaging.
- Wires to 12V DC power systems for reliable operation.
- Replaces Lowrance StructureScan HD modules without additional modifications.
- Integrates with NMEA 2000 networks for comprehensive data sharing.
- Compatible with vessels ranging from 18 to 30 ft in length.
The module enhances underwater imaging capabilities, providing fishermen and navigators with detailed views of submerged structures. It serves as a drop-in replacement for older Lowrance sonar systems, ensuring compatibility with existing setups while maintaining high-resolution output.
From Our Pompano Beach Team
StructureScan 3D turns side and down imaging into a three-dimensional view of structure and bait — a serious edge on wrecks and ledges. It needs the right module, transducer and network setup; see fishing & sonar for the pieces.
Frequently Asked Questions
What do I need to run StructureScan 3D?
A compatible Lowrance display, this module (000-12397-001) and the matching 3D transducer. We can put the full parts list together for your boat.
Do you install and network sonar modules?
Yes — our shop in Pompano Beach, FL offers professional marine electronics installation, including wiring, networking and sea trial.
Is this a genuine Lowrance module?
Every unit is brand new, 100% genuine, in the original packaging, and covered by the full manufacturer warranty. Questions before ordering? Talk to our team.
