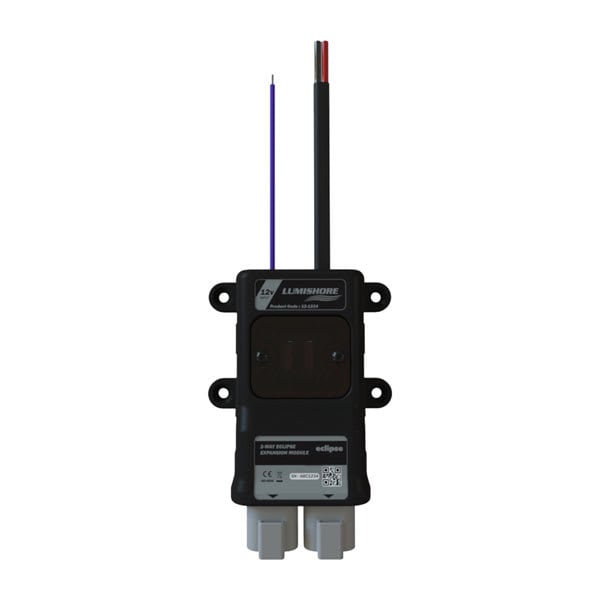

Add additional lighting zones to your ECLIPSE lighting system with 1-zone and 2-zone expansion modules1. Compatible with your ECLIPSE Command Center, these modules increase system capacity to a total of 6 independent lighting zones.
Price range: $249.99 through $399.99
Payment Methods:
Add additional lighting zones to your ECLIPSE lighting system with 1-zone and 2-zone expansion modules1. Compatible with your ECLIPSE Command Center, these modules increase system capacity to a total of 6 independent lighting zones.
1Requires the ECLIPSE Command Center for operation.Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
| Weight | 1.00 lbs |
|---|---|
| Dimensions (L × W × H) | 4.00 × 4.00 × 3.00 in |
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
| Lumi Zones | 1, 2 |
| Warranty | 3 years |
| Number of lights per Eclipse Comand Center/Expansion module zone | Dependent on connected lights |
| Electrical installation | Plug and play/hard-wired |
| Operating voltage | 12 V |
| Operating voltage range | 10-15 VDC |
| Current consumption 12 V (max) | 0.04 A (device only) |
| Average power draw | <0.5 W (device only) |
| Construction | Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating | IP67 |
| Momentary switch | yes (via ECLIPSE Command Center) |
| Compatible MFD | yes (via ECLIPSE Command Center) |
| Smart device | yes (via ECLIPSE Command Center) |
| Dimensions (width) | 3.32″ (84 mm) |
| Dimensions (depth) | 4.55″ (116 mm) |
| Dimensions (height) | 1.53″ (39 mm) |
| Mechanical installation | Screw fixings |
Add additional lighting zones to your ECLIPSE lighting system with 1-zone and 2-zone expansion modules1. Compatible with your ECLIPSE Command Center, these modules increase system capacity to a total of 6 independent lighting zones.
1Requires the ECLIPSE Command Center for operation.Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
| Weight | 1.00 lbs |
|---|---|
| Dimensions (L × W × H) | 4.00 × 4.00 × 3.00 in |
Overview
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
| Lumi Zones | 1, 2 |
| Warranty | 3 years |
| Number of lights per Eclipse Comand Center/Expansion module zone | Dependent on connected lights |
| Electrical installation | Plug and play/hard-wired |
| Operating voltage | 12 V |
| Operating voltage range | 10-15 VDC |
| Current consumption 12 V (max) | 0.04 A (device only) |
| Average power draw | <0.5 W (device only) |
| Construction | Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating | IP67 |
| Momentary switch | yes (via ECLIPSE Command Center) |
| Compatible MFD | yes (via ECLIPSE Command Center) |
| Smart device | yes (via ECLIPSE Command Center) |
| Dimensions (width) | 3.32″ (84 mm) |
| Dimensions (depth) | 4.55″ (116 mm) |
| Dimensions (height) | 1.53″ (39 mm) |
| Mechanical installation | Screw fixings |
