Lumishore® LUX SNL180

SKU: N/A

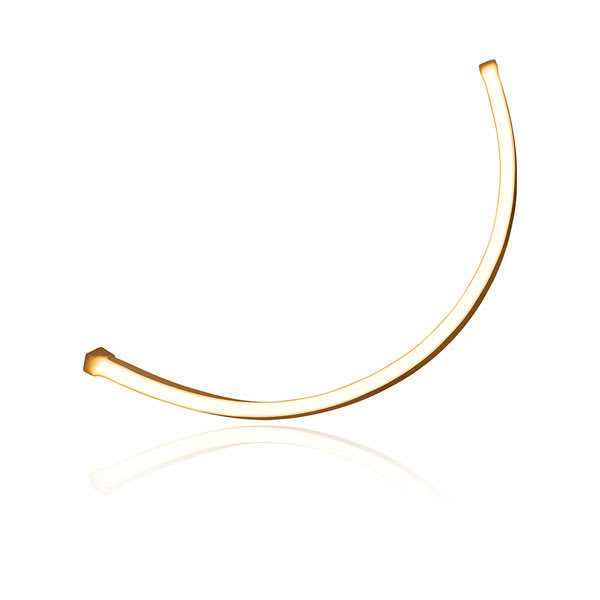

LUX SNL180 are high-density neon-style LED boat lights designed for hugs and curved surfaces, perfect for gunwales, cabin headliners and T-tops.

Price range: $69.99 through $269.99

Version

Clear

Compare

Add to wishlist

16 People watching this product now!

Payment Methods:

Description
Additional information

FLEXIBLE, FULL-COLOR DOT-FREE MARINE LIGHTING

Bring seamless, dot-free lighting on board with these flexible, high-density neon-style LEDs. Their bend-flex design hugs curved surfaces — perfect for gunwales, cabin headliners and T-tops.

FULL-COLOR CRGBW LIGHTING

60 CRGBW PER METER

PLUG-AND-PLAY INSTALLATION

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1

IP67-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

1The momentary switch control requires the Strip Driver; the MFD, Lumishore display and smart device control require the EOS-LUX Command CenterEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	3.00 lbs
Dimensions (L × W × H)	12.00 × 0.83 × 0.56 in

Weight	3 lbs
Dimensions	12 × 0.83 × 0.56 in
Version	1,000 mm, 2,000 mm, 3,000 mm, 300 mm, 600 mm
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	60 CRGBW/m
Length of strip per strip driver	up to 10 m total
Electrical installation	Plug and play
Operating voltage	10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)	0.6 A/m (via Strip Driver)
Current consumption 24 V (max)	0.36 A/m (via Strip Driver)
Average power draw	8.7 W/m
Construction	Fully encapsulated and potted with spot-free diffuser
Water and dust rating	IP67
Momentary switch	yes (via Strip Driver)
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Dimensions (depth)	0.83″ (21 mm)
Dimensions (height)	0.56″ (14.15 mm)
Mechanical installation	Stainless steel screw clips (supplied)

Description

FLEXIBLE, FULL-COLOR DOT-FREE MARINE LIGHTING

Bring seamless, dot-free lighting on board with these flexible, high-density neon-style LEDs. Their bend-flex design hugs curved surfaces — perfect for gunwales, cabin headliners and T-tops.

FULL-COLOR CRGBW LIGHTING

60 CRGBW PER METER

PLUG-AND-PLAY INSTALLATION

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1

IP67-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

1The momentary switch control requires the Strip Driver; the MFD, Lumishore display and smart device control require the EOS-LUX Command CenterEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Technical Specifications

Weight	3.00 lbs
Dimensions (L × W × H)	12.00 × 0.83 × 0.56 in

Specification

Overview

Weight	3 lbs
Dimensions	12 × 0.83 × 0.56 in
Version	1,000 mm, 2,000 mm, 3,000 mm, 300 mm, 600 mm
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	60 CRGBW/m
Length of strip per strip driver	up to 10 m total
Electrical installation	Plug and play
Operating voltage	10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)	0.6 A/m (via Strip Driver)
Current consumption 24 V (max)	0.36 A/m (via Strip Driver)
Average power draw	8.7 W/m
Construction	Fully encapsulated and potted with spot-free diffuser
Water and dust rating	IP67
Momentary switch	yes (via Strip Driver)
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display	yes (via EOS-LUX Command Center)
Dimensions (depth)	0.83″ (21 mm)
Dimensions (height)	0.56″ (14.15 mm)
Mechanical installation	Stainless steel screw clips (supplied)
