Xantrex 115W Solar Max Flex Panel

Part Number: 784-9115-01 · Category: Solar Systems

Xantrex

Original price was: $499.00.Current price is: $440.91.

Out of stock

★★★★★ 5.0 rated on Google (21 reviews) · ✓ 30-day returns · ✓ Secure payment by Stripe

We also install it: professional marine electrical installation in South Florida.

Shipping & sourcing
  • Ships from Pompano Beach, FL, United States.
  • Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
  • Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
  • Product images and specifications are supplied by the manufacturer.
Shipping & returns policy
0 People watching this product now!

Payment Methods:

Product details

BrandXantrex
Part Number784-9115-01
CategorySolar Systems
AvailabilitySpecial order
Ships fromPompano Beach, FL · lead time confirmed when you order
InstallationAvailable in Pompano Beach and Broward County
Weight11.00 lbs

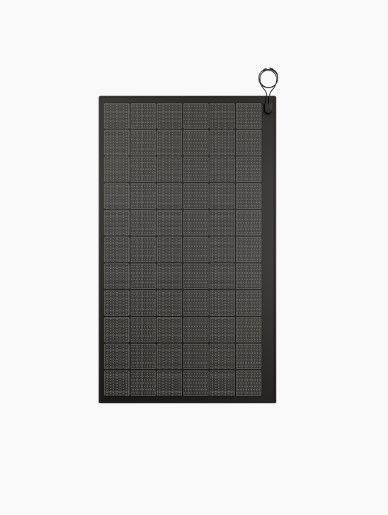

115W Solar Max Flex Panel

This Xantrex Solar Max panel features solar panels with mesh grid technology that provides superior durability and performance benefits. With approximately 2000 contact points per cell, this mesh grid technology allows the panel to flex up to 180 degrees without impacting power output. Subject to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested 50 times more durable than a standard flexible panel.

It is also designed with a highly protective top layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), which allows for better light transmittance, corrosion resistance, stain resistance, weather resistance, and overall superior durability over a wide temperature range compared to non-ETFE semi-flexible-panels.

Features:

  • Premium peel-and-stick flexible solar panel
  • Harvest up to 20% more energy during the day in low-light or shaded conditions compared to a standard solar panel

Applications:

  • Recreational vehicles
  • Heavy-duty trucks
  • Marine
  • Work trucks
  • Specialty vehicles

Specifications

Electrical Specifications:

  • Maximum Power-Pmax (W) at STC*: 115
  • Maximum Power Voltage-Vmp (V): 22.1
  • Maximum Power Current-Imp (A): 5.2
  • Open Circuit Voltage-Voc (V): 27.4
  • Short-Circuit Current-Isc (A): 5.6
  • Maximum System Voltage (V): 600

Mechanical Specifications:

  • Cell Type: Mono-Crystalline PERC
  • Top-Layer: ETFE
  • Junction Box: IP67 Rated
  • Connector: MC4 – type
  • Number of Cells: 42 (6 x 7)
  • Weight: 6.0 lb (2.7 kg)
  • Dimensions (L x W x D): 37.5 x 28.4 x 0.08 in (953 x 722 x 2 mm)

Temperature Specifications:

  • Operating Temperature: -40–85 degrees C
  • Temperature Coefficients of Pmax: -0.39%/ degrees C
  • Temperature Coefficients of Voc: -0.30%/ degrees C
  • Temperature Coefficients of Isc: +0.06%/ degrees C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Weight11.00 lbs
Dimensions42.00 × 29.00 × 2.00 in
MFG#784-9115-01
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Xantrex 115W Solar Max Flex Panel”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

Description

115W Solar Max Flex Panel

This Xantrex Solar Max panel features solar panels with mesh grid technology that provides superior durability and performance benefits. With approximately 2000 contact points per cell, this mesh grid technology allows the panel to flex up to 180 degrees without impacting power output. Subject to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested 50 times more durable than a standard flexible panel.

It is also designed with a highly protective top layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), which allows for better light transmittance, corrosion resistance, stain resistance, weather resistance, and overall superior durability over a wide temperature range compared to non-ETFE semi-flexible-panels.

Features:

  • Premium peel-and-stick flexible solar panel
  • Harvest up to 20% more energy during the day in low-light or shaded conditions compared to a standard solar panel

Applications:

  • Recreational vehicles
  • Heavy-duty trucks
  • Marine
  • Work trucks
  • Specialty vehicles

Specifications

Electrical Specifications:

  • Maximum Power-Pmax (W) at STC*: 115
  • Maximum Power Voltage-Vmp (V): 22.1
  • Maximum Power Current-Imp (A): 5.2
  • Open Circuit Voltage-Voc (V): 27.4
  • Short-Circuit Current-Isc (A): 5.6
  • Maximum System Voltage (V): 600

Mechanical Specifications:

  • Cell Type: Mono-Crystalline PERC
  • Top-Layer: ETFE
  • Junction Box: IP67 Rated
  • Connector: MC4 – type
  • Number of Cells: 42 (6 x 7)
  • Weight: 6.0 lb (2.7 kg)
  • Dimensions (L x W x D): 37.5 x 28.4 x 0.08 in (953 x 722 x 2 mm)

Temperature Specifications:

  • Operating Temperature: -40–85 degrees C
  • Temperature Coefficients of Pmax: -0.39%/ degrees C
  • Temperature Coefficients of Voc: -0.30%/ degrees C
  • Temperature Coefficients of Isc: +0.06%/ degrees C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
