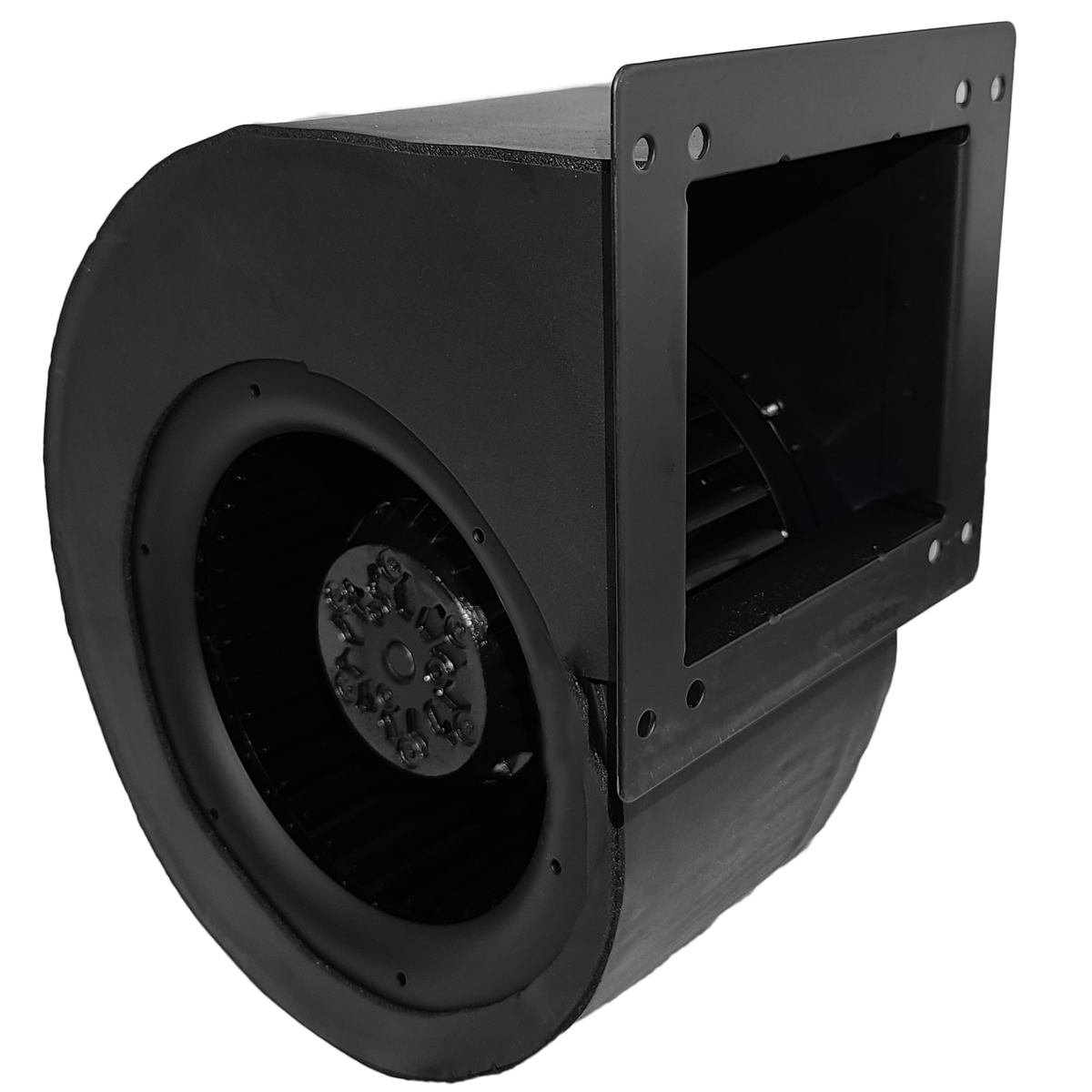

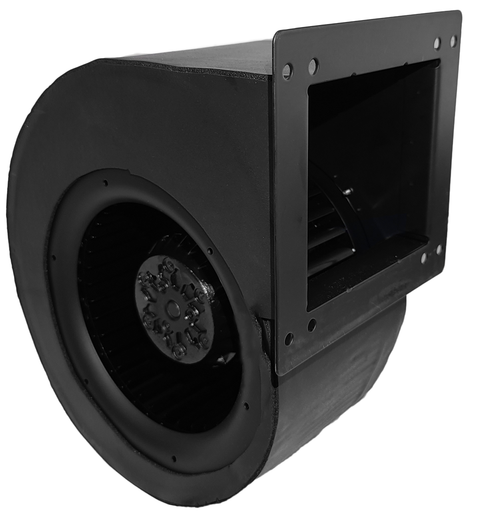

CTM Turbo Blower Assembly For Self-Contained Units, 14k to 16k BTU’s – 230V
Works with units from 14,000 to 16,000 BTU’s – 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) units. 90-day warranty.
Blower Connection Diagram
Technical Specifications
| Voltage | 230 V |
| Phase | 1 Ph |
| Frequency | 50/60 Hz |
| Capacitor | 5uf |
| Airflow | 435/458.8 CFM |
| Speed | 1320/1420 RPM |
| Power | 140/188 W |
| Current Max | 0.61/0.82 A |
| Noise | 70 dB |
| Working Temperature | -40 + 65 C |
| Motor Technology | AC |

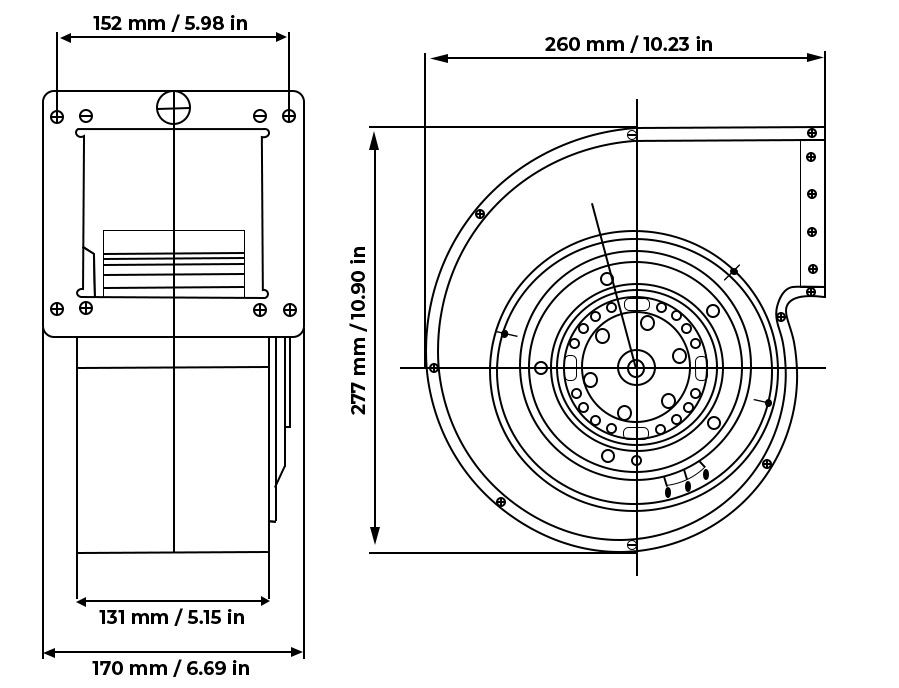

Dimensions
Compatible with the following units
| Model | Part Number |
| CTM CT-16 230V 50/60HZ | 24201C |
| ECD16KZ/1-HV 410A KIT, 220-240 50/60 Hz | 207500017 |
| DTG16-2371-410A 7MR | 205162176 |
| DTU16-2251-410A | 205161160 |
| DTU16-2251-410A 7MR | 205161161 |
| DTU16-2361-410A | 205162160 |
| DTU16-2361-410A 7MR | 205162161 |
| VTD16KZ50-410A 7’AS 7″MR 220V | 205562701 |
| STQ16CK-410A 7″MR 220V 50HZ | 205562751 |
| STX16CK-410A 7″MR 220V 50HZ | 205562756 |
| STQ16C-410A 230V 60HZ | 205563750 |
| STX16C-410A 230V 60HZ | 205563755 |
| VTD16KZ-410A 230V 60HZ | 205563700 |
