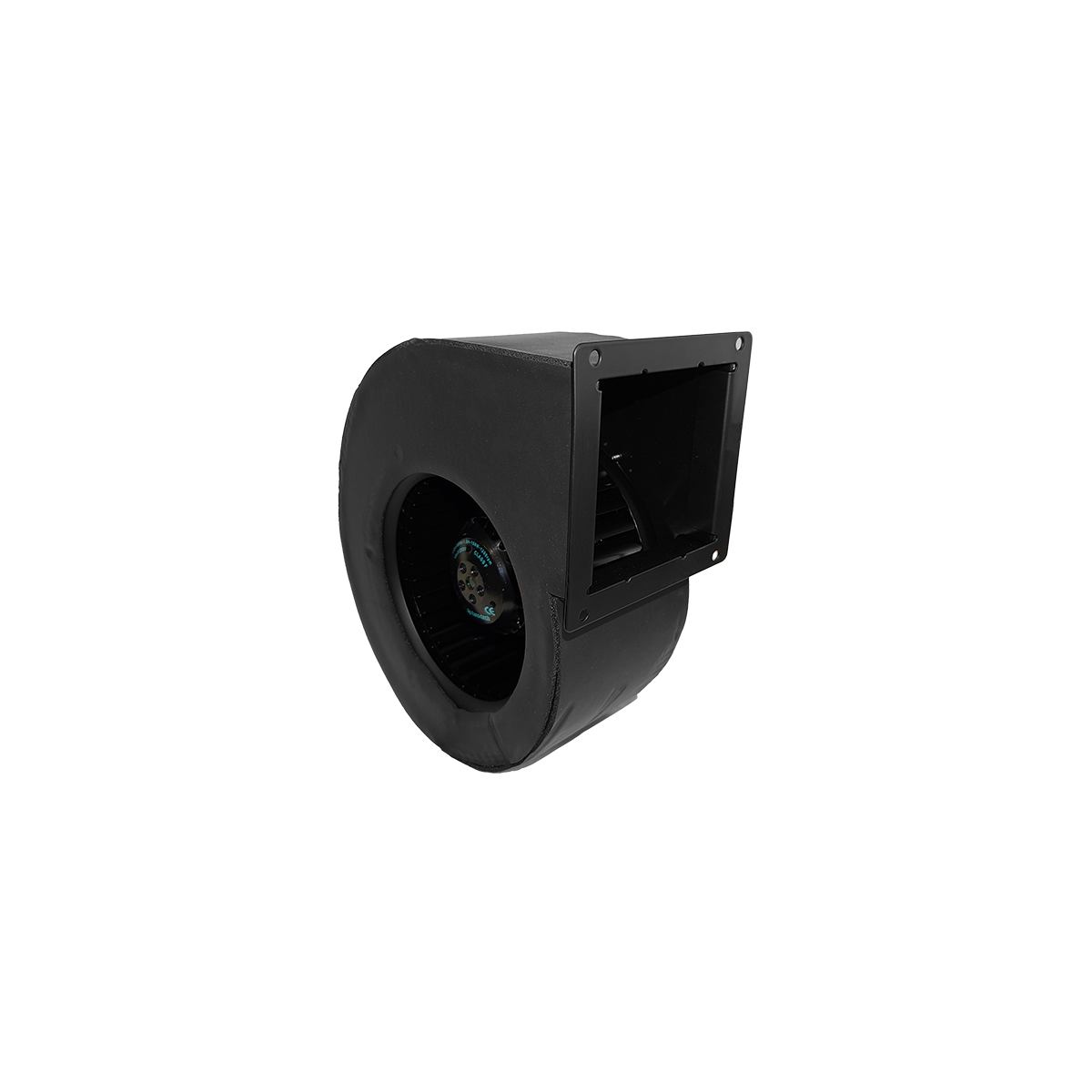

CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) – 6K to 8K BTU’s – 230V

Name: CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) - 6K to 8K BTU's - 230V | Marine Overhauling
Brand: CTM
SKU: 40022B
Price: 335.99 USD
Availability: InStock

SKU: 40022B

Blower assembly for self-contained marine air conditioning units. For 6,000 to 8,000 BTU’s units – 230V. Fits Dometic, CTM, Cruisair, and Marine Air. 40022B

$335.99

We sell it. We install it.

Professional marine A/C installation and replacement available in South Florida. Free quotes, and boat pickup and transport for qualifying boats and projects.

Get an Installation Quote Call +1 (786) 277-2596

Shipping & sourcing

Ships from Pompano Beach, FL, United States.
Handling: 1 business day. Delivery: 1 to 7 business days within the United States.
Shipping is calculated at checkout by the carrier. Orders of $199 or more ship free.
Product images and specifications are supplied by the manufacturer.

Shipping & returns policy

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description
Additional information

CTM Turbo Blower Assembly For Self-Contained Units, 6k to 8k BTU’s – 230V

Works with units from 6,000 to 8,000 BTU’s – 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units. 90-day warranty.

Blower Connection Diagram

Technical Specifications 40022B

Voltage	230 V
Phase	1 Ph
Frequency	50/60 Hz
Capacitor	2uf
Airflow	347 CFM
Speed	2050/2000 RPM
Power	121/153 W
Current Max	0.54/0.68 A
Noise	68 dB
Working Temperature	-40 + 65 °C
Motor Technology	AC

CTM

Weight	15 lbs
Dimensions	20 × 12 × 10 in

Description

CTM Turbo Blower Assembly For Self-Contained Units, 6k to 8k BTU’s – 230V

Works with units from 6,000 to 8,000 BTU’s – 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units. 90-day warranty.

Blower Connection Diagram

Technical Specifications 40022B

Voltage	230 V
Phase	1 Ph
Frequency	50/60 Hz
Capacitor	2uf
Airflow	347 CFM
Speed	2050/2000 RPM
Power	121/153 W
Current Max	0.54/0.68 A
Noise	68 dB
Working Temperature	-40 + 65 °C
Motor Technology	AC
