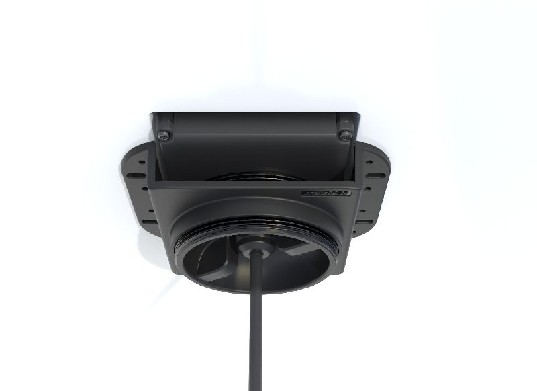

SCANSTRUT Waterproof Wireless Charger – Hidden 3 Coil 15W 12/24V Wireless Battery Charger
The SCANSTRUT Waterproof Wireless Charger – Hidden 3 Coil 15W 12/24V is a wireless battery charger with 15 W charging and a 3-coil hidden charger layout. It provides wireless device charging for marine and boating installations where a concealed charging surface is required.
Technical Specifications
| Charging output | 15 W |
|---|---|
| Input voltage range | 10-30 V DC |
| System voltage | 12/24 V |
| Charging layout | Hidden 3 coil |
| Weight | 0.48 lb (0.218 kg) |
| Dimensions | 6 x 5 x 3 in (152.4 x 127 x 76.2 mm) |
| Category | Wireless Battery Chargers |
Compatibility & Applications
- Fits marine and boating wireless charging installations.

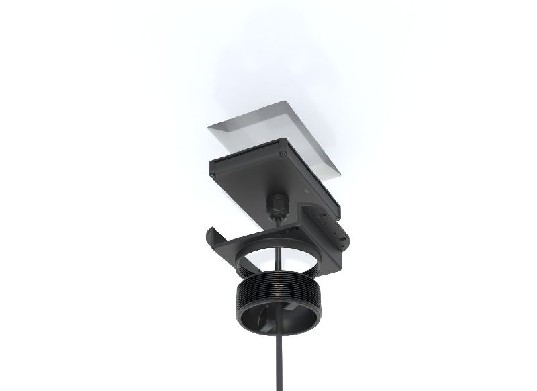

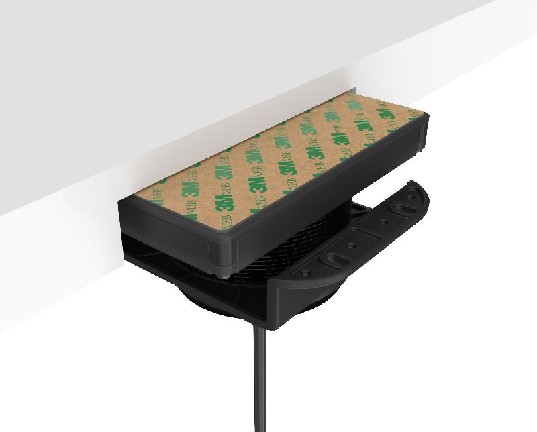

- Mounts as a hidden 3-coil charger assembly.
- Pairs with 12 V and 24 V DC electrical systems.
- Wires to a 10-30 V DC input range.
- Uses a rear installation light for power testing.
In a helm or cabin charging station, the unit can be wired to the vessel DC supply and checked using the rear installation light. Its differentiator is the hidden 3-coil charging format paired with 10-30 V DC input compatibility.
